Chapter 2 DimensionsMS300
12
2-3 Frame C
C1: VFD4A8MS11ANSAA; VFD4A8MS11ENSAA; VFD7A5MS21ANSAA; VFD7A5MS21ENSAA;
VFD11AMS21ANSAA; VFD11AMS21ENSAA; VFD11AMS23ANSAA; VFD11AMS23ENSAA;
VFD17AMS23ANSAA; VFD17AMS23ENSAA; VFD5A5MS43ANSAA; VFD5A5MS43ENSAA;
VFD7A3MS43ANSAA; VFD7A3MS43ENSAA; VFD9A0MS43ANSAA; VFD9A0MS43ENSAA;
VFD4A2MS53ANSAA; VFD6A6MS53ANSAA
C2: VFD7A5MS21AFSAA; VFD11AMS21AFSAA; VFD5A5MS43AFSAA; VFD7A3MS43AFSAA;
VFD9A0MS43AFSAA

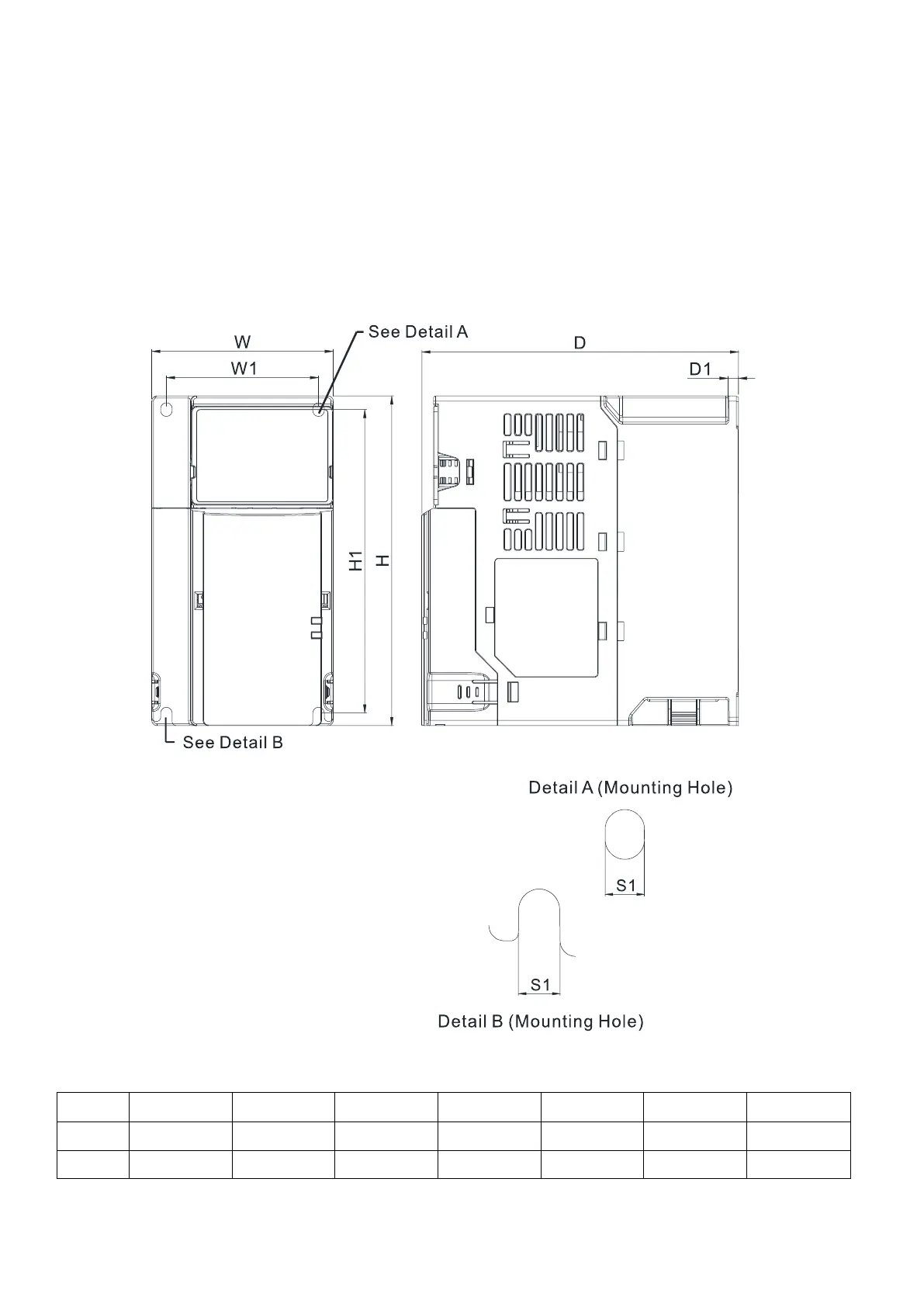

Figure 2-3
Unit: mm (inch)
Frame
W
H
D
W1
H1
D1
S1
C1
87.0 (3.43)
157.0 (6.18)
152.0 (5.98)
73.0 (2.87)
144.5 (5.69)
5.0 (0.20)
5.5 (0.22)
C2
87.0 (3.43)
157.0 (6.18)
179.0 (7.05)
73.0 (2.87)
144.5 (5.69)
5.0 (0.20)
5.5 (0.22)
Table 2-3
