Chapter 4 Parameters
VFD-EL-W
4-75
※

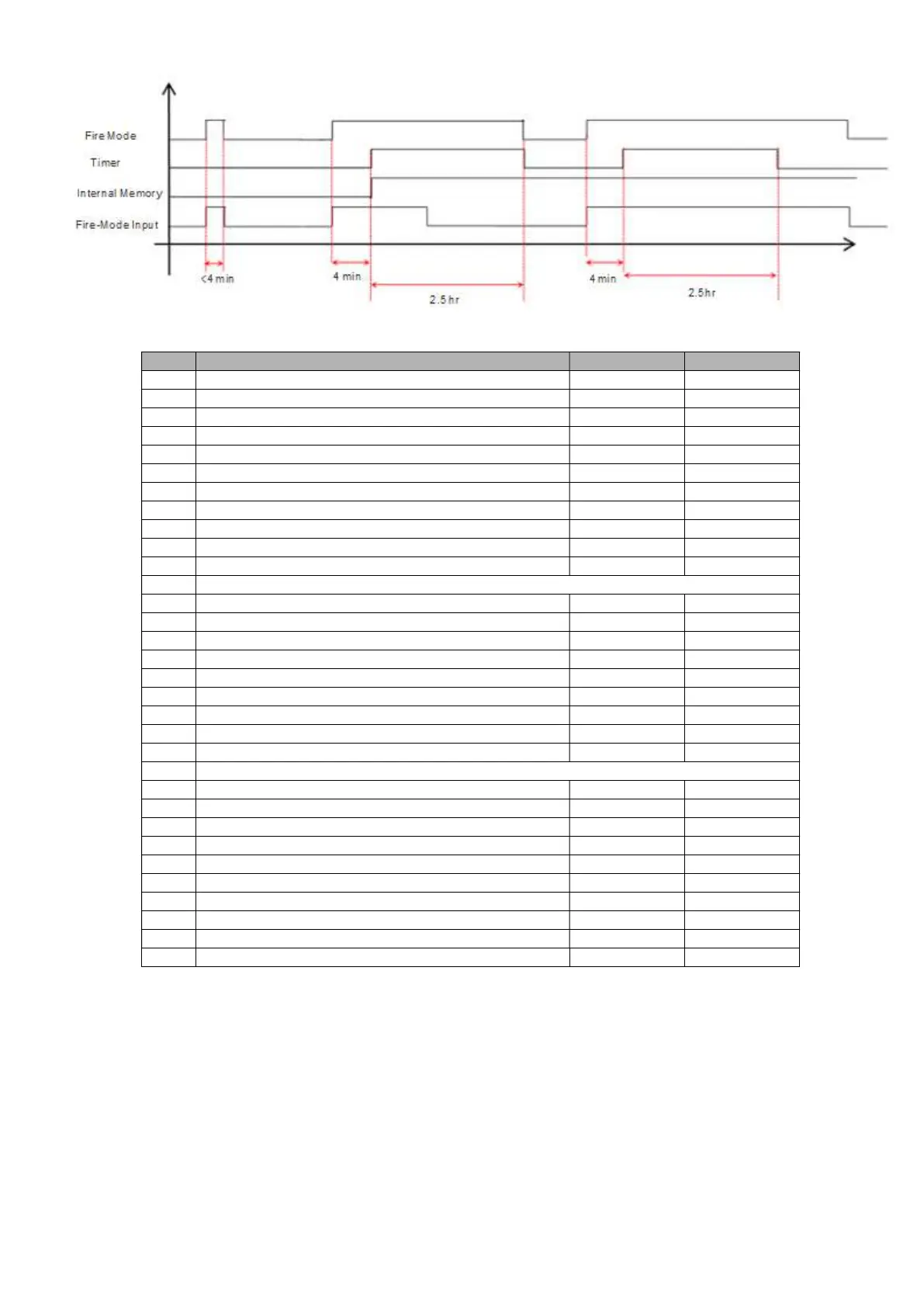

Fault code list of normal mode and fire mode:
No. Fault Name Normal Mode
Fire Mode
1 Over current (oc) V V
2 Over voltage (ov) V V
3 Over heat 1 (oH1) V No detection
4 Over heat 2 (oH2) V No detection
5 Over Load (oL) (150% 1 Min., Drive) V No detection
6 Internal electronic overload trip (oL1) V No detection
7 Motor over load (oL2) V No detection
8 External fault (EF) V V
9 Over current during Acceleration (ocA) V V
10 Over current during Deceleration (ocD) V V
11 Over current during normal speed (ocN) V V
12 Reserved
13 Low voltage (LV) V V
14 Input phase loss (PHL) V V
15 base block (bb) V V
16 Auto acceleration/deceleration failure (cFA) V V
17 Software parameter protection failure (code) V V
18 Internal EE parameter OM cannot write (cF10) V V
19 Internal EE parameter OM cannot read (cF20) V V
20 Hardware NMI (HPF1) V V
21 Hardware OV (HPF2) V V
22 Reserved
23 Hardware OC (HPF4) V V
24 Hardware IU (CF3.0) V V
25 Hardware IV (CF3.1) V V
26 Hardware IW (CF3.2) V V
27 Hardware DC bus (CF3.3) V V
28 Hardware Temperature (CF3.4) V No detection
32 Analog signal Error (AErr) V V
34 Motor overheat parameter protect (PTC) V V
35 Analog feedback error (FBE) V V
36 Deviation error (DEV) V V
