Chapter 3 Keypad and Start-up
VFD-EL-W
3-3

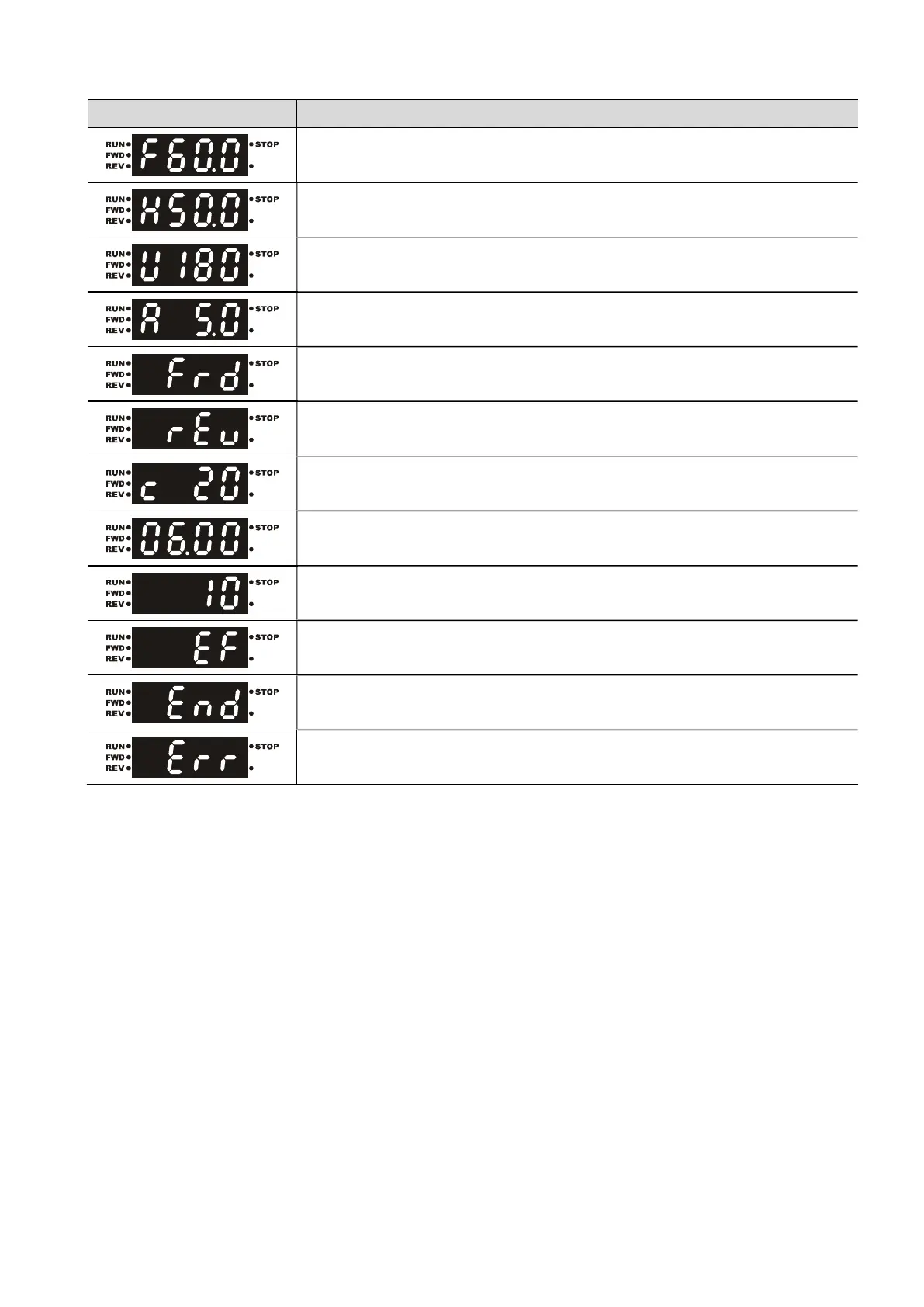

Description of the Displayed Functions
Display Function Description
Displays current setting frequency of the AC motor drive.
Displays the actual output frequency to the motor.
Displays the user-defined unit (where U = F x Pr.00.05)
Displays the loading current.
FWD command.
REV command.
The counter value (C).
Displays the selected parameter.
Displays the actual stored value of the selected parameter.
Displays the external fault.
Displays “End” for approximately one second (as shown in the left figure)
if the data has been accepted and automatically stored in the register.
Displays if the setting data is not accepted or data value exceeds the
allowed range.
