Delta VFD040EL43W User Manual

Chapter 4 Parameters  VFD-EL-W
4-51

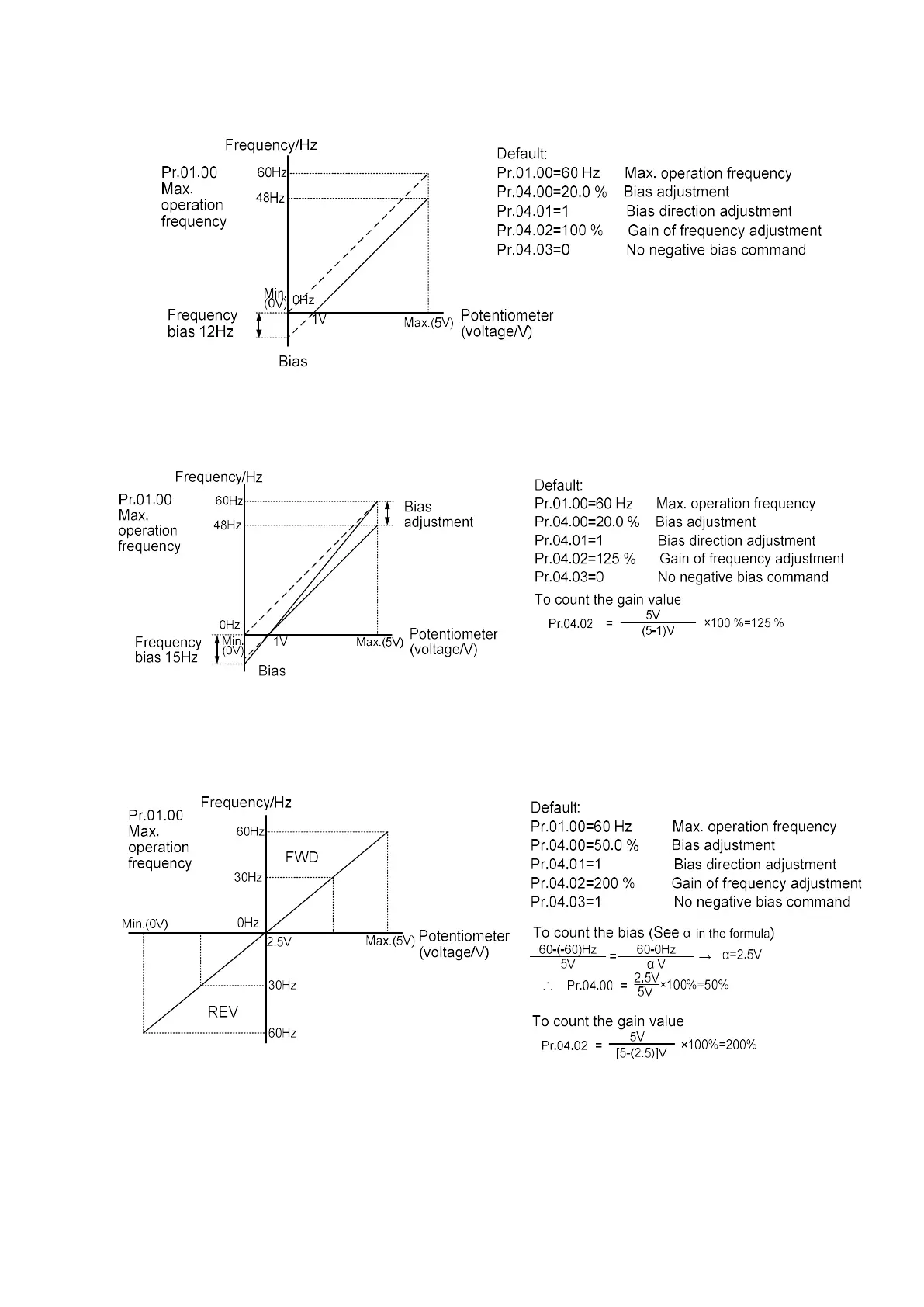

Example 5:
This example uses a 1 V negative bias. In noisy environments, negative bias can be useful to provide a noise
margin (1 V in this example).
Example 6:
This example uses a negative bias to provide a noise margin. In additional, it uses a potentiometer frequency
gain to reach the Maximum Output Frequency.
Example 7:
In this example, you perform the input to run the motor in both the forward and reverse directions. The motor is
idle when the potentiometer position is at its mid-point. Using the settings in this example disables the external
FWD and REV controls.

Delta VFD040EL43W Specifications

General

Brand	Delta
Model	VFD040EL43W
Category	DC Drives
Language	English
