7-12 USB/RS-485 Communication Interface IFD6530
Warning
Please thoroughly read this instruction sheet before installation and putting it into use.
The content of this instruction sheet and the driver file may be revised without prior notice. Please
consult our distributors or download the most updated instruction/driver version.
Introduction
IFD6530 is a convenient RS-485-to-USB converter, which does not require external power-supply and
complex setting process. It supports baud rate from 75 to 115.2 kbps and auto switching direction of data
transmission. In addition, it adopts RJ45 in RS-485 connector for users to wire conveniently. And its tiny dimension,
handy use of plug-and-play and hot-swap provide more conveniences for connecting all DELTA IABG products to
your PC.
Applicable Models: All DELTA IABG products.

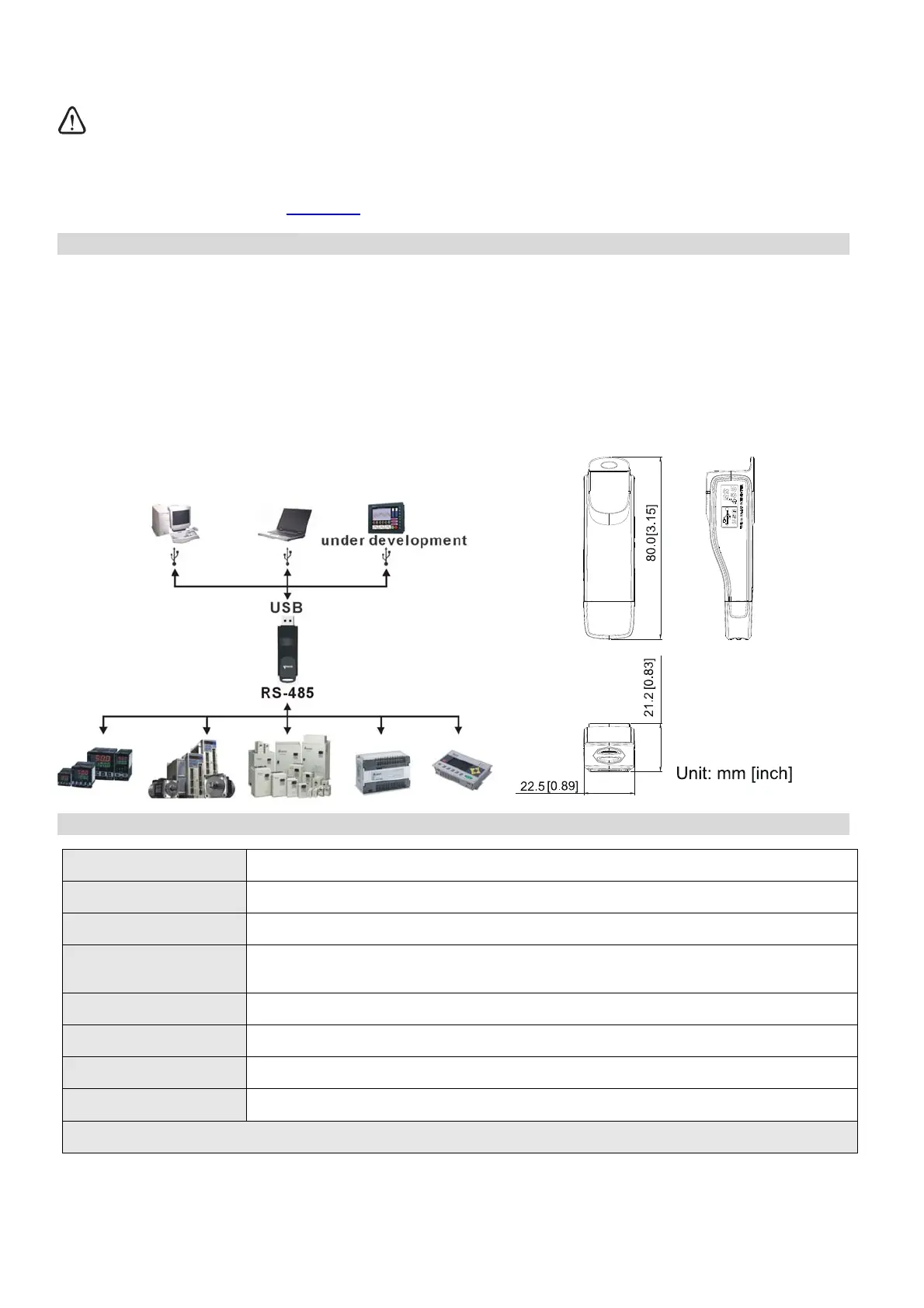

(Application & Dimension)
Specifications
Power supply No external power is needed
Power consumption 1.5 W
Isolated voltage 2,500 V
DC
Baud rate
75 Kbps, 150 Kbps, 300 Kbps, 600 Kbps, 1,200 Kbps, 2,400 Kbps, 4,800 Kbps, 9,600
Kbps, 19,200 Kbps, 38,400 Kbps, 57,600 Kbps, 115,200 Kbps
RS-485 connector RJ45
USB connector A type (plug)
Compatibility Full compliance with USB V2.0 specification
Max. cable length RS-485 Communication Port: 100 m
Support RS-485 half-duplex transmission
Figure 7-84
