Delta VFD185CP43B-21 User Manual

Chapter 09 SpecificationsCP2000
9-10

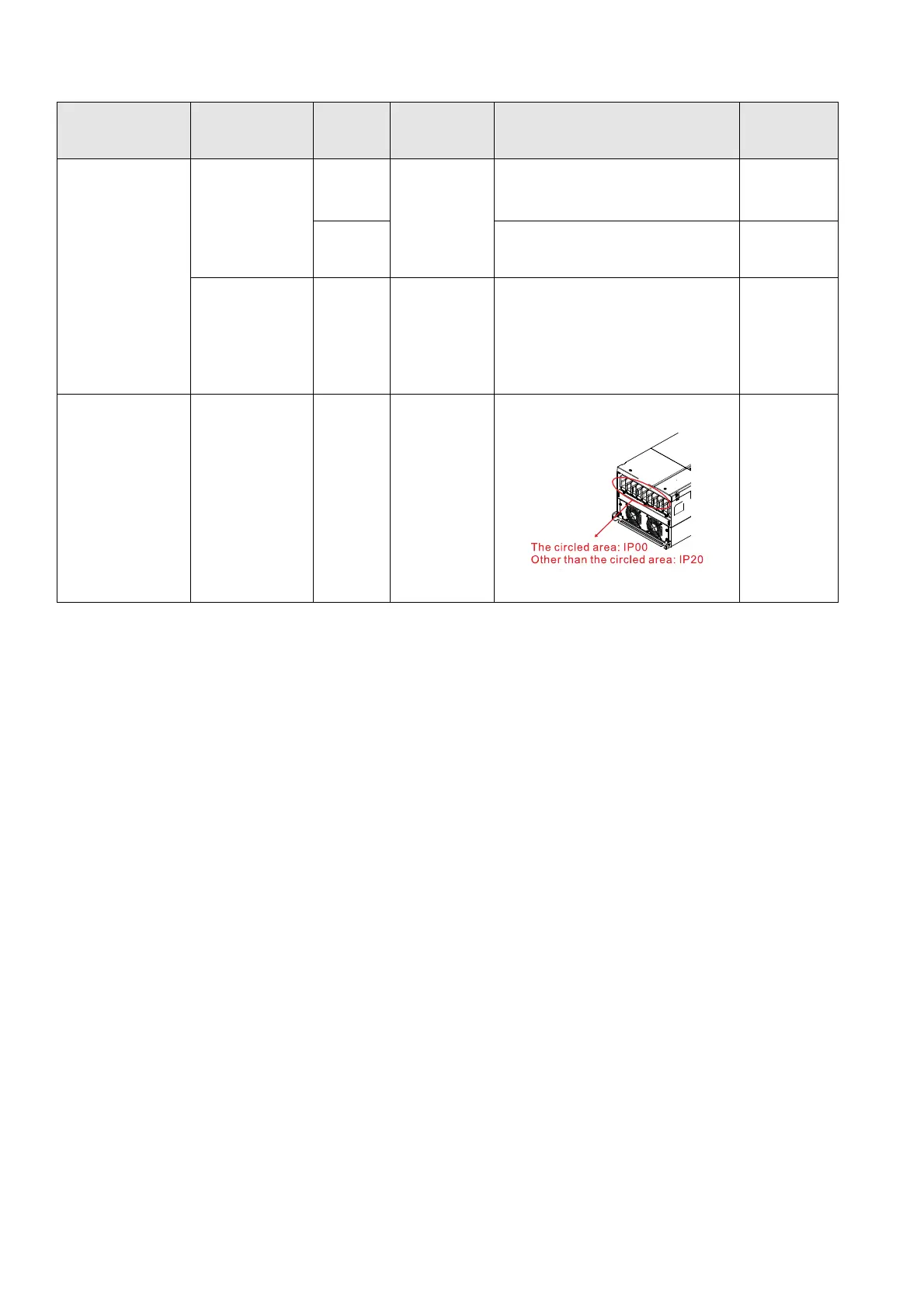

9-6 Specification for Operation Temperature and Protection Level
Model Frame Top cover Conduit box Protection level
Operation
temperature
VFDxxxxCP23x-21
VFDxxxxCP43x-21
VFDxxxxCP4Ex-21
VFDxxxxCP53x-21
VFDxxxxCP63x-xx
Frame A
–C
230V: 0.75
–30 kW
460V: 0.75
–37 kW
575V: 1.5
–15 kW
690V: 18.5
–37 kW
Top cover
removed
Standard
conduit plate
IP20/UL Open Type
230V&460V:
-10°C–50°C *
1
575V&690V:
-10°C~50°C
Standard
with top
cover
IP20/ UL Type1/ NEMA1
-10–40°C
Frame D–H
230V: 37 kW and
above
460V: 45 kW and
above
690V: 45 kW and
above
N/A With conduit box IP20/UL Type1/NEMA1
-10–40°C
VFDxxxxCP23x-00
VFDxxxxCP43x-00
VFDxxxxCP63x-xx
Frame D
–H
230V: 37 kW and
above
460V: 45 kW and
above
690V: 45 kW and
above
N/A No conduit box
IP00
IP20/UL Open Type
Figure 9-1
230V&460V:
-10°C–50°C *
1
690V:
-10°C–50°C
 *
1
When the carrier wave for light duty is 2 kHz, the maximum operation temperature can reach up to 50°C.
