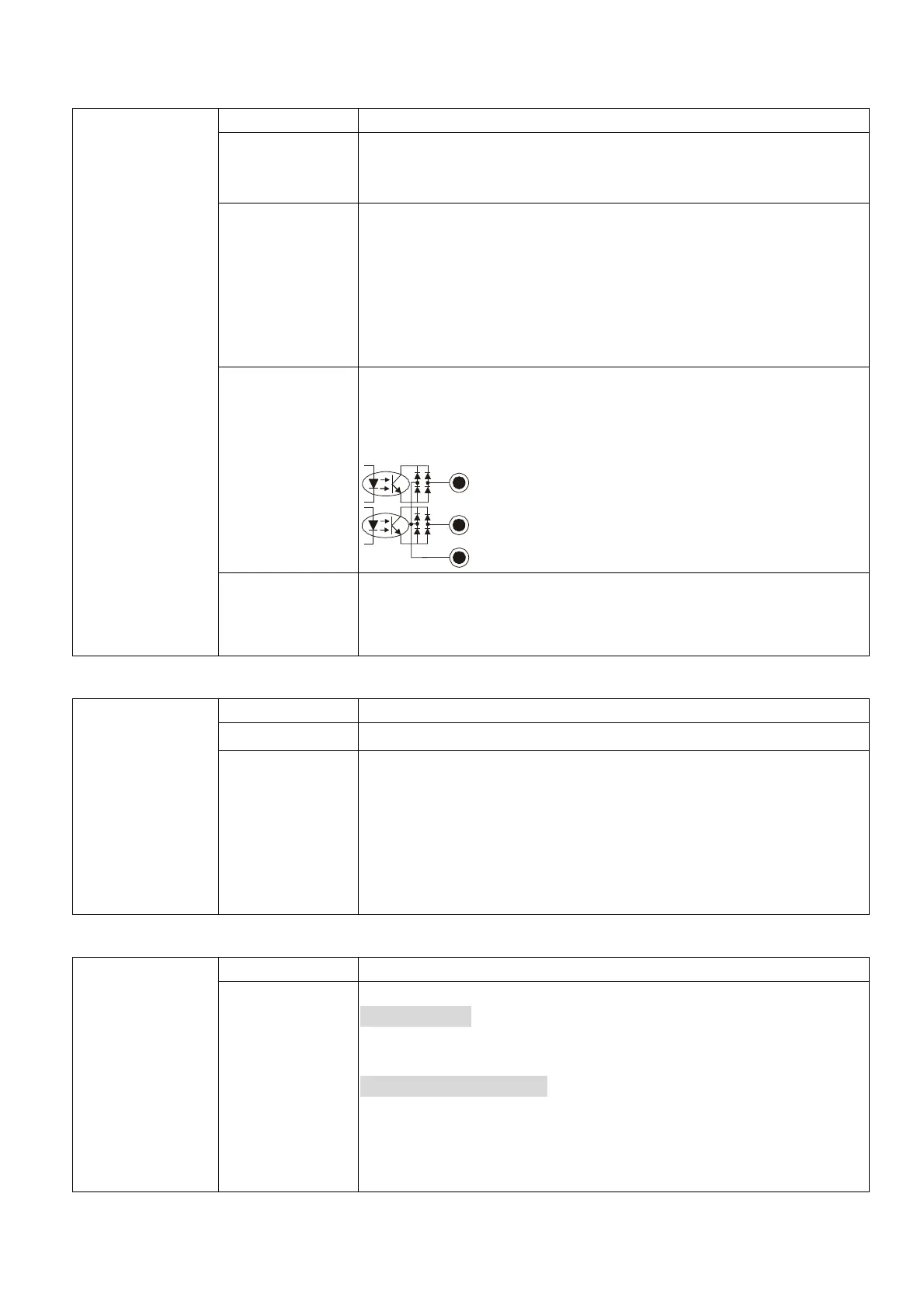

Chapter 8 Option CardsCP2000
8-11
8-2 EMC-D42A -- Extension card for 4-point digital input / 2-point digital input
I/O Extension
Card
Terminals Descriptions
COM
Common for Multi-function input terminals
Select SINK (NPN) / SOURCE (PNP) in J1 jumper / external
power supply
MI10–MI13
Refer to Pr.02-26–Pr.02-29 to program the multi-function inputs
MI10–MI13.
Internal power is applied from terminal E24: +24 V
DC
± 5% 200 mA,
5 W
External power +24 V
DC
: max. voltage 30 V
DC
, min. voltage 19 V
DC
ON: the activation current is 6.0 mA
OFF: leakage current tolerance is 10 μA
MO10–MO11
Multi-function output terminals (photocoupler)
The AC motor drive releases various monitor signals, such as drive
in operation, frequency attained and overload indication, via
transistor (open collector).
MO10
MO11
MXM
MXM
Common for multi-function output terminals MO10, MO11 (photo
coupler)
Max 48 V
DC
50 mA
8-3 EMC-D611A -- Extension card for 6-point digital input (110V
AC
input voltage)
I/O Extension
Card
Terminals Descriptions
AC AC power Common for multi-function input terminal (Neutral)
MI10–MI15
Refer to Pr.02-26–Pr.02-31 for multi-function input selection
Input voltage: 100–130 V
AC
Input frequency: 47–63 Hz
Input impedance: 27 kΩ
Terminal response time:
ON: 10 ms
OFF: 20 ms
8-4 EMC-R6AA
Relay Extension
Card
Terminals Descriptions
RA10–RA15
RC10–RC15
Refer to Pr.02-36–Pr.02-41 for multi-function relay selection
Resistive load:
3 A (N.O.) / 250 V
AC
5 A (N.O.) / 30 V
DC
Inductive load (COS 0.4)
1.2 A (N.O.) / 250 V
AC
2.0 A (N.O.) / 30 V
DC
It is used to output each monitor signal, such as drive is in
operation, frequency attained or overload indication.
