Chapter 7 Optiona
l
Accessorie
s
ME300
7-62
Use
Up
/
Down
keys
to
select
a
parameter

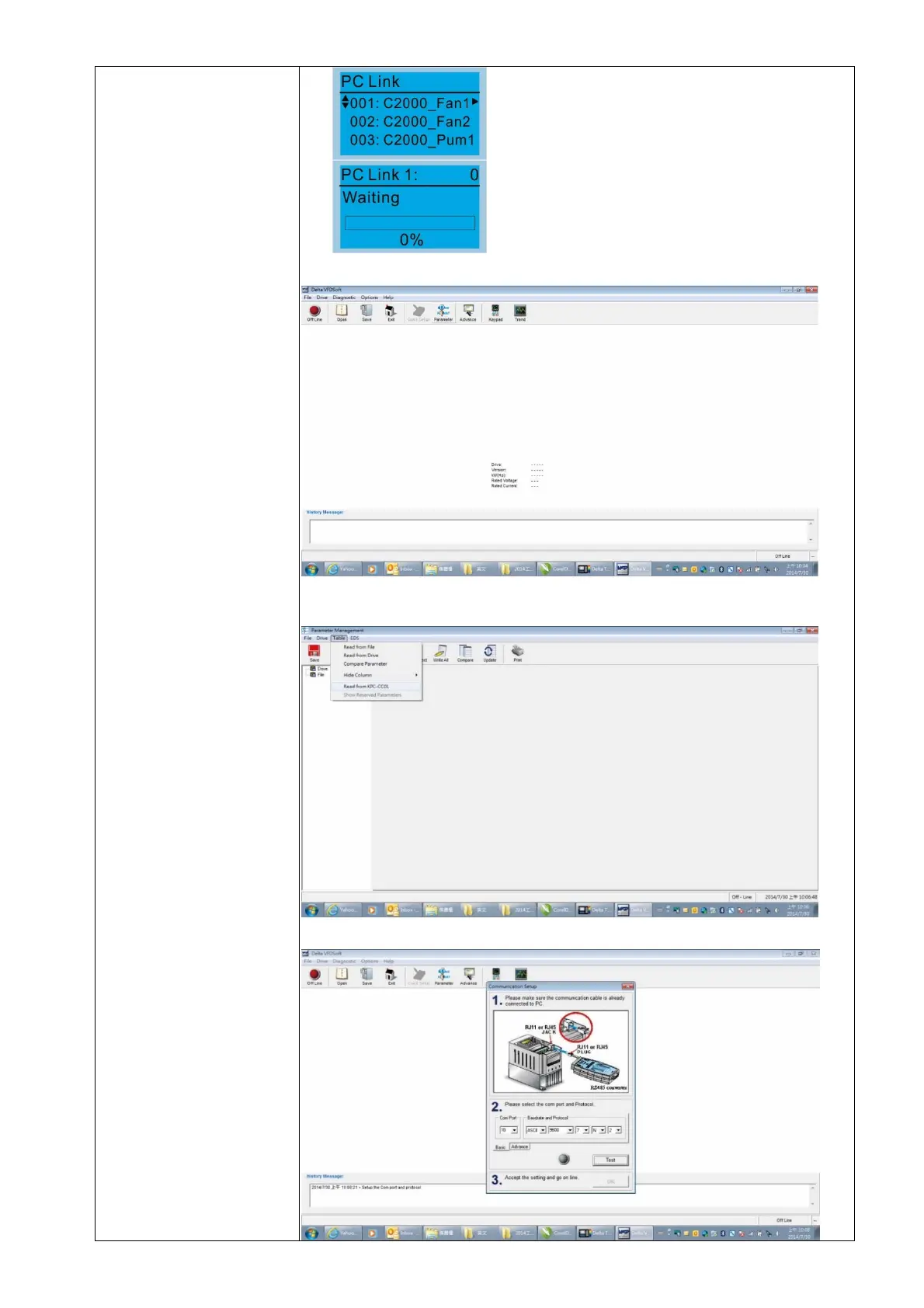

group to upload to VFDSoft.
Press
ENTER
to
display
the
W
aiting
to
connect to PC screen.
Open VFDSoft and click
Parameter
on the toolbar
.
In the Parameter Management, from the
Ta
b
l
e
menu, choose
Read from KP
C-
CC01
.
Choose the correct communication port and cli
ck
OK
.
