Chapter 8 Option CardsMS300

150

The option cards in this chapter are optional accessories. Select the applicable option cards for your

motor drive, or contact your local distributor for suggestions. The option cards can significantly improve

the efficiency of the motor drive. To prevent damage to the motor drive during installation, remove the

digital keypad and the cover before wiring.

8-1 Option Card Installation

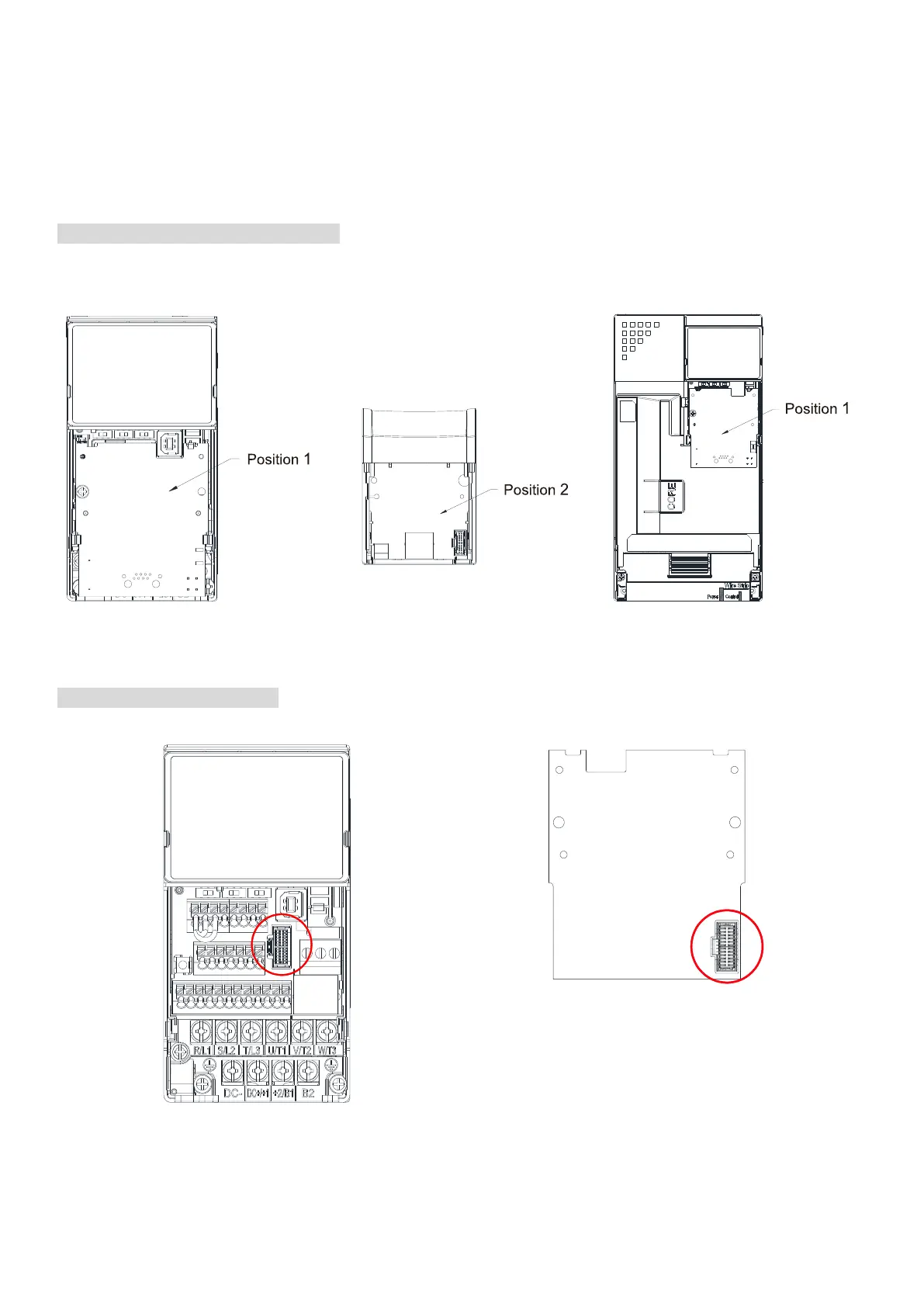

Mounting Position of Option Cards

Frame A–D

Mounting position 1, 2 (Option card mounting box)

Frame E and F

Mounting position 1

(Option card mounting box)

Figure 8-1

Figure 8-2

NOTE: Frame E and F do not support a second option card installation, so there is no mounting position 2.

The Wiring of Option Cards

MS300 control board connector

Option card connector

Figure 8-3

Figure 8-4

NOTE: Do NOT misuse the cables for the communication cards and the cables for the power card. You must

read the descriptions on the cables before wiring.
