8-3 CMM-DN02 – Communication card, DeviceNet
8-3-1 Product Profile

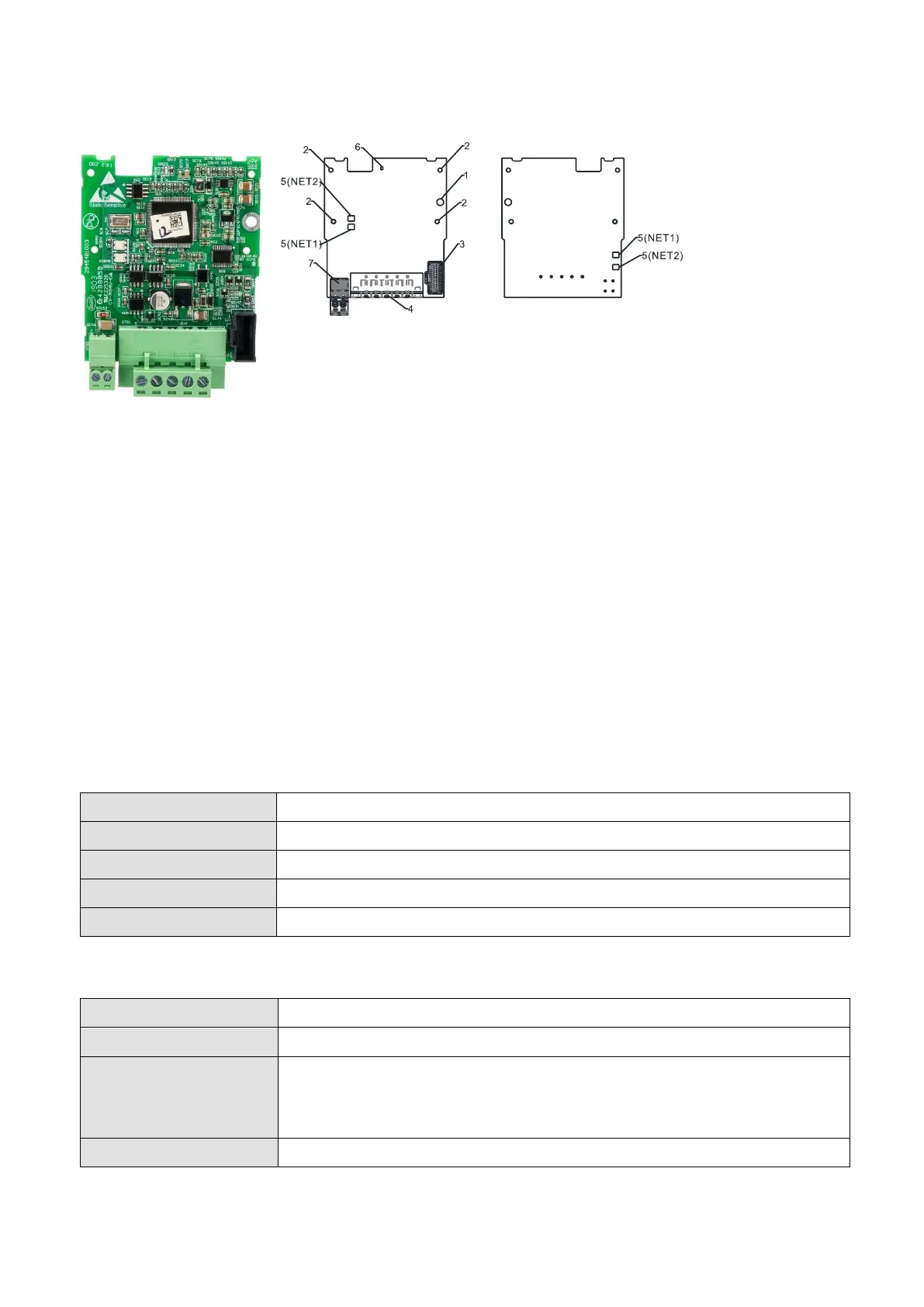

Figure 8-27
Figure 8-28
Wire gauge: 0.25–0.5 mm
2
/ (24–20 AWG)
Stripping length: 7–8 mm
Screw torque: 2 kg-cm／(1.7 Ib-in.)／(0.2 Nm)
1. Screw fixing
hole
2. Positioning
hole
3. AC motor drive
connection port
4. Communication
Port
5. Indicator
NET1 (MS),
NET2 (NS)
6. POWER
indicator
7. Ground
terminal block
8-3-2 Features
1. Based on the high-speed communication interface of Delta’s HSSP protocol, the AC motor drive
can be controlled in real-time.
2. Supports Group 2 only connection and polling I/O data exchange.
3. For I/O mapping, supports a maximum of 32 words input and 32 words output.
4. Supports EDS file configuration in DeviceNet configuration software.
5. Supports all baud rates on DeviceNet bus: 125 Kbps, 250 Kbps, 500 Kbps and extendable baud
rate mode.
6. Node address and baud rate can be set in the AC motor drive.
7. Power is supplied from the AC motor drive.
8-3-3 Specifications
DeviceNet Connector
Interface
5-PIN open pluggable connector. PIN interval: 5.08 mm
Transmission Method
CAN
Transmission Cable
Shielded twisted-pair cable (with 2 power cables)
Transmission Speed
125 Kbps, 250 Kbps, 500 Kbps and extendable baud rate mode
Network Protocol
DeviceNet protocol
Table 8-12
AC Motor Drive Connection Port
Interface
24 PIN communication terminal
Transmission Method
SPI communication
Terminal Function
1. Communication module communicates with the AC motor drive through this
port.
2. The AC motor drive supplies power to communication module through this
port.
Communication Protocol
Delta HSSP protocol
Table 8-13
