Chapter 10 Digital KeypadMS300
196
10-1 KPMS-LE01 Keyboard Panel

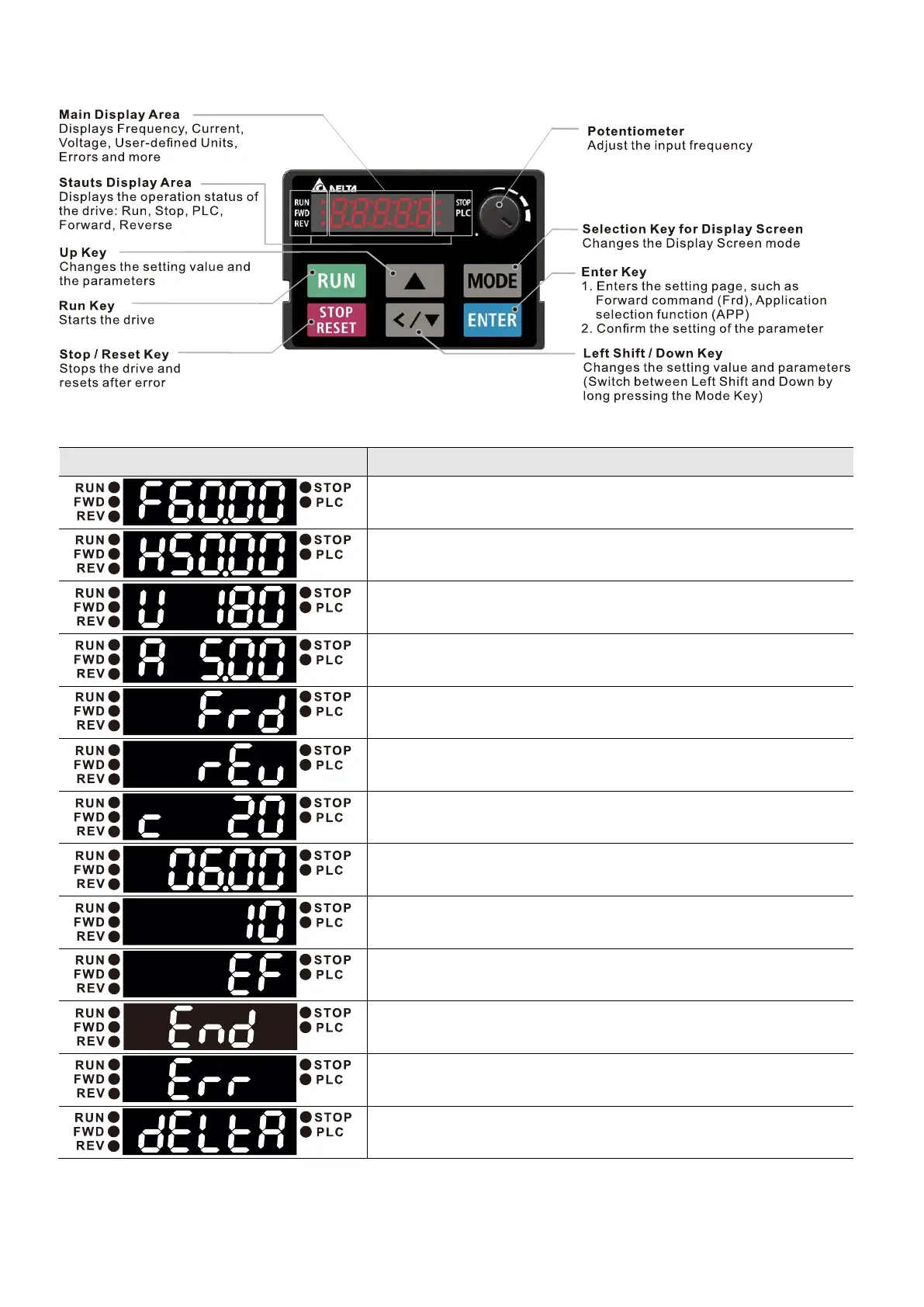

Descriptions of Keypad Functions
Displays the present frequency setting for the drive.
Displays the actual output frequency to the motor.
Displays the user-defined output of a physical quantity.
This example uses Pr.00-04=30 (user-defined output).
Displays the load current.
Displays the count value.
Displays a parameter item.
Displays a parameter value.
Displays an external fault.
Displays “End” for approximately one second if the data has
been accepted and automatically stored in the register.
Displays if the setting data is not accepted or data value
exceeds the allowed range.
Displays the drive is in the booting process, and the display
will be cleared when the process is finished.
