Denon AVR-1802 Service Manual

3
AVR-1802/882

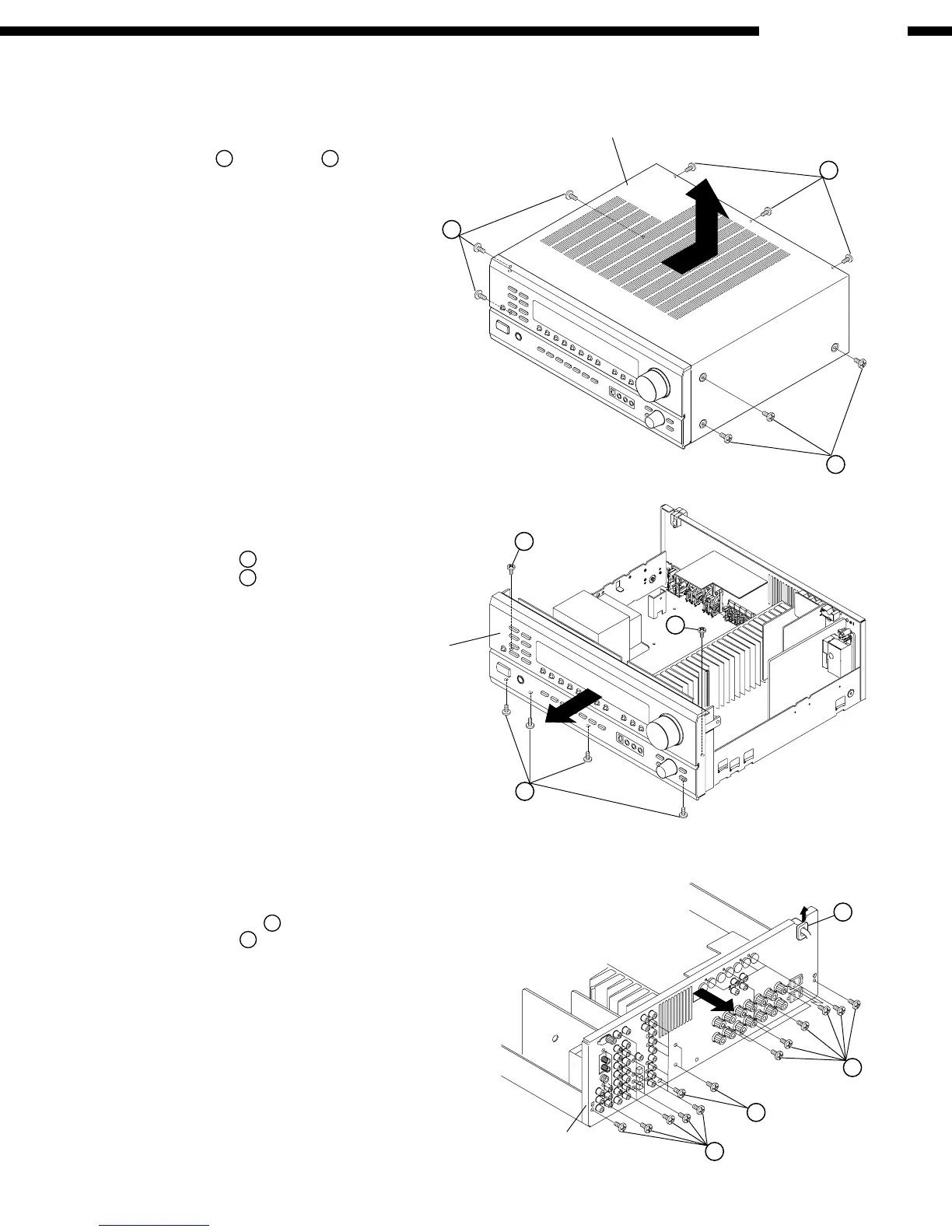

DISASSEMBLY
(To reassemble reverse disassenbly)
Top Cover
Remove 6 screws
1
and 3 screws
2
, detach the Top Cover
in the arrow direction.
Top Cover
Front Panel
1. Remove 2 screws
3
.
2. Remove 4 screws
4
.
3. Detach the Front Panel in the arrow direction.
2
1
1
Front Panel
3
3
4
Rear Panel
1. Remove cord bushing
5
from the Rear Panel.
2. Remove 36 screw
6
.
3. Detach the Rear Panel in the arrow direction.
5
6
6
6
Rear Panel
