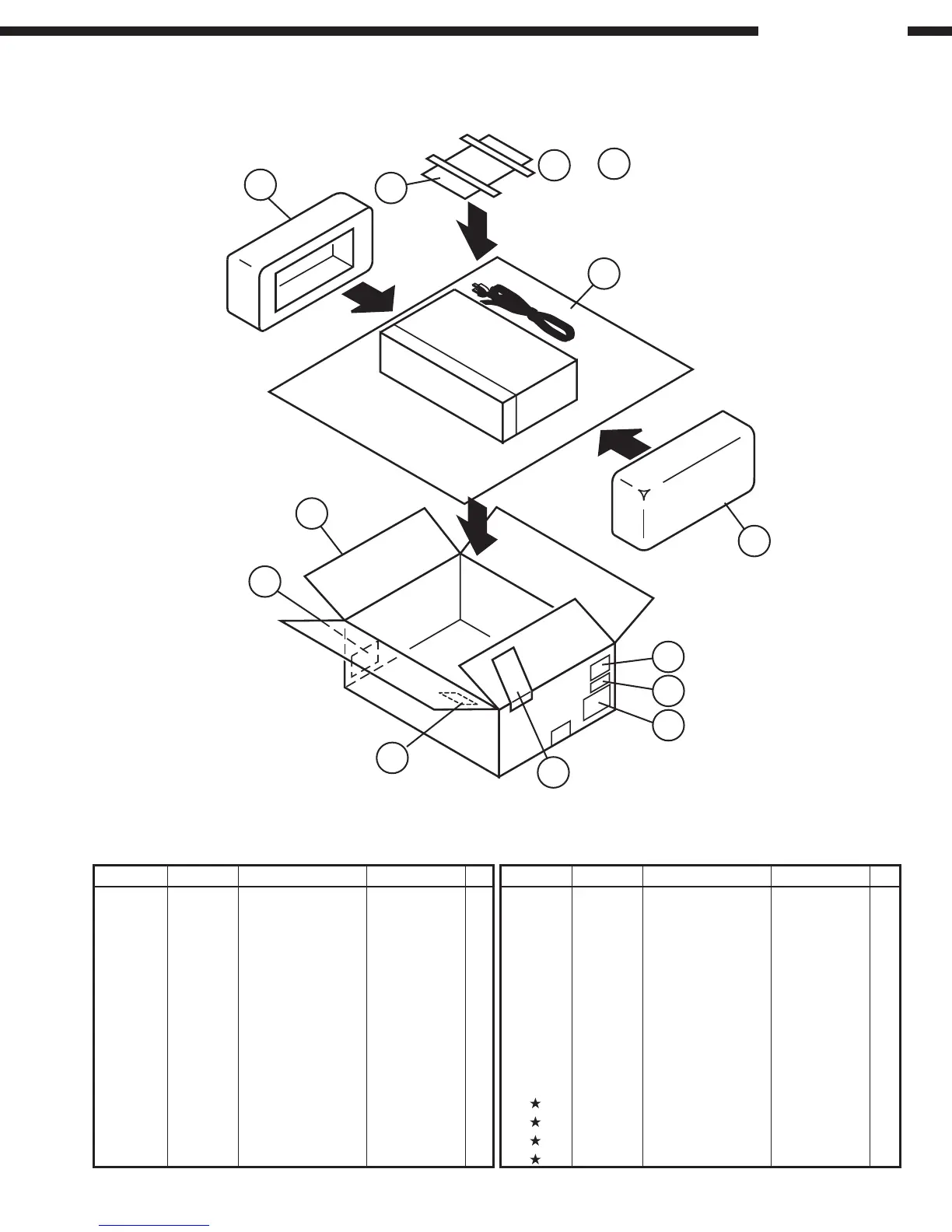

PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
Ref. No. Part No. Part Name Remarks Q'ty
Note: The symbols in the column “Remarks” indicate the following destinations.
E3: U.S.A. model, Canada model E1C: China model
EU: U.S.A. model (AVR-882) E1H: Hong Kong model
E2: Europe model E1T: Taiwan R.O.C. model
E1: Asia model
201 960 0185 601 Set poly bag 1
202 960 0185 504 Cushion 2
203 963 0082 509 Carton case for E3,E2 1
203 963 0085 205 Carton case for EU 1
203 963 0082 512 Carton case for E1,E1C,E1T 1
203 963 0082 525 Carton case for E1H 1
204 963 0045 106 Poly bag 1
205 963 0082 402 Instruction manual for E3,EU 1
205 963 0082 415 Instruction manual for E2 1
205 963 0082 428 Instruction manual for E1,E1H,E1T 1
205 963 0082 428 Instruction manual for E1C 1
206 515 0867 101 S.S. list 1
207 963 0052 306 AM loop antenna 1
208 963 0052 209 FM antenna 1
209 963 0084 002 Remocon RC-897 1
Ref. No. Part No. Part Name Remarks Q'ty
210  Battery (R6P/AA) 2
211 963 0052 704 FM antenna adapter 1
212 963 0061 300 AC plug adapter for E1T 1
213 515 0817 009 DEL Warranty home for E3,EU 1
214  Control label 2
215  UPC label for E3 1
215  UPC label for EU 1
215  EAN label for E2(Black model) 1
215  EAN label for E2(Gold model) 1
216  Carton label for E1C 1
217  Kolin label for E1T 1
513 3322 003 Label (RDS,RADIO TEXT) for E2 2
 Label (CCIB) for E1C 2
513 9111 001 Color label (Gold) for Gold model 2
963 0055 905 Pad for E1H 2

Denon AVR-1802 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Power output per channel (1KHz@6 Ohm)	115 W
Power output per channel (20-20KHz@8 Ohm)	80 W
AC input voltage	120 V
AC input frequency	60 Hz
Equalizer	Yes
Audio decoders	DTS, Dolby Digital, Dolby Pro Logic II
3D	No
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
HDMI in	0
Composite video in	5
S-Video inputs quantity	4
Digital audio coaxial in	1
Digital audio optical in	3

Weight and Dimensions

Depth	417 mm
Width	434 mm
Height	171 mm
Weight	10900 g
