Denon AVR-2311CI User Manual

13
ENGLISH
Advanced versionSimple version InformationBasic version

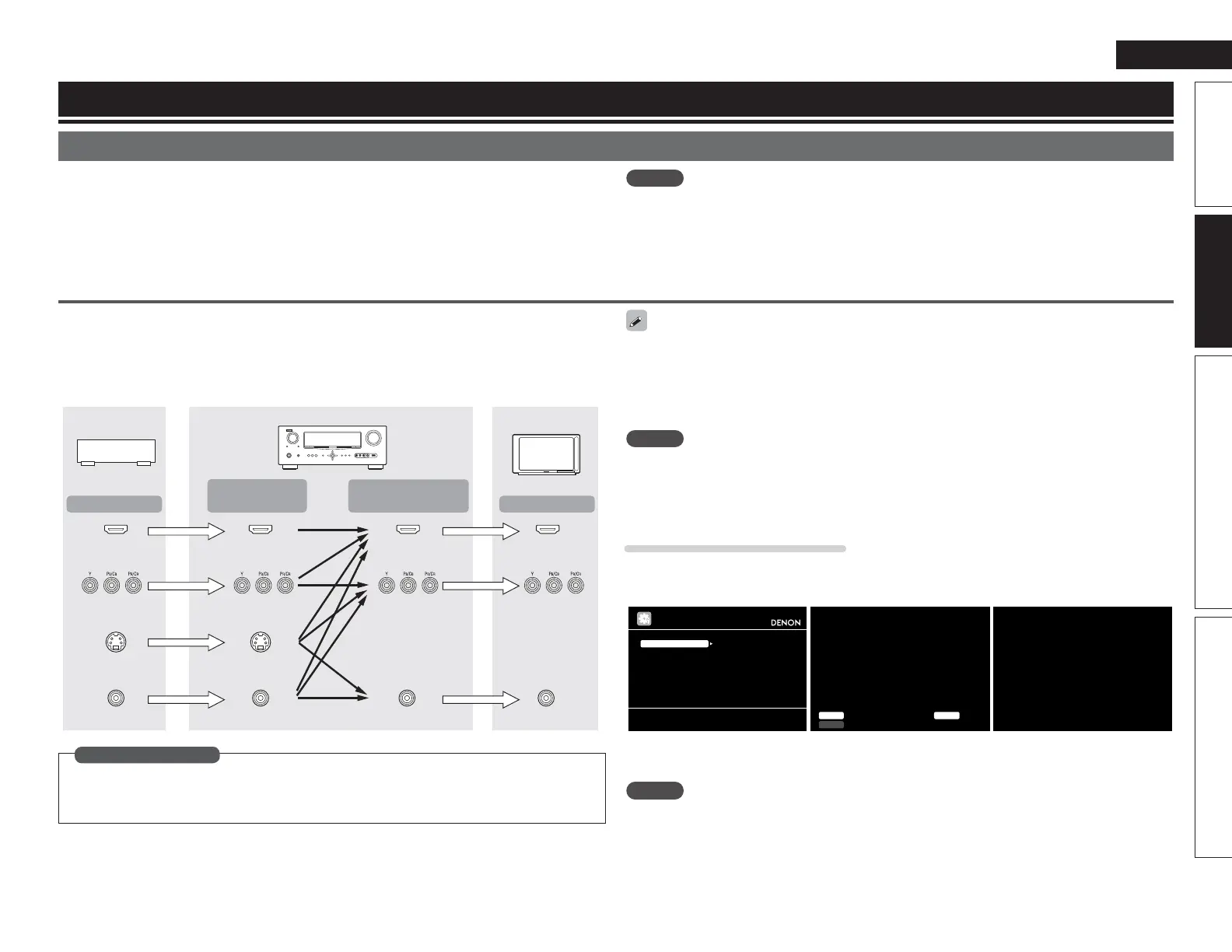

Converting input video signals for output (Video conversion function)
This unit is equipped with four types of video input connectors (HDMI, Component video, S-Video and
video) and two types of video output connectors (HDMI, Component video and video).
Use the connectors corresponding to the components to be connected.
This function automatically converts various formats of video signals input to this unit into the formats used
to output the video signals from this unit to a monitor.
GFlow of video signals for MAIN ZONEH
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
Component video
connectors
Component video
connectors
S-Video connector
Video connector
HDMI
connector
Video connector
HDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
• Set when not using the video conversion function.
“Video Convert” (vpage49)
• Set when changing the resolution of the video signal.
“Resolution” (vpage50)
in Set as Necessary
Connections
• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60
formats.
• The resolution of the video signal input to this unit’s HDMI connector is the one set at “Resolution”
(vpage50) (1080p HDMI signals and 1080p component signals are output at 1080p, regardless of the
setting).
• Resolutions of HDMI-compatible TVs can be checked at “HDMI Monitor Information” (vpage64).
NOTE
• HDMI signals cannot be converted into analog signals.
• When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
• Component video input signals cannot be converted into Video format.
• A menu is output via the HDMI connector or component video connector.
Examples of on-screen display
• Menu screen • Status display screen
When the input source is
switched
When the volume is adjusted
$GMXVWYDULRXVDXGLRDQGYLGHRSDUDPHWHUV
$XGLR9LGHR$GMXVW
,QIRUPDWLRQ
$XWR6HWXS
0DQXDO6HWXS
,QSXW6HWXS
0(18
,QSXW $XWR
67(5(2
%'
0RGH
0DVWHU9ROXPHG%
Status display: The operating status appears briefly on the screen
when the input source is switched or the volume is
changed.
NOTE
• If you operate the menu while playing back 3D video content, the playback video is replaced by the menu
screen. The playback video is not displayed behind the menu screen.
• This unit does not show the status display while playing back 3D video content.
Important information
• Make connections as follows before using this unit. Select an appropriate connection type
according to the components to be connected.
• You may need to make some settings on this unit depending on the connection method. Refer to
each description for more information.
• Select the cables (sold separately) according to the components being connected.
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components being
connected.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables. Doing so can result in noise.
