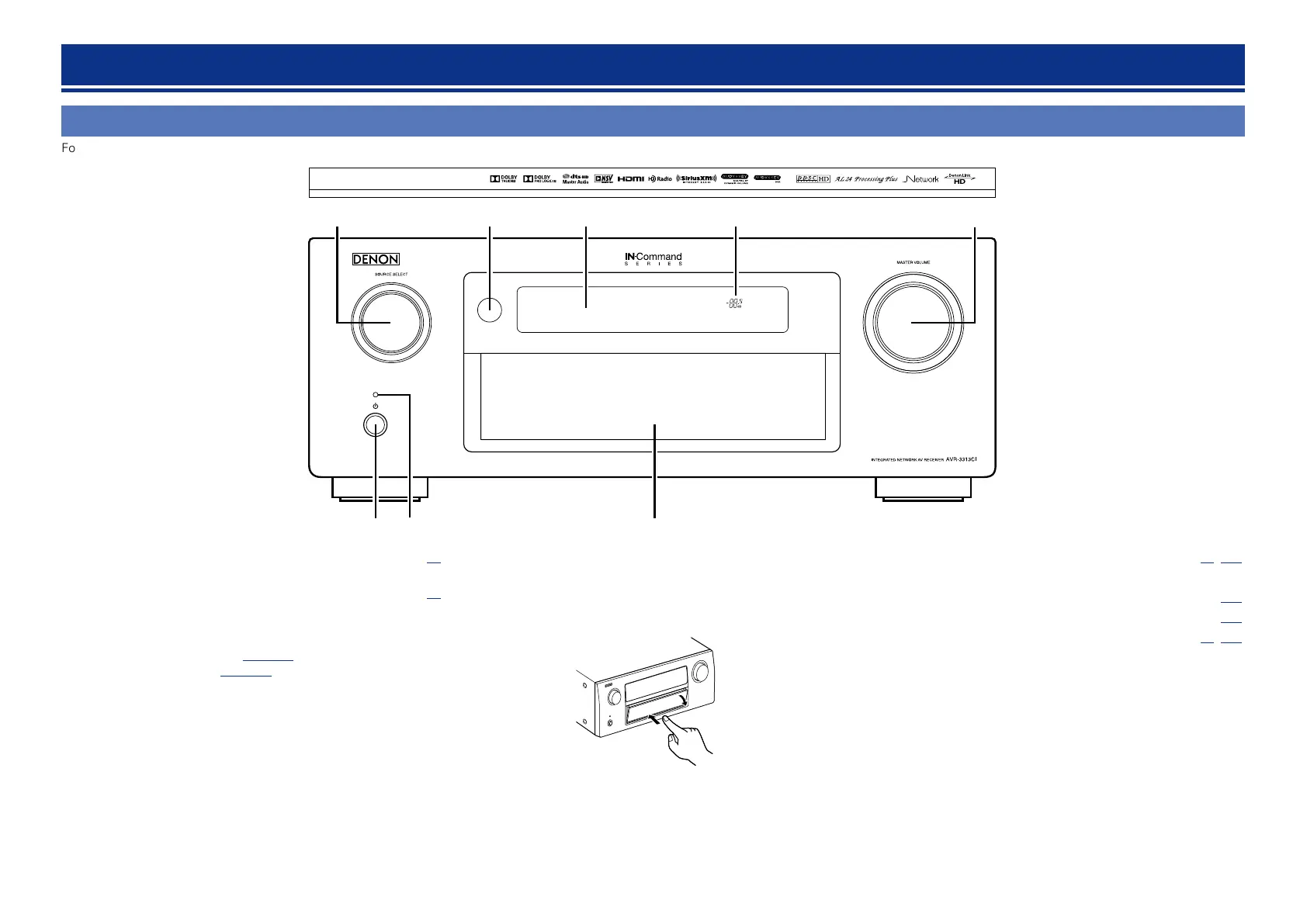

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q ew
y
tui r
q Power operation button (X) ··················································· (36)
Turns power to this unit on and off (standby).
w Power indicator ······································································· (36)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•When “HDMI Control” (vpage121) is set to “On” : Red
•When “IP Control” (vpage136) is set to “Always On” : Red
r MASTER VOLUME knob ················································· (37, 105)
t Master volume indicator
y Display ···················································································· (155)
u Remote control sensor ························································· (158)
i SOURCE SELECT knob ··················································· (36, 176)
e Door
When you are using buttons and/or connectors behind the door,
press the bottom of the door to open it. When not using buttons
and/or connectors behind the door, close it. Be careful not to catch
your fingers when closing the door.
Part names and functions
