Procedure for speaker settings
Speaker installation
Speaker connection (vpage84)
Set up speakers (vpage92)
Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω.
This unit is compatible with Audyssey DSX
®
(vpage168) and
Dolby Pro Logic gz (vpage168), which offers an even wider
and deeper surround sensation.
When using Audyssey DSX
®
, install front wide speakers or front
height speakers.
When using Dolby Pro Logic gz, install front height speakers.

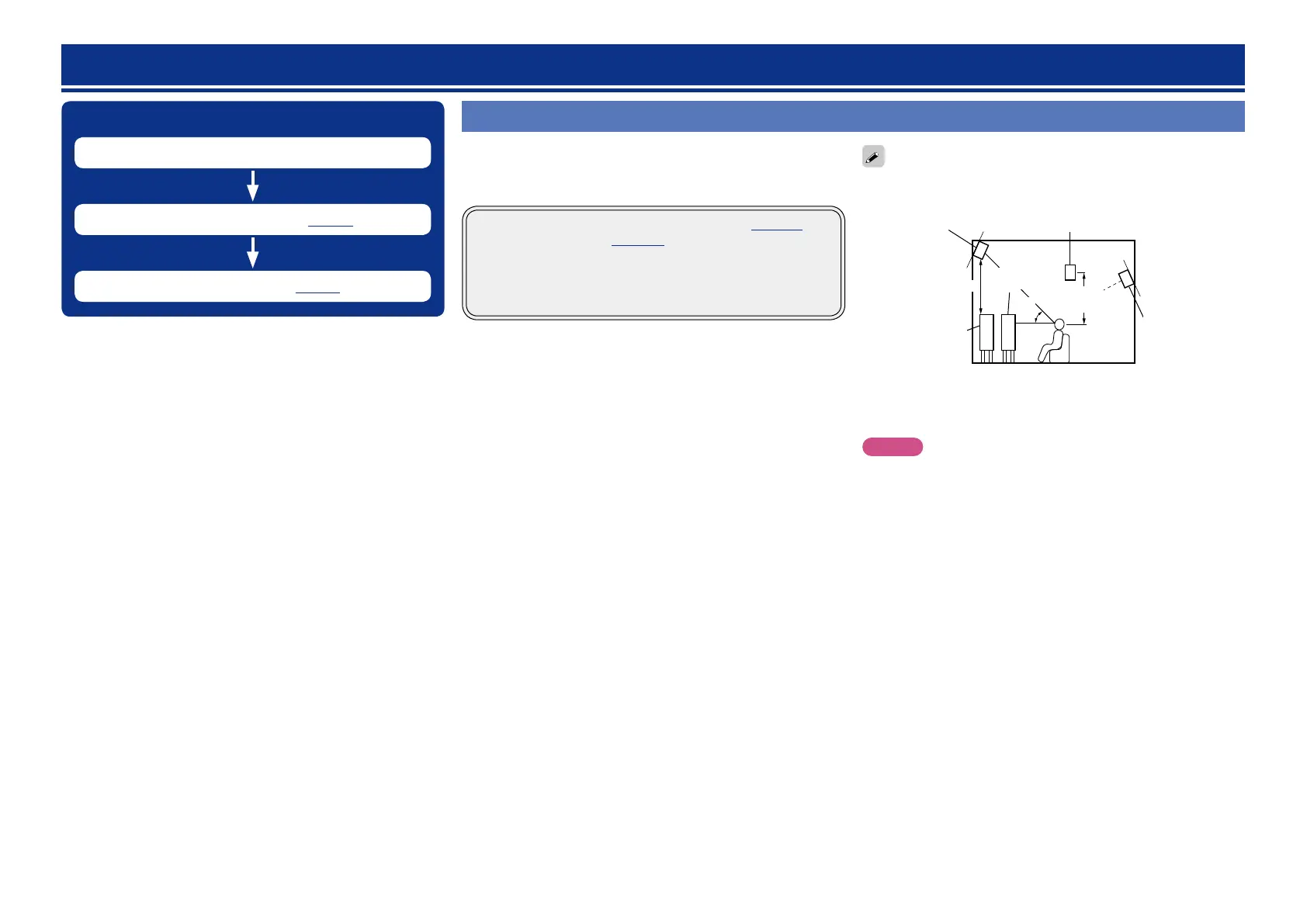

Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
z1
z2
45˚
Surround
speaker
2 – 3 ft/
60 – 90 cm
GViewed from the sideH
Front height
speaker
•Point slightly
downwards
At least
3.3 ft/1 m
Surround back
speaker
•Point slightly
downwards
Front
speaker
Front wide
speaker
z1 Recommended for Dolby Pro Logic gz
z2 Recommended for Audussey DSX
®
NOTE
You cannot have audio output from the surround back speakers, front
height speakers and front wide speakers simultaneously.
