84

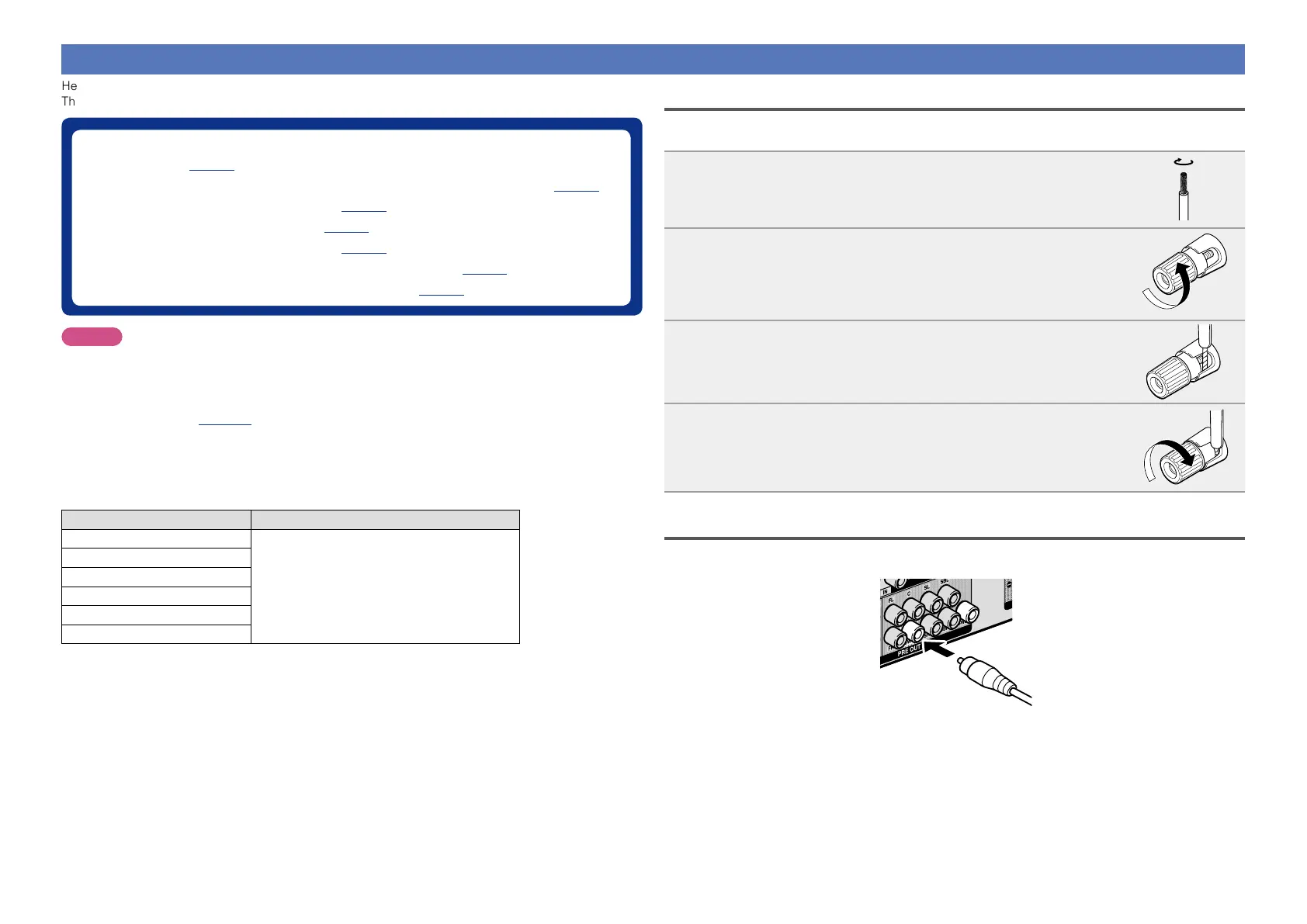

Speaker connection
Here, we connect the speakers in the room to this unit.
This section explains how to connect them using a typical example.
n Connecting 7.1-channel speakers using surround back, front height, and front wide
speakers (vpage85)
n Connecting 6.1-channel speakers using one surround back speaker (vpage86)
n Connecting 5.1-channel speakers (vpage87)
n Connecting front A/B speakers (vpage88)
n Connecting 2.1-channel speakers (vpage89)
n Connecting front speakers with a bi-amp connection (vpage90)
n Connecting 5.1-channel + 2-channel speakers (vpage91)
NOTE
•Disconnect this unit’s power plug from the power outlet before connecting the speakers. Also,
turn off the subwoofer.
•Connect so that the speaker cable core wires do not protrude from the speaker terminal. The
protection circuit may be activated if the core wires touch the rear panel or if the + and – sides
touch each other (vpage170 “Protection Circuit”).
•Never touch the speaker terminals while the power supply is connected. Doing so could result
in electric shock. When the “Setup Assistant” is running, follow the instructions in the “Setup
Assistant” screen for making connections. (Power is not supplied to the speaker terminals while
the “Setup Assistant” is running.)
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 Ω
CENTER
SURROUND
SURROUND BACK
FRONT HEIGHT
FRONT WIDE
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being
connected to this unit, and be sure to interconnect the channels and polarities correctly.
1
Peel off about 0.03 ft/10 mm of sheathing from the tip of the
speaker cable, then either twist the core wire tightly or terminate
it.
2
Turn the speaker terminal counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to the hilt into the speaker
terminal.
4
Turn the speaker terminal clockwise to tighten it.
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer.
To Next Page
