Denon AVR-988 Service Manual

52
AVR-2808CI / AVR-988

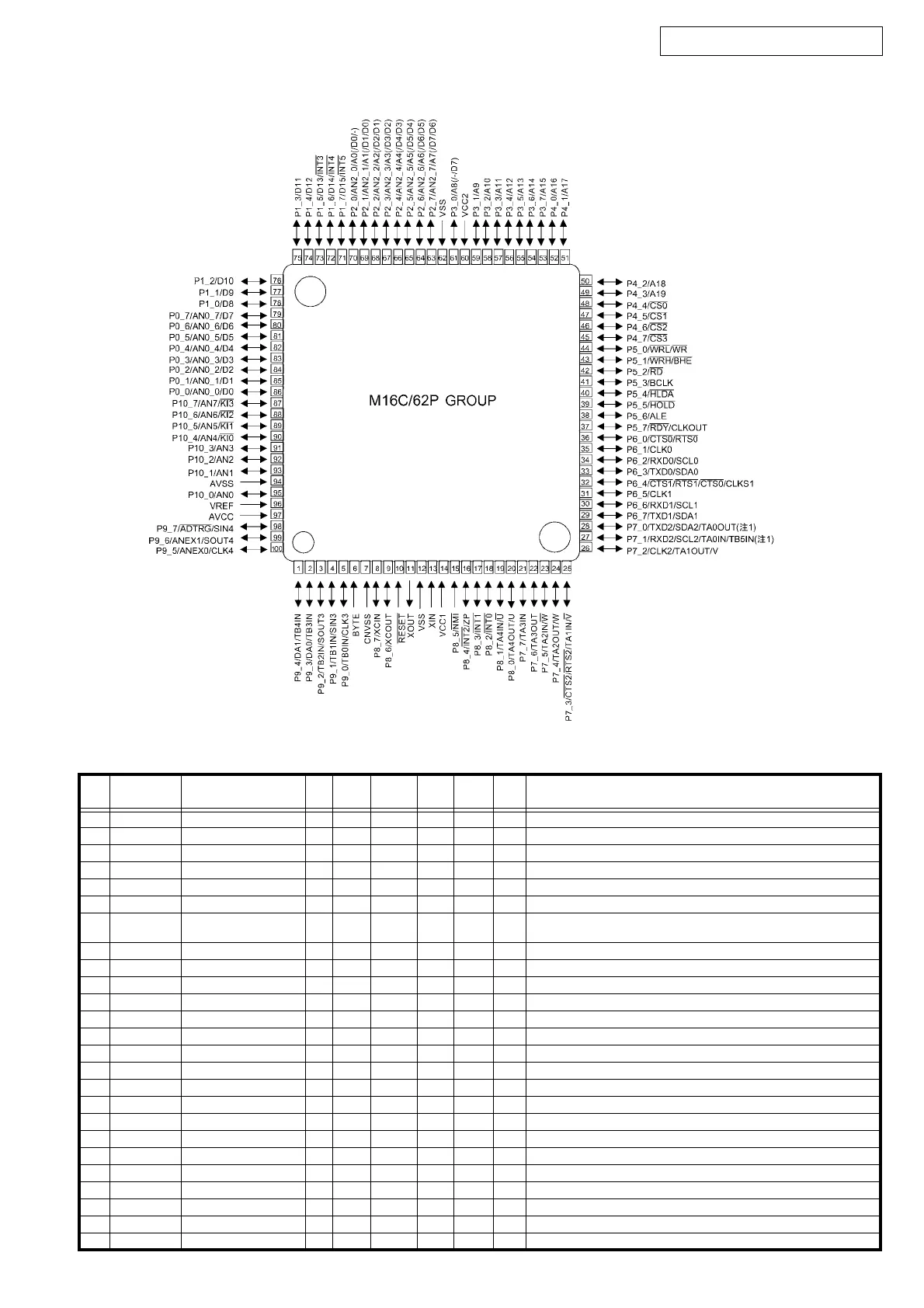

M3062LFGPGP (DI: IC951)
M3062LFGPGP Terminal Function
Pin PinName Symbol I/O Type Det
Op
(Int.)
Op
(Ext.)
Res Function
1 P94/TB4 VPLDDATA O C - - - Z VideoPLDcontrolpin
2 P93/TB3 DIRCE O C - - - Z DIRcontrolpin(LC89057W-VF4A)
3 P92/SOUT3 DIRDIN O C - - - Z DIRcontrolpin(LC89057W-VF4A)
4 P91/SIN3 DIRDOUT I - Lv - Eu Z DIRcontrolpin(LC89057W-VF4A)
5 P90/CLK3 DIRCLK O C - - - Z DIRcontrolpin(LC89057W-VF4A)
6 BYTE BYTE - - - - - - GND(Ext.databusbitwidthswitching,16bit:L)
7 CNVCS CNVSS - - - - - - Single-chip/Micro-processormodeswitching(Normalsingle-chip:L,
Rewritebootprogramstart:Hinputset)
8 P87 VERST O C - - Eu Z Videoencoderreset(ADV7320)
9 P86 VDRST O C - - Eu Z Videoencoderreset(ADV7430)
10 RESET SUBRESET I - Lv - Eu L Resetinput
11 XOUT X1 O - - - - - Oscillatorconnection
12 VSS VSS - - - - - - GND
13 XIN X2 I - - - - - Oscillatorconnection
14 VCC VCC - - - - - - +3.3V
15 P85/NMI NMI I - - - - - Notused(FixedtoH)
16 P84/INT2 CEC-I I - - - - Z CEC-Dsignalinputpin(reserve)
17 P83/INT1 ACKSIMO I - E ↓ &L - Ed Z MAIN-SUBμcomcomm.Controlinputpin
18 P82/INT0 SUBBDOWN I - E ↓ &L Eu Z Powerdowndetect(Powerdown:L)
19 P81 IPRST O C - - - Z IPCONV(FLI2310)reset
20 P80 Z2SSIG.DET I - - - Ed Z
21 P77 DZ3C O - - - - Z PLDrewritecontrol(JTAG)
22 P76 PLDCSMAIN/TMS O C - - - Z MAINFPGA(PLD)controlpin/PLDrewritecontrol(JTAG)
23 P75 PLDDATA/TDI O C - - - Z MAINFPGA(PLD)controlpin/PLDrewritecontrol(JTAG)
24 P74 MPLDCLK O C - - - Z MAINFPGA(PLD)controlpin/PLDrewritecontrol(JTAG)
25 P73/CTS2 VIDEOPOWER O C - - - Z VIDEOPOWERcontroloutput(H:ON)
