AVR-2808CI / AVR-988
TC4094BF Terminal Function
Device Pin Name Symbol Function
MC :
IC106
EXP1 T.MUTE TUNER MUTE CONTROL L:MUTE
EXP2 PREFMUTE PREOUT FRONT MUTE CONTROL L:MUTE
EXP3 PRECMUTE PREOUT CENTER MUTE CONTROL L:MUTE
EXP4 PRESWMUTE PREOUT SUBWOOFER MUTE CONTROL L:MUTE
EXP5 PRESMUTE PREOUT SURROUND MUTE CONTROL L:MUTE
EXP6 PRESBMUTE PREOUT SURROND BACK MUTE CONTROL L:MUTE
EXP7 PREZ2MUTE ZONE2 PREOUT MUTE CONTROL L:MUTE0
EXP8 PREZ3MUTE ZONE3 PREOUT MUTE CONTROL L:MUTE
MC :
IC107
EXP9 HPRLY HEAD PHONE RELAY CONTROL H:HEAD PHONE ON
EXP10 FRL FRONT A SPEAKER RELAY CONTROL H:Front A Speaker ON
EXP11 CRL CENTER SPEAKER RELAY CONTROL H:Center Speaker ON
EXP12 NC -
EXP13 SRL SURROUND SPEAKER RELAY CONTROL H:Surround Speaker ON
EXP14 SBRL SURROUND BACK SPEAKER RELAY CONTROL H:Surround Back Speaker ON
EXP15 FBRL FRONT B SPEAKER RELAY CONTROL H:Front B Speaker ON
EXP16 NC -

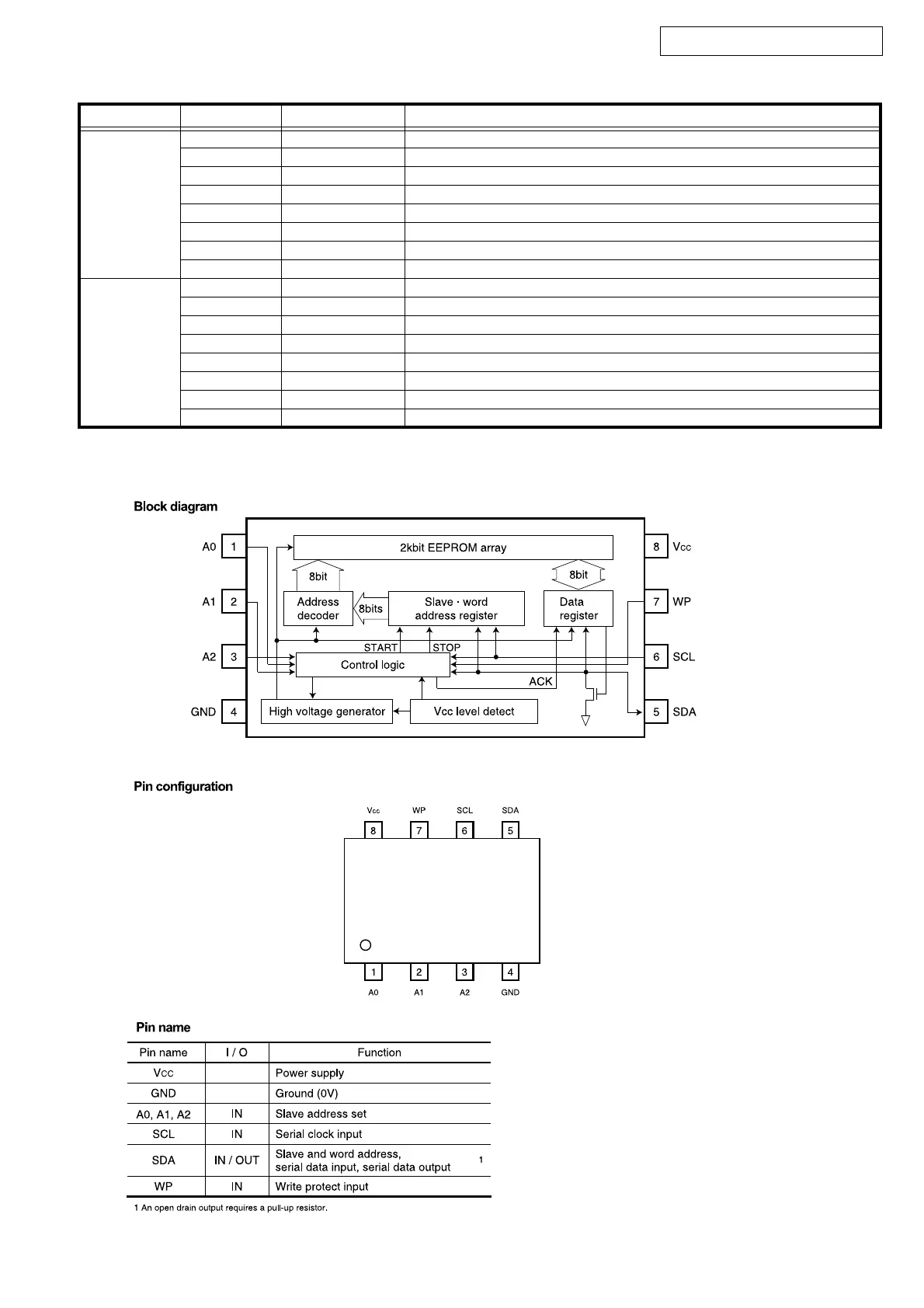

BR24L02FV-W (DI: IC551,556)
