57

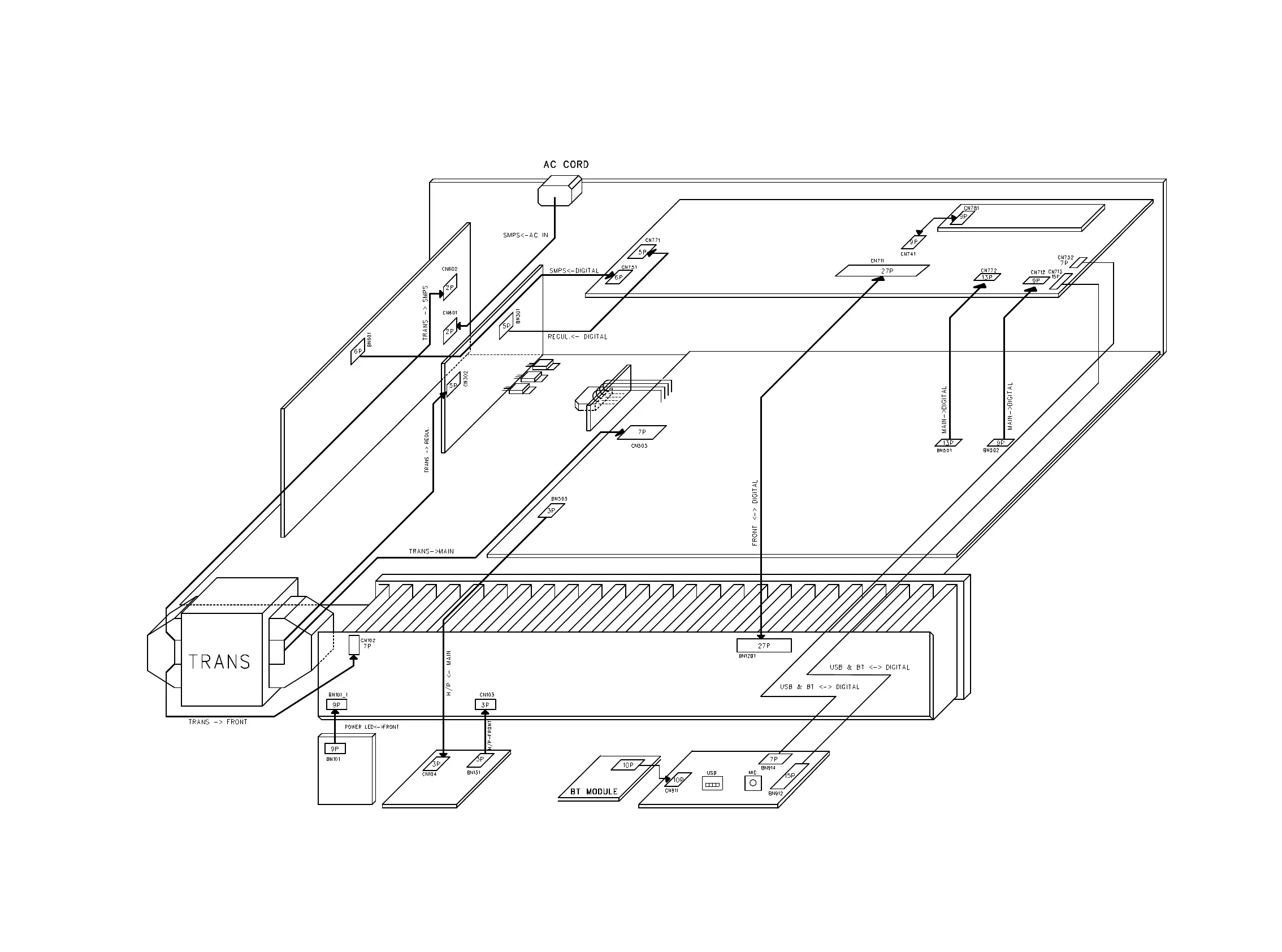

WIRING DIAGRAM
USB&MIC PCB ASS'Y
FRONT PCB ASS'Y
STANDBY
PCB ASS'Y
PHONE PCB ASS'Y
MAIN PCB ASS'Y
DIGITAL PCB ASS'Y
VIDEO PCB ASS'Y
REGULATOR
PCB ASS'Y
SMPS PCB ASS'Y
AVR-S518BT / X520BT / X518CI WIRING DIAGRAM
