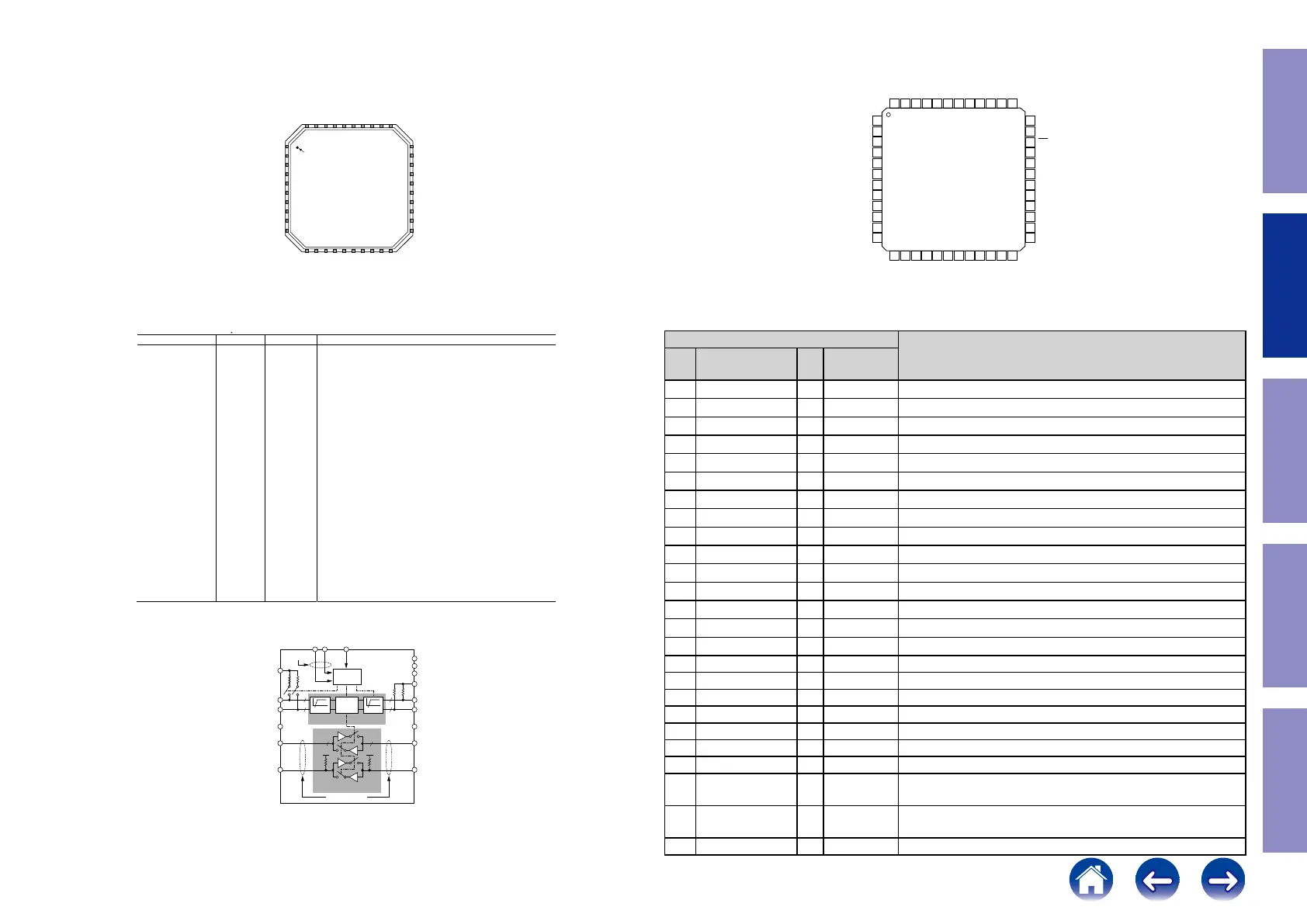

Denon AVR-S930H Service Manual

AD8195ACPZ ( F_HDMI : U3000)
Terminl Function
Block diagram
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN
39 SDA_IN
38 CEC_IN 37 AVEE
36 VREF_IN
35 SCL_OUT
34 SDA_OUT 31 CEC_OUT
11ON0
12OP0
13VTTO
14ON1
15OP1
16AVCC 17ON2
20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3
18OP2
32 AMUXVCC
33 VREF_OUT
PIN 1
INDICATOR
0
7049-003
AD8195
Rev. 0 | Page 6 of 20
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN 39 SDA_IN 38 CEC_IN 37 AVEE 36 VREF_IN 35 SCL_OUT 34 SDA_OUT 31 CEC_OUT
11ON0 12OP0 13VTTO 14ON1 15OP1 16AVCC 17ON2 20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3 18OP2
32 AMUXVCC 33 VREF_OUT
PIN 1
INDICATOR
07049-003
Figure 3. Pin Configuration
Table 6. Pin Function Descriptions
Pin No. Mnemonic Type
1
Description
1 IN0 HS I High Speed Input Complement.
2 IP0 HS I High Speed Input.
3 IN1 HS I High Speed Input Complement.
4 IP1 HS I High Speed Input.
5 VTTI Power Input Termination Supply. Nominally connected to AVCC.
6 IN2 HS I High Speed Input Complement.
7 IP2 HS I High Speed Input.
8 IN3 HS I High Speed Input Complement.
9 IP3 HS I High Speed Input.
10, 16, 22, 23, 25, 26, 30 AVCC Power Positive Analog Supply. 3.3 V nominal.
11 ON0 HS O High Speed Output Complement.
12 OP0 HS O High Speed Output.
13 VTTO Power Output Termination Supply. Nominally connected to AVCC.
14 ON1 HS O High Speed Output Complement.
15 OP1 HS O High Speed Output.
17 ON2 HS O High Speed Output Complement.
18 OP2 HS O High Speed Output.
19 ON3 HS O High Speed Output Complement.
20 OP3 HS O High Speed Output.
21 COMP Control Power-On Compensation Pin. Bypass to ground through a 10 μF capacitor.
24, 27, 37, Exposed Pad AVEE Power Negative Analog Supply. 0 V nominal.
28 TX_EN Control High Speed Output Enable Parallel Interface.
29 PE_EN Control High Speed Preemphasis Enable Parallel Interface.
31 CEC_OUT LS I/O CEC Output Side.
32 AMUXVCC Power Positive Auxiliary Buffer Supply. 5 V nominal.
IP[3:0]
IN[3:0]
VTTI
OP[3:0]
AMUXVCC
AVEE
VTTO
AVCC
ON[3:0]
VREF_IN VREF_OUT
+
–
+
–
EQ
BUFFER
PE
CONTROL
LOGIC
4
4
4
22
4
HIGH SPEED BUFFERED
LOW SPEED BUFFERED
PE_EN
TX_EN
COMP
PARALLEL
BIDIRECTIONAL
AD8195
SCL_IN
SDA_IN
SCL_OUT
SDA_OUT
CEC_IN CEC_OUT
PCM9211 (DIGITAL : U1040)
PIN Functions
PIN
DESCRIPTION
NO. NAME I/O
5-V
TOLERANT
1 ERROR/INT0 O No DIR Error detection output / Interrupt0 output
2 NPCM/INT1 O No DIR Non-PCM detection output / Interrupt1 output
3 MPIO_A0 I/O Yes Multipurpose I/O, Group A(1)
4 MPIO_A1 I/O Yes Multipurpose I/O, Group A(1)
5 MPIO_A2 I/O Yes Multipurpose I/O, Group A(1)
6 MPIO_A3 I/O Yes Multipurpose I/O, Group A(1)
7 MPIO_C0 I/O Yes Multipurpose I/O, Group C(1)
8 MPIO_C1 I/O Yes Multipurpose I/O, Group C(1)
9 MPIO_C2 I/O Yes Multipurpose I/O, Group C(1)
10 MPIO_C3 I/O Ye s Multipurpose I/O, Group C(1)
11 MPIO_B0 I/O Yes Multipurpose I/O, Group B(1)
12 MPIO_B1 I/O Yes Multipurpose I/O, Group B(1)
13 MPIO_B2 I/O Yes Multipurpose I/O, Group B(1)
14 MPIO_B3 I/O Yes Multipurpose I/O, Group B(1)
15 MPO0 O No Multipurpose output 0
16 MPO1 O No Multipurpose output 1
17 DOUT O No Main output port, serial digital audio data output
18 LRCK O No Main output port, LR clock output
19 BCK O No Main output port, Bit clock output
20 SCKO O No Main output port, System clock output
21 DGND – – Ground, for digital
22 DVDD – – Power supply, 3.3 V (typ.), for digital
23 MDO/ADR0 I/O Yes Software control I/F, SPI data output / I2C slave address
setting0(2)
24 MDI/SDA I/O Yes Software control I/F, SPI data input / I2C data input/output(2)
(3)
25 MC/SCL I Yes Software control I/F, SPI clock input / I2C clock input(2)
36
35
34
33
32
31
30
29
28
27
26
25
1
2
3
4
5
6
7
8
9
10
11
12
ERROR/INT0
NPCM/INT1
MPIO_A0
MPIO_A1
MPIO_A2
MPIO_A3
MPIO_C0
MPIO_C1
MPIO_C2
MPIO_C3
MPIO_B0
MPIO_B1
VDDRX
RXIN1
RST
RXIN2
RXIN3
RXIN4/ASCKIO
RXIN5/ABCKIO
RXIN6/ALRCKIO
RXIN7/ADIN0
MODE
MS/ADR1
MC/SCL
48 47 46
45
44 43
42
41
40 39 38
13
14
15 16
17
18 19 20
21 22
23
37
24
PCM9211
VINR
VINL
VCCAD
AGNDAD
VCOM
FILT
VCC
AGND
XTO
XTI
GNDRX
RXIN0
MPIO_B2
MPIO_B3
MPO0
MPO1
DOUT
LRCK
BCK
SCKO
DGND
DVDD
MDO/ADR0
MDI/SDA
PCM9211
www.ti.com SBAS495 –JUNE 2010
PIN CONFIGURATIONS
PT PACKAGE
LQFP-48
(TOP VIEW)
PIN FUNCTIONS
PIN
5-V
NO. NAME I/O TOLERANT DESCRIPTION
1 ERROR/INT0 O No DIR Error detection output / Interrupt0 output
2 NPCM/INT1 O No DIR Non-PCM detection output / Interrupt1 output
3 MPIO_A0 I/O Yes Multipurpose I/O, Group A
(1)
4 MPIO_A1 I/O Yes Multipurpose I/O, Group A
(1)
5 MPIO_A2 I/O Yes Multipurpose I/O, Group A
(1)
6 MPIO_A3 I/O Yes Multipurpose I/O, Group A
(1)
7 MPIO_C0 I/O Yes Multipurpose I/O, Group C
(1)
8 MPIO_C1 I/O Yes Multipurpose I/O, Group C
(1)
9 MPIO_C2 I/O Yes Multipurpose I/O, Group C
(1)
10 MPIO_C3 I/O Yes Multipurpose I/O, Group C
(1)
11 MPIO_B0 I/O Yes Multipurpose I/O, Group B
(1)
12 MPIO_B1 I/O Yes Multipurpose I/O, Group B
(1)
13 MPIO_B2 I/O Yes Multipurpose I/O, Group B
(1)
14 MPIO_B3 I/O Yes Multipurpose I/O, Group B
(1)
15 MPO0 O No Multipurpose output 0
(1) Schmitt trigger input
Copyright © 2010, Texas Instruments Incorporated Submit Documentation Feedback 7
Product Folder Link(s): PCM9211
57
Caution in
servicing
Electrical Mechanical Repair Information Updating
