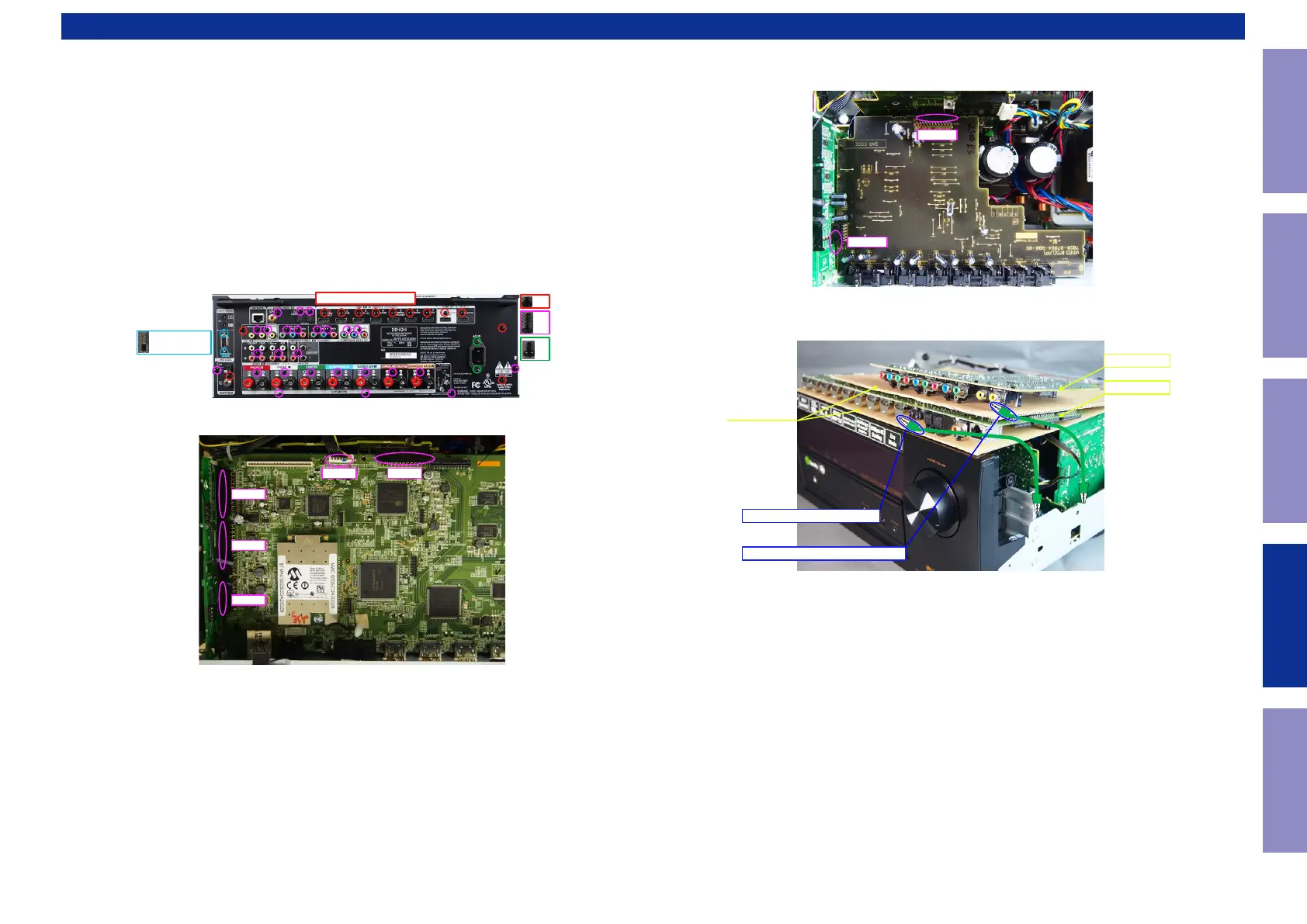

JIG FOR SERVICING
Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
Connection of Jig for HDMI PCB
---Items to Be Prepared---
8U-110084S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Not supplied) : 2 sheet
Ground lead (Not supplied) : 2 pc
-Proceeding-
(1) Remove the screws.
(2) Remove the connector PCB.
Shooting direction: A
x13
x26
x2 E3 ONLY
x2
N1039N1019
N1014
N1016
N1020
(3) Remove the HDMI PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the HDMI PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
CN5000
CN5000
Insulation sheet
PCB DIGITAL
PCB VIDEO
CHASSIS-HDMI CONNECTOR
CHASSIS-COMPOSIT CONNECTOR
142
Caution in
servicing
