Denon AVR-X2300W Service Manual

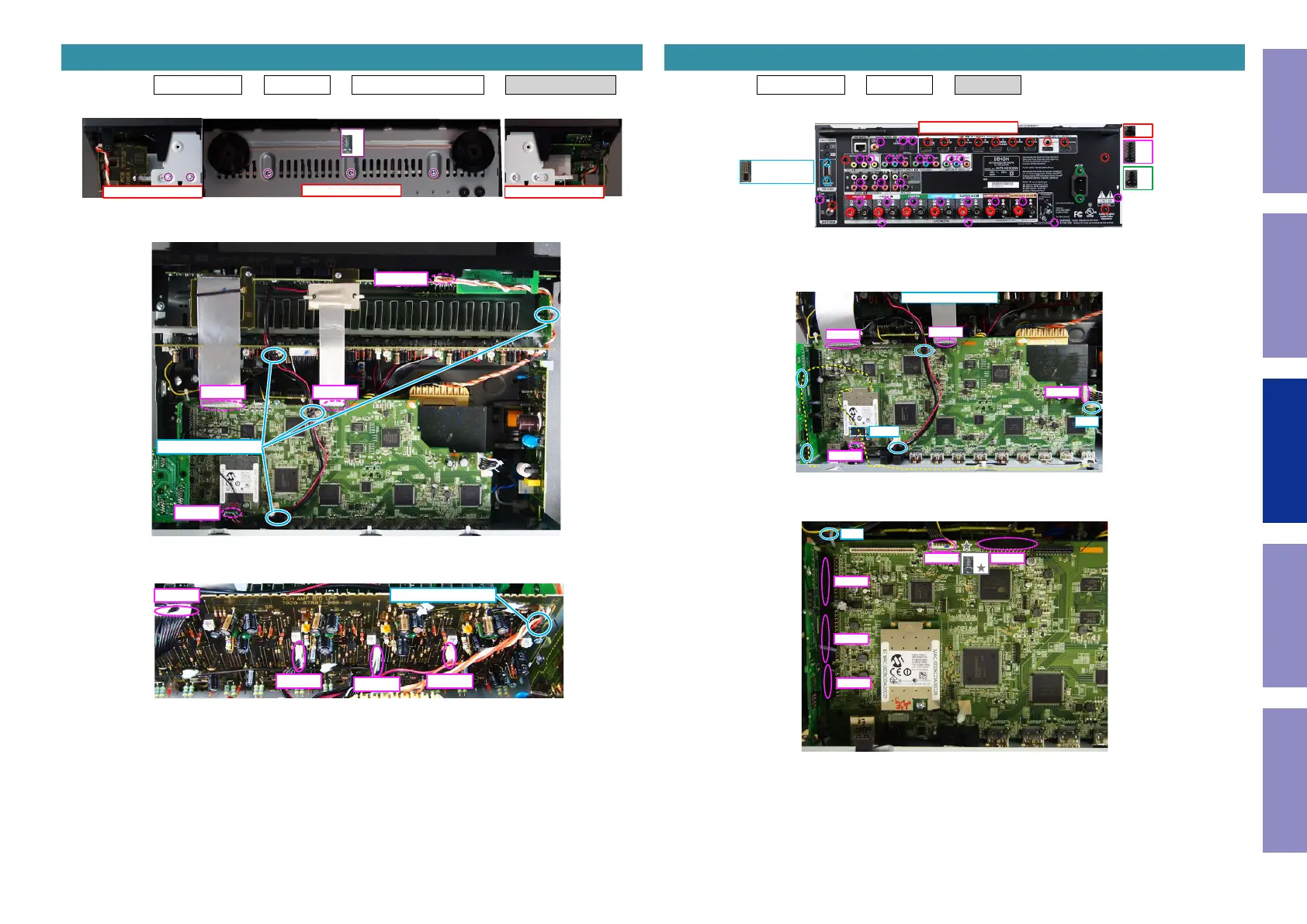

Proceeding ： TOP COVER → COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the CORD HOLDER and connectors. Remove the FFC.
(3) Remove the CORD HOLDER and connectors.
3. RADIATOR ASSY
View from the bottom
Shooting direction: C Shooting direction: D
x7
FFC FFC
N1008
CP4400
CORD HOLDER
CP405
CP403
CP402
CP401
CORD HOLDER
Proceeding ： TOP COVER → COVER → HDMI PCB
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connector.
Remove the TAPE. Remove the FFC.
(3) Cut the wire clamps, then remove the CORD HOLDERs and connector. Remove the screws.
4. HDMI PCB
Shooting direction: A
x13
x26
x2 E3 ONLY
x2
FFC
FFC
N1008
N1033
CORD HOLDER x 4
CUT
TAPE
N1039N1019
N1014
N1016
N1020
x1
CUT
64
Caution in
servicing
Electrical Mechanical Repair Information Updating
