Denon AVR-X250BT Service Manual

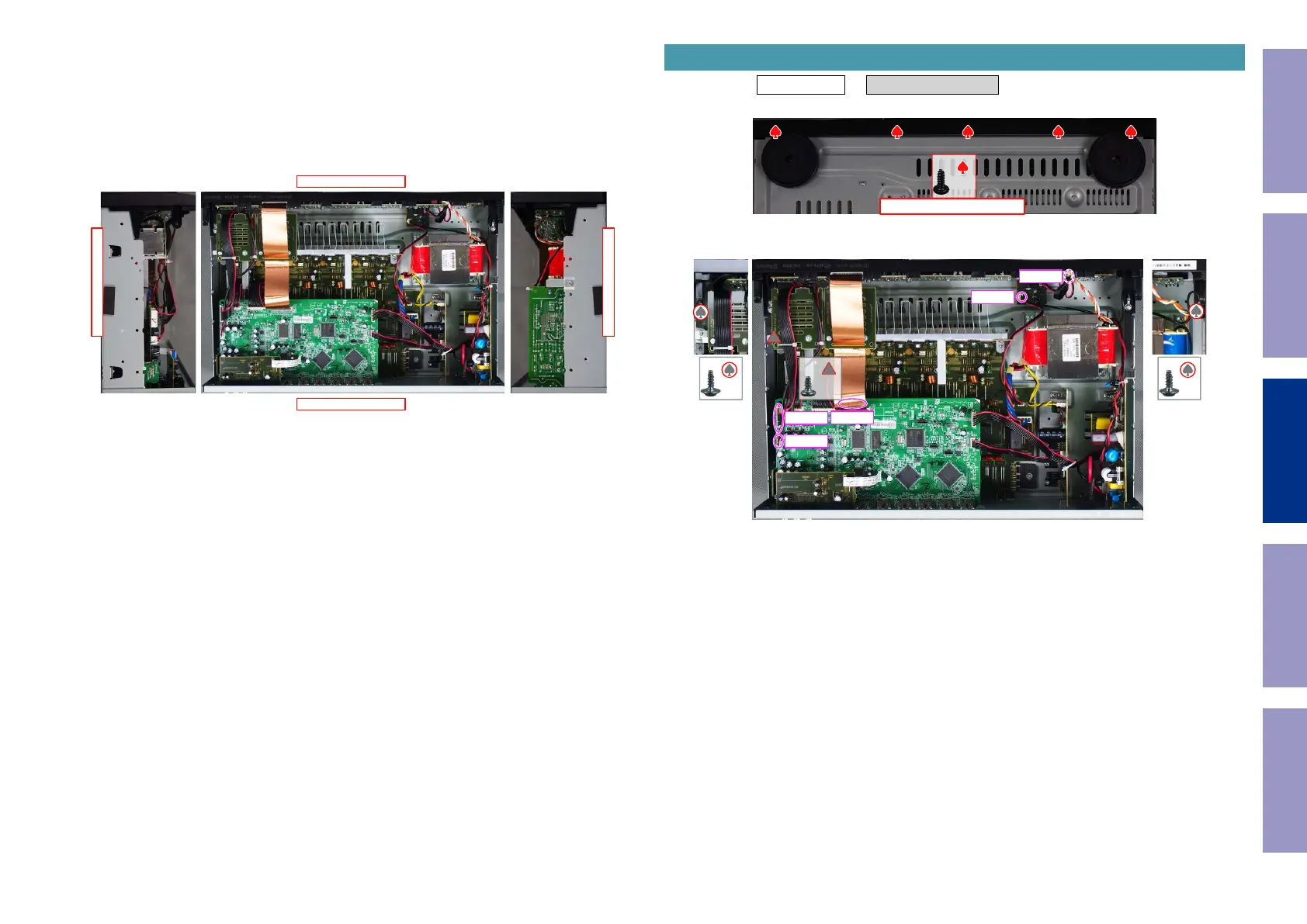

Explanatory Photos for DISASSEMBLY
• For the shooting direction of each photos used in this manual, see the photo below.
• A, B, C and D in the photo below indicate the shooting directions of photos.
• The photographs with no shooting direction indicated were taken from the top of the unit.
• Photos of AVR-X250BT E2 are used in this manual.
The viewpoint of each photograph
(Shooting direction : X) [View from the top]
↓Shooting direction: C↓ ↑Shooting direction: D↑
↑Shooting direction: A↑
↓Shooting direction: B↓
Proceeding : TOP COVER → FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws. Remove the connector. Remove the FFC.
1. FRONT PANEL ASSY
View from the bottom
x5
x1 x1
x1
CN104
CN713
CN752
FFC
CN102
Before Servicing
This Unit
Electrical Mechanical Repair Information Updating
52

Denon AVR-X250BT Specifications

General

Impedance	16 Ω
Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	90 W
Power output per channel (1KHz@8 Ohm)	70 W
Power output per channel (20-20KHz@8 Ohm)	130 W
AirPlay	No
Display	VFD
HDCP version	2.2
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby Pro Logic II, Dolby TrueHD
HDMI in	5
Composite video in	2
Digital audio coaxial in	-
Supported graphics resolutions	3840 x 2160
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	330 W
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Clamp terminals

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7500 g
