Denon DP-300F Service Manual

15
DP-300F

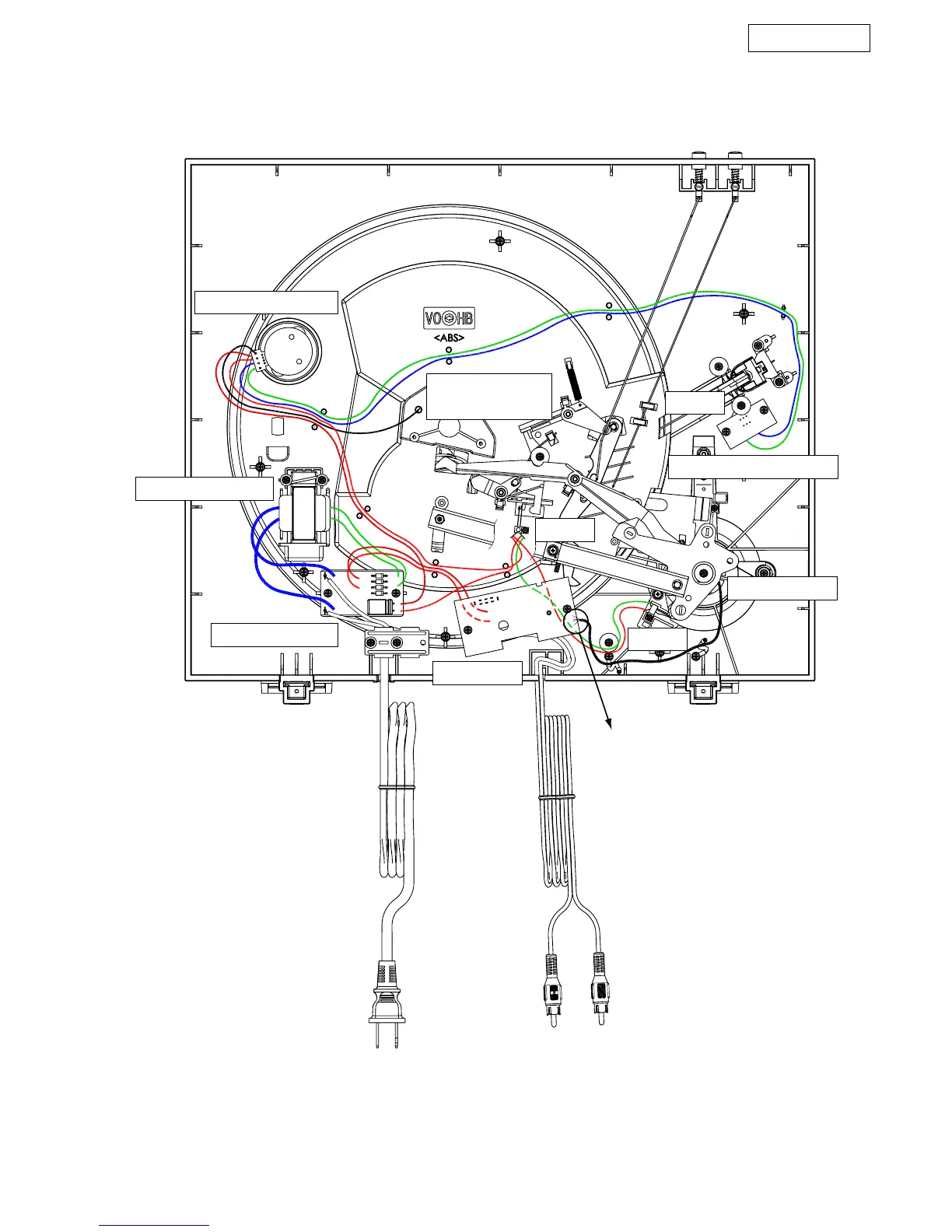

WIRING DIAGRAM
SPEED SELECT SW
SW 1
SW 2
SW 3
CARTRDGE
PHONO MOTOR
Fix to turn table
Shaft Earth
POWER TRANS
POWER P.W.B.
EQ P.W.B.
AC CORD
PHONO OUTPUT
RED (R)
(L) WHT
AC 100V 50/60Hz (Japan)
AC 120V 60Hz (U.S.A. & Canada)
AC 230V 50Hz (Europe)
L + : WHITE
L - : BLUE
GND : BLK
R- :GREEN
R+ :RED

Denon DP-300F Specifications

General

Type	Belt-drive audio turntable
Interface	PHONO
Product color	Black, Silver
Wow & flutter	0.1 %
Nominal speeds	33 1/3, 45 RPM
Stylus pressure	4 g
Signal-to-Noise Ratio (SNR)	60 dB
Arm length	221.5 mm
AC adapter frequency	60 Hz
AC adapter input voltage	80 - 260 V
Power consumption (typical)	2 W
Frequency range	20 - 20000 Hz

Weight and Dimensions

Weight	5500 g
Product dimensions (WxHxD)	434 x 381 x 122 mm
