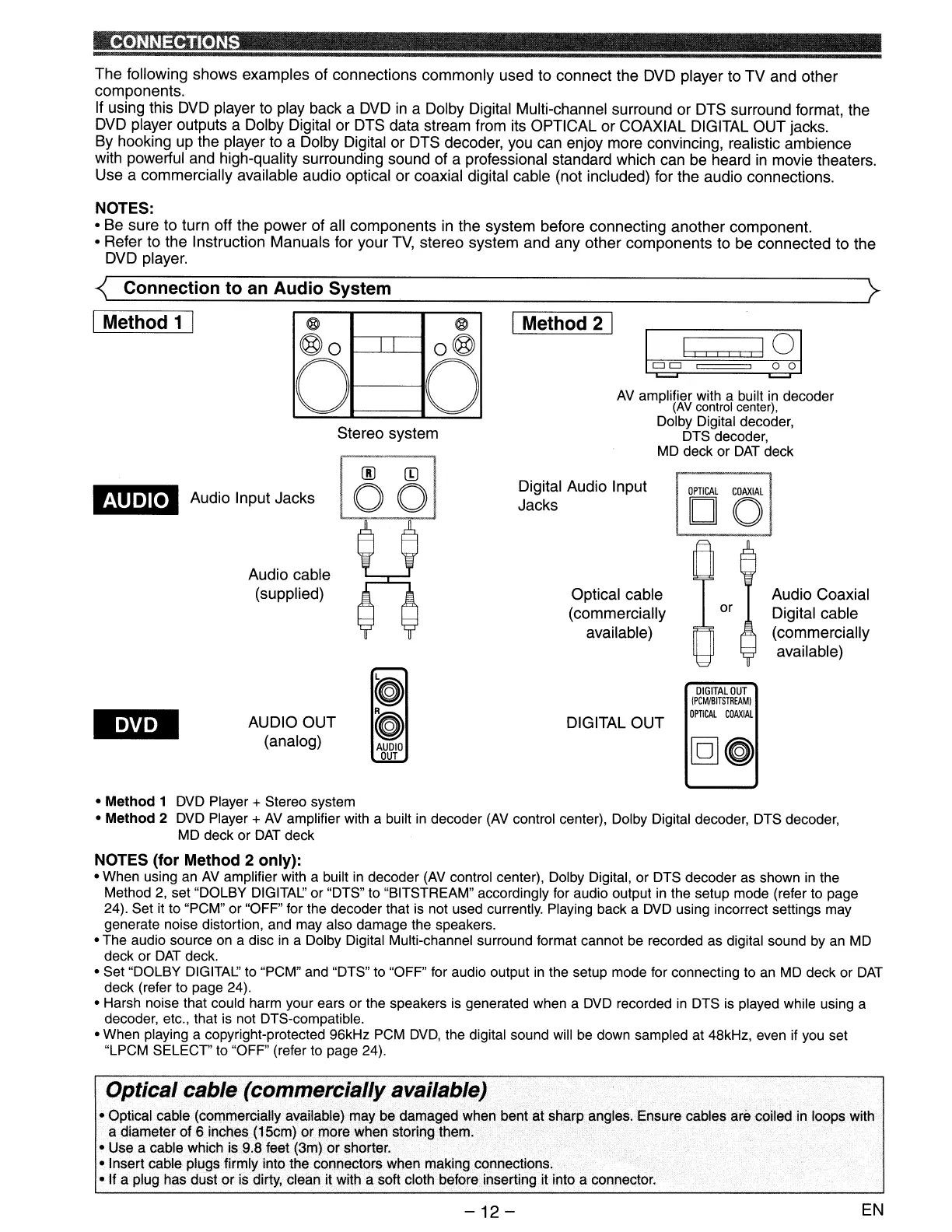

CONNECTIONS
The following
shows
examples
of
connections
commonly
used to connect the DVD player to
TV
and other
components.
If using this DVD player to play back a DVD
in
a Dolby Digital Multi-channel surround or DTS surround format, the
DVD player outputs a Dolby Digital
or
DTS data stream from its OPTICAL
or
COAXIAL DIGITAL
OUT
jacks.
By hooking up the player to a Dolby Digital or DTS decoder, you can enjoy more convincing, realistic ambience
with powerful and high-quality surrounding sound of a professional standard which can be heard
in
movie theaters.
Use a commercially available audio optical
or
coaxial digital cable (not included) for the audio connections.
NOTES:
• Be sure to turn off the power of all
components
in the system before connecting another component.
• Refer to the Instruction Manuals for
your
TV, stereo system and any
other
components
to be connected
to
the
DVD player.
Stereo system
Audio Coaxial
Digital cable
(commercially
available)
DIGITAL
OUT
!PCM/BITSTREAMI
OPTICAL
COAXIAL
OPTICAL
COAXIAL
DO
I
1"",,1°1
DO
i i 0 0
~
L:::IIII
AV
amplifier with a built
in
decoder
(AV control center),
Dolby Digital decoder,
DTS decoder,
MD deck or
OAT
deck
Optical cable
(commercially
available)
DIGITAL
OUT
Digital Audio Input
Jacks
I Method
21
~
~
AUDIO
OUT
~
@
@O
I I
O@
0 0
AUDIO
OUT
(analog)
Audio cable
(supplied)
--<
Connection
to
an
Audio
System
I Method 1 I
10
00
'
Om
I
E:!IiItiI
Audio Input Jacks
•
Method
1
DVD
Player + Stereo system
• Method 2
DVD
Player +
AV
amplifier with a built
in
decoder
(AV
control center), Dolby Digital decoder, DTS decoder,
MD deck or
OAT
deck
NOTES
(for
Method 2 only):
• When using an
AV
amplifier with a built in decoder
(AV
control center), Dolby Digital, or DTS decoder as shown
in
the
Method
2,
set "DOLBY
DIGITA~'
or "DTS" to "BITSTREAM" accordingly for audio output in the setup mode (refer to page
24). Set it to "PCM" or "OFF' for the decoder that is not used currently. Playing back a
DVD
using incorrect settings may
generate noise distortion, and may also damage the speakers.
• The audio source on a disc in a Dolby Digital Multi-channel surround format cannot be recorded as digital sound
by
an MD
deck or
OAT
deck.
• Set "DOLBY
DIGITA~'
to "PCM" and "DTS" to "OFF' for audio output
in
the setup mode for connecting to an MD deck or
OAT
deck (refer to page 24).
• Harsh noise that could harm your ears or the speakers
is
generated when a
DVD
recorded
in
DTS is played while using a
decoder, etc., that
is
not DTS-compatible.
• When playing a copyright-protected 96kHz PCM
DVD,
the digital sound will be down sampled at 48kHz, even if you set
"LPCM SELECT' to "OFF" (refer to page 24).
Optical cable (commercially available)
• Optical cable (commercially available) may be damaged when bent at sharp angles. Ensure cables are
cpih~d
in loops with
a diameter of 6 inches (15cm)
or
more when storing them.
• Use a cable which is 9.8 feet (3m) or shorter.
• Insert cable plugs firmly into the connectprs when making connections.
• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.
-12
-
EN
