CONNECTIONS
Method 3
Best
COMPONENT
VIDEO
IN
000
S·VIDEO
IN
o
Method 2
Better
VIDEO
IN
o
R
Basic
audio
00
-<

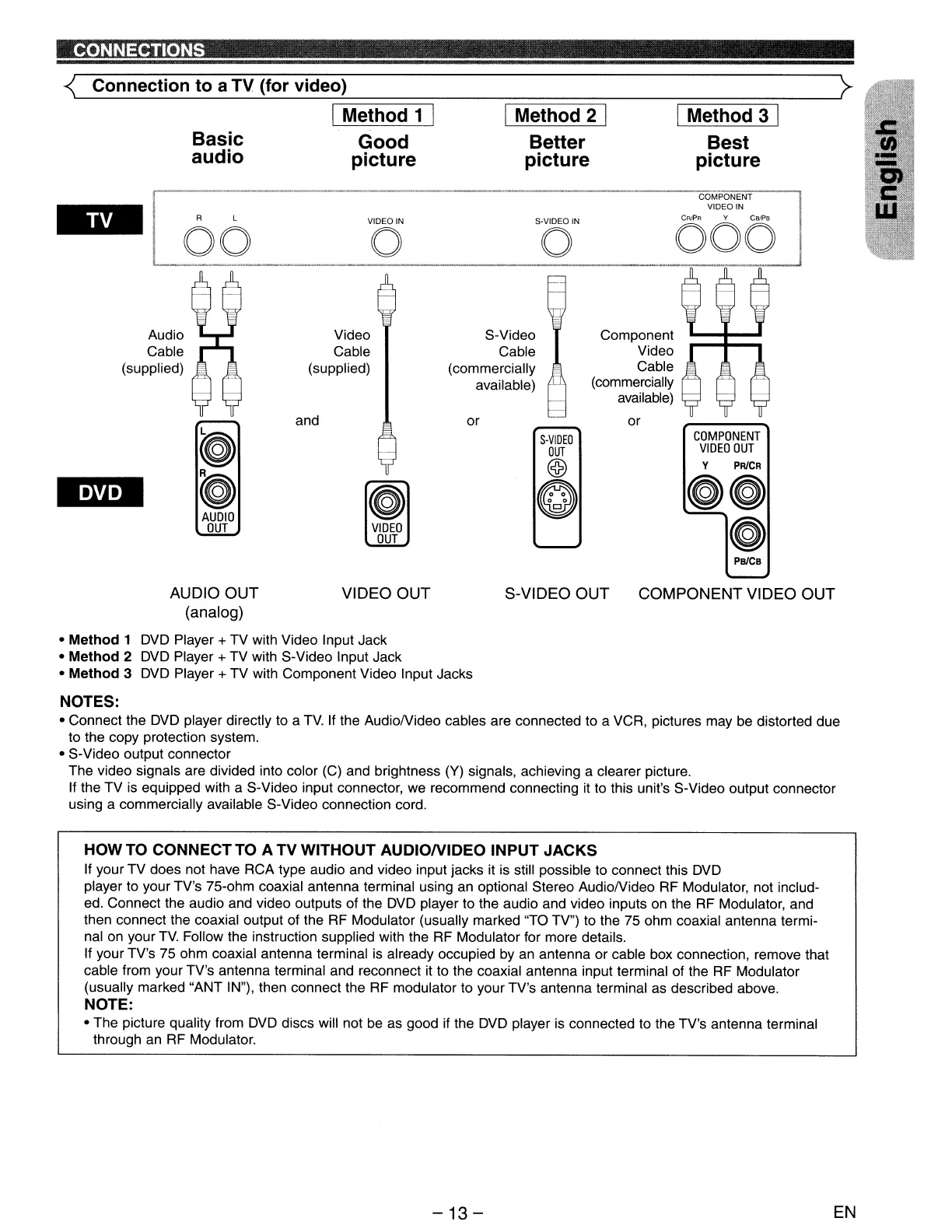

Connection to a TV (for video)
Method 1
Good
..
or
COMPONENT
VIDEO
OUT
Y
PRiCR
~~
~
Component
Video
Cable -
(commercially
available)
S-VIDEO
OUT
@
@
or
S-Video
Cable
(commercially
available)
~
VIDEO
OUT
Video
Cable
(supplied)
and
L
~
R
~
AUDIO
OUT
Audio
Cable
(supplied)
PBlCB
VIDEO OUTAUDIO OUT
(analog)
• Method 1 DVD Player + TV with Video Input Jack
• Method 2 DVD Player
+ TV with S-Video Input Jack
• Method 3 DVD Player
+ TV with Component Video Input Jacks
S-VIDEO OUT COMPONENT VIDEO OUT
NOTES:
• Connect the DVD player directly to a
TV.
If
the AudioNideo cables are connected to a VCR, pictures may
be
distorted due
to the copy protection system.
• S-Video output connector
The video signals are divided into color
(C) and brightness (Y) signals, achieving a clearer picture.
If
the TV
is
equipped with a S-Video input connector, we recommend connecting it to this unit's S-Video output connector
using a commercially available S-Video connection cord.
HOW TO CONNECTTO A TV WITHOUT AUDIONIDEO INPUT JACKS
If
your TV does not have RCA type audio and video input jacks it is still possible to connect this
DVD
player to your TV's 75-ohm coaxial antenna terminal using an optional Stereo AudioNideo
RF
Modulator, not includ-
ed. Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and
then connect the coaxial output of the RF Modulator (usually marked ''TO TV") to the 75 ohm coaxial antenna termi-
nal on your
TV.
Follow the instruction supplied with the RF Modulator for more details.
If your TV's 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that
cable from your TV's antenna terminal and reconnect
it
to the coaxial antenna input terminal of the RF Modulator
(usually marked "ANT IN"), then connect the RF modulator to your TV's antenna terminal as described above.
NOTE:
• The picture quality from
DVD
discs will not
be
as good if the
DVD
player is connected to the TV's antenna terminal
through an RF Modulator.
-13
-
EN
