Denon Heos 7 User Manual

o

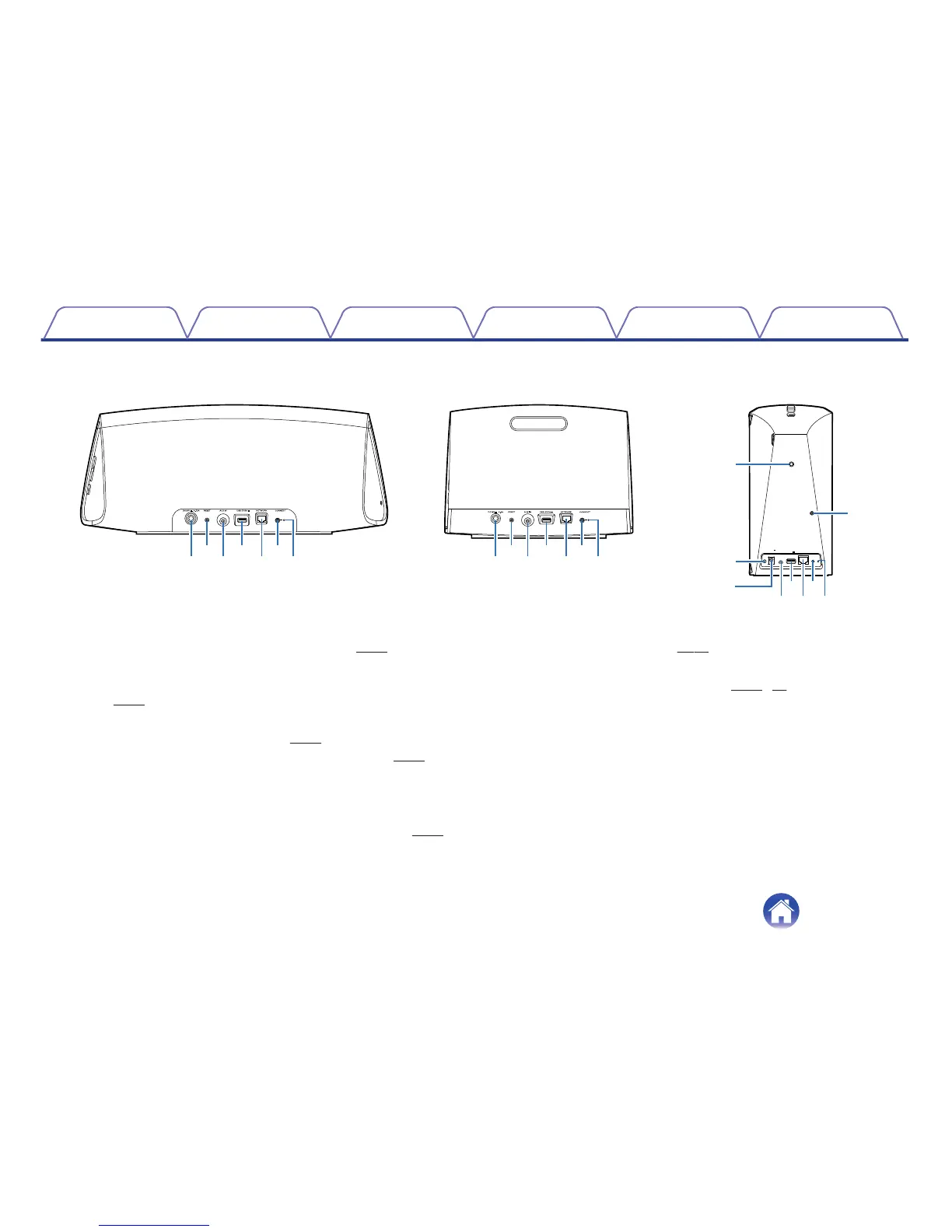

Back panel
.
e t u
r
q
w y
e t u
r
q
w y
DC18V
2.0ARESET AUX IN 5V/1A
USB
NETWORK CONNECT
w
i
o
q
e t u
r y
HEOS 7 HEOS 5 HEOS 3
A
Power Input (DC IN)
Used to connect the external power supply (v
p. 14).
B
Reset Button (RESET)
Various settings are reset to the factory default values
(v
p. 46).
C
AUX Input (AUX IN)
Used to connect audio devices (v
p. 20).
Used to add the speaker to your wireless network (v p. 16).
D
USB Input (USB 5V/1A)
Used to connect USB storage devices.
E
Network Connector (NETWORK)
Used to connect this unit to a wired Ethernet network (v
p. 16).
F
Connect Button (CONNECT)
Used for Wi-Fi setup (v
p. 46).
G
Connect in Status LED
Indicates the status of this unit (v p. 46, 49).
H
Threaded Mounting Hole
Used to mount this unit on a wall or ceiling.
I
Safety Wiring Hole
Used to prevent from dropping.
Contents Setup Use Troubleshooting Status LED Appendix
12

Denon Heos 7 Specifications

General

RMS rated power	- W
Audio output channels	- channels
Bluetooth	Yes
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Apple Lightning docking connector	-
USB connector type	USB Type-A
Product color	White
Volume control	Digital
AC input voltage	100 - 240 V
Power source type	AC

Weight and Dimensions

Depth	479 mm
Width	203 mm
Height	164 mm
