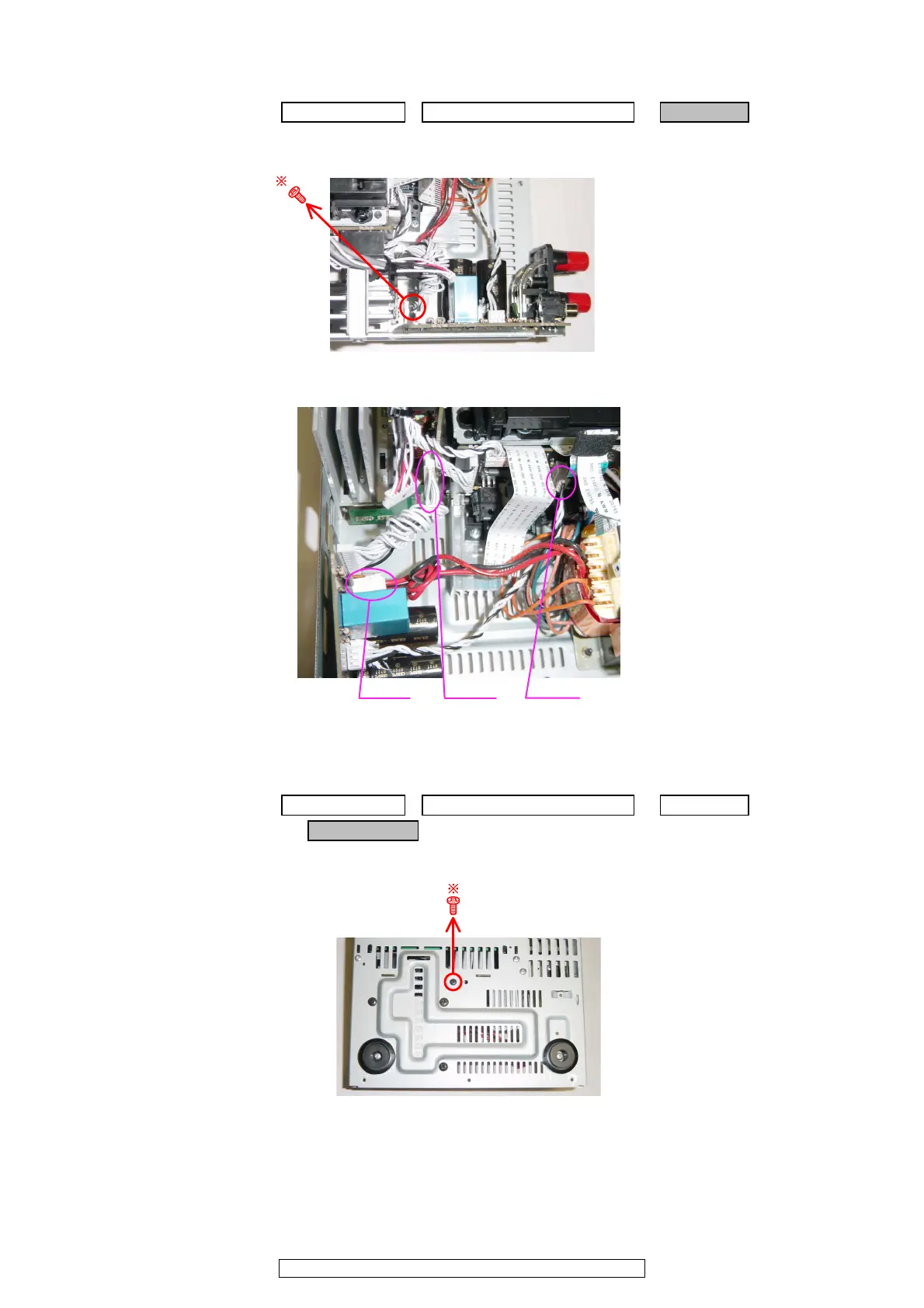

RCD-M37 / RCD-M37DAB / D-E500 / D-M37
7.
SPK UNIT
(1)
Remove the screws.
（ねじをはずす。
）
(2)
Disconnect the connector wires.
（コネクタワイヤーをはずす。
）
8.
GUIDE UNIT
(1)
Remove the screws.
（ねじをはずす。
）
proceeding
(手
順)
: TOP
CABINET
→
REAR PANEL SUB ASSY
→
SPK UNIT
C
CN92
CN97
CN99
E
proceeding
(手
順)
: TOP
CABINET
→
REAR PANEL SUB ASSY
→
SPK UNIT
:
→
GUIDE UNIT
Bottom
view
13
15
Table of Contents
Safety Information
2
Leakage Current Check
2
Caution Concerning Disassembly and Assembly
2
Inspect for Safety after Servicing
2
Laser Radiation
2
Dimensions
4
Wire Arrangement
5
Caution in Servicing
6
Initializing
6
Disassembly
7
The Viewpoint of each Photograph - Photography Direction
7
Loader Panel
8
Front Panel Sub Assy
8
CD Mecha
10
MCU P.W.B. Unit Assy
11
Heat Sink Sub Assy
11
Rear Panel Sub Assy
13
SPK Unit
14
Guide Unit
14
Trans
15
Disassembly of Mechanic
16
Chucking Plate
16
CD Tray
16
Note Handling and Replacement of the Laser Pick-Up
17
Protection of the LD
17
Cautions on Assembling and Adjustment
17
Determining Whether the Laser Pick-Up Is Defective
17
CD Test Mode
18
Troubleshooting
23
LCD Doesn't Light
23
No Sound, Noise Generated
24
AM/FM Tuner-In
26
Portable-In (Front-In)
26
DAB Tuner-In
27
USB Play
28
Ipod Play
28
Block Diagram
29
Level Diagram
30
Semiconductor
31
IC's
31
TMP92FD28AFG Block Diagram
32
Pin Function
33
Tc94A70Fg (Ic27)
35
TC94A70FG Terminal Function
36
T5Cc1 (Ic24)
40
Njw1153Fgi (Ic11)
43
NJW1153FGI Block Diagram
44
Stk4142Ii (Ic71)
44
Front View
44
Ta2125Af (Ic34)
45
TA2125AF Terminal Function
45
Ak4385 (Ic15)
46
FL Display - 16ST87G (FL81)
47
Printed Wiring Boards
49
MCU Unit PWB
49
Input Unit PWB
51
Main Unit PWB
53
Note for Parts List
55
Parts List of PWB Unit
56
MCU PWB Unit Ass'y Parts List
56
Input PWB Unit Ass'y Parts List
59
Main PWB Unit Ass'y Parts List
62
Exploded Views
68
Parts List of Exploded View
69
Packing Views and Parts Lists
73
Parts List of Packing & Accessories
73
Measuring Point
77
Waveforms
79
Wiring Diagram
81
Note for Schematic Diagram
82
Schematic Diagram
83
