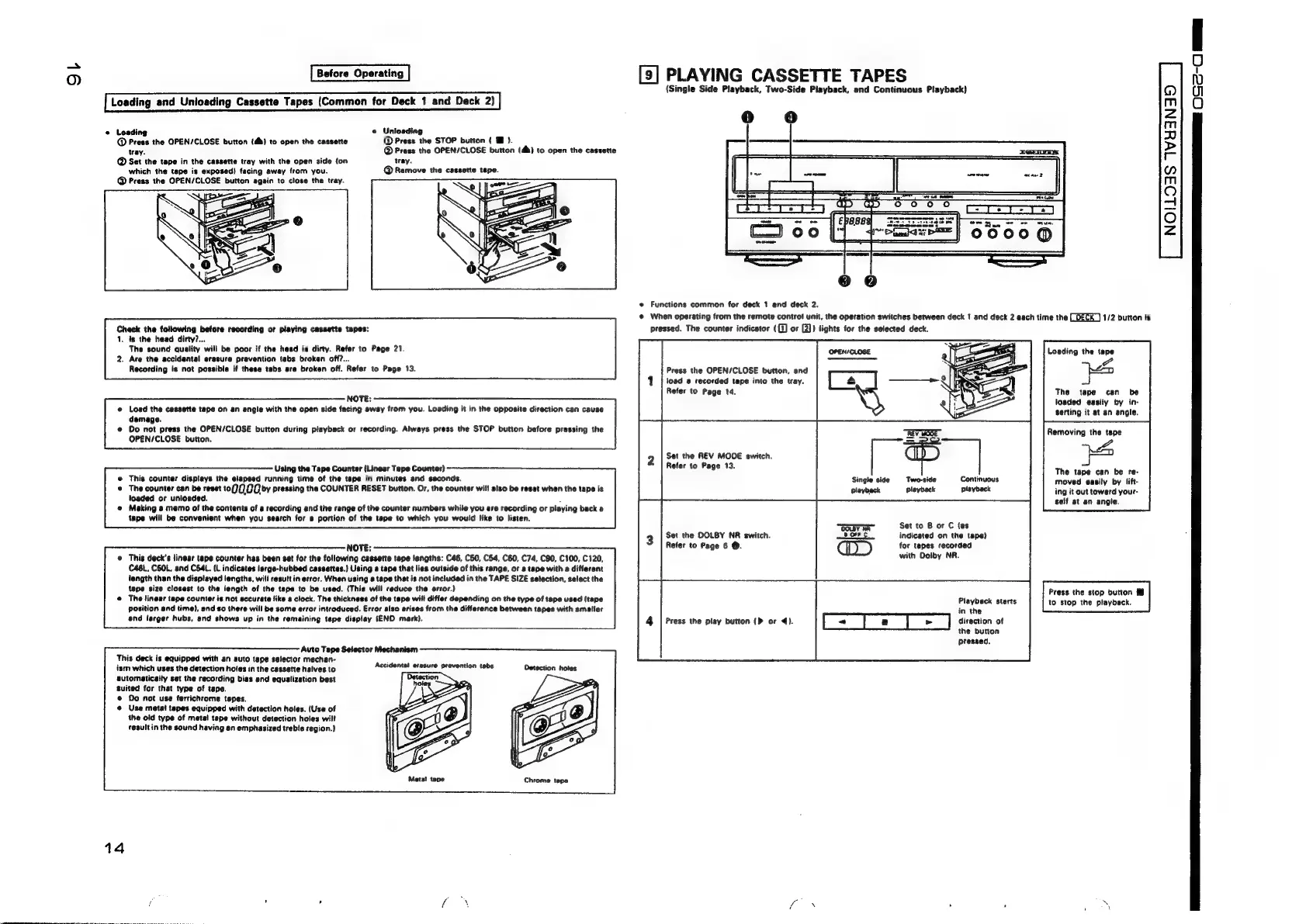

Before Operating
@ Loading
@ Press the OPEN/CLOSE button (@) to open the cassette
@ Set the tape in the cassette tray with the open side {on
@ Press the OPEN/CLOSE button again to close the tray.
e Unloading
@ Press the STOP button { @ ).
@ Press the OPEN/CLOSE button (@@) to open the cassette
tay.
@ Remove the cassette tape.
tray.
which the tape is exposed} facing away from you.
Check the following before recording or playing cassette tapes:
1
2.
ig the head dirty?...
The sound quality will be poor if the head is dirty. Refer to Page 21.
Are the accidental erasure prevention tabs broken off?...
Recording is not possible if these tabs sre broken off. Refer to Page 13.
NOTE:
Load the cassette tape on an angle with the open side facing away trom you. Loading it in the opposite direction can cause
damage.
Do not press the OPEN/CLOSE button during playback or recording. Always press the STOP button before pressing the
OPEN/CLOSE button.
Using the Tape Counter (Linear Tape Counter)
This counter disptays the elapsed running time of the tape in minutes and seconds.
The counter can be reset to) 0 (by pressing the COUNTER RESET button. Or, the counter will also be reset when the tape is
loaded or unloaded. :
Making 8 memo of the contents of a recording and the range of the counter numbers while you sre recording or playing back a
tape will be convenient when you search for 8 portion of the tape to which you would like to listen.
NOTE:
This deck’s linear tepe counter has been set for the following cassette tape lengths: C46, C50, C54, C60, C74, C90, C100, C120,
C46L, CSOL, and C5AL. IL indicates lerge-hubbed cassettes.) Using a tape that lies outside of this range, or 8 tape with a different
fength than the displayed lengths, will result in error. When using a tape that is not included in the TAPE SIZE selection, select the
tepe size closest to the length of the tape to be used. (This will reduce the error.)
The linear tape counter is not accurate like a clock. The thickness of the tepe will differ depending on the type of tape used (tape
position and time), and so there will be some error introduced. Error also arises from the difference between tapes with smaller
and larger hubs, and shows up in the remaining tepe display (END mark).
Auto Tape Selector Mechanism
This deck is equipped with an auto tape selector mechan-
ism which uses the detection holes in the cassette halves to
Accidental erasure prevention tabs
automatically set the recording bias and equalization best
suited for that type of tape.
14
Do not use ferrichrome tepes.
Use meta! tapes equipped with detection holes. (Use of
the old type of metal tepe without detection holes will
result in the sound having an emphasized treble region.)
Metal tape Chrome tape
[9] PLAYING CASSETTE TAPES
(Single Side Playback, Two-Side Playback, and Continuous Playback)
DEES
e Functions common for deck 1 and deck 2.
@ When operating from the remote contro! unit, the operation switches between deck 1 and deck 2 each time the 1/2 button is
pressed. The counter indicator ({i) or [Z]) lights for the selected deck.
Loading the tape
—_
The tape can be
loaded easily by in-
Serting it at an angle.
Press the OPEN/CLOSE button, and
load a recorded tape into the tray.
Refer to Page 14.
Removing the tape
ie
The tape can be re-
moved easily by ift-
ing it out toward your-
self at an angle.
Set the REV MODE switch.
Refer to Page 13.
Two-side
Playback
Single side
bDlayback
Set to B or C (es
indicated on the tape)
for tapes recorded
with Dolby NR.
Set the DOLBY NR switch.
Refer to Page 6 @.
Playback starts
in the
direction of
the button
pressed.
Press the play button (> or 4).
Q
m
Zz
m
wv
>
r-
”
m
O
=.
O
Zz
