ASSEMBLY & SETUP LAC/LFC Series Oven Owner’s Manual
32 Version 1.12
Copyright © 2018 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.

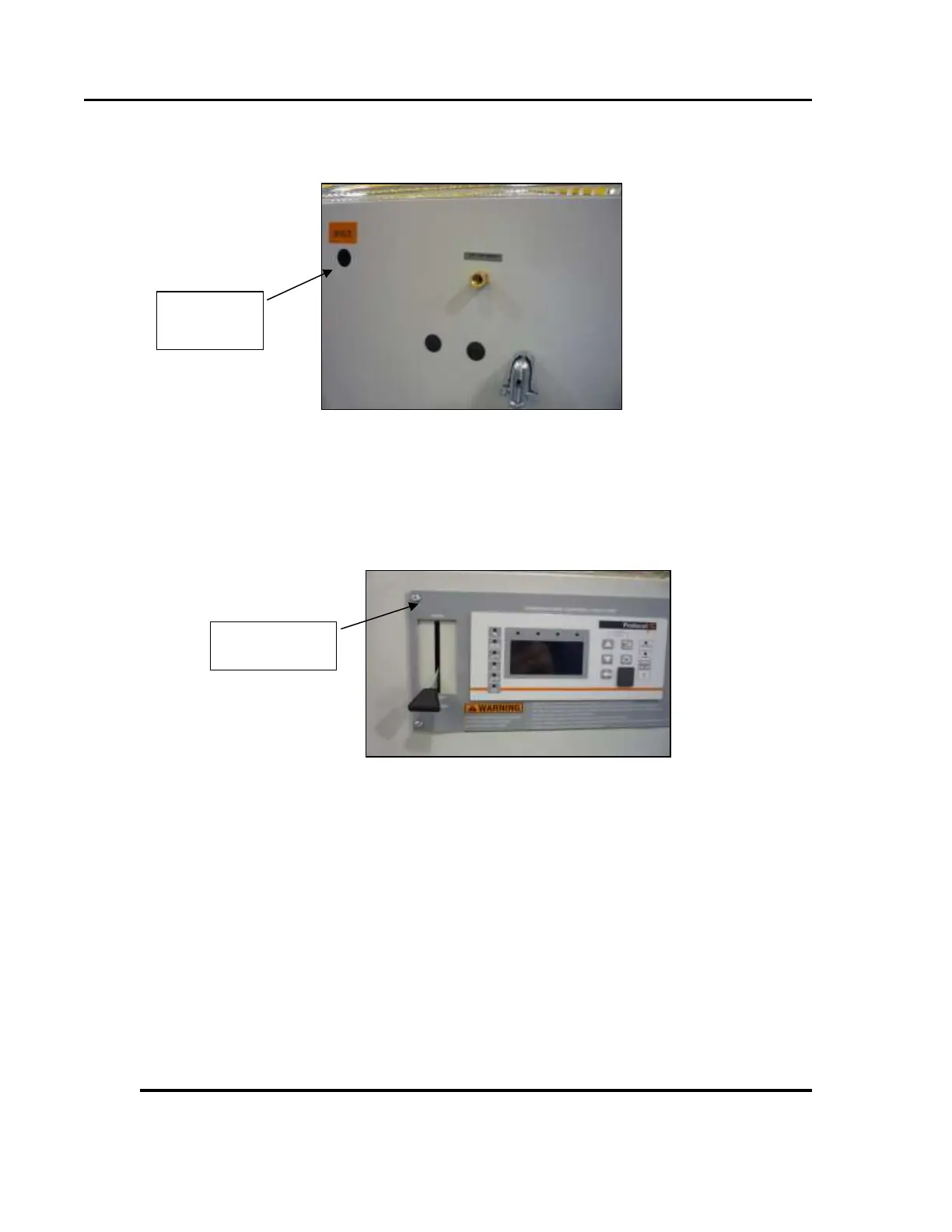

Figure 10. Rear Access Panel for Hard-Wired Connections.
2. Remove the top panel for easy access to power connection, remove controller if necessary for
more room and easier access. (Figure 11).
3. Connect power at main circuit board, terminals L1 and L2 (Figure 12).
a. Tighten terminals on the circuit board to 10.6 to 13.2 lb-in (1.2 to 1.5 Nm)
b. Attach the ground wire to the ground buss on the panel.
c. Close hinged control panel after attaching the power supply wires or cord.
Figure 11. Control panel removal.
