6.7.2. Replace Heater Unit
Tools needed: 3/8" wrench, T20
Torx bit driver
1. Remove the ceiling plate.
a. Remove the
screws from the
plate (Figure 20).
b. Slide the ceiling plate out of the oven
to expose heater panel/inlet cone
(Figure 21).
2. Disconnect the heater leads from heater element with wrench.
Before disconnecting leads, carefully
diagram (or note) which wires connect to
which terminals.

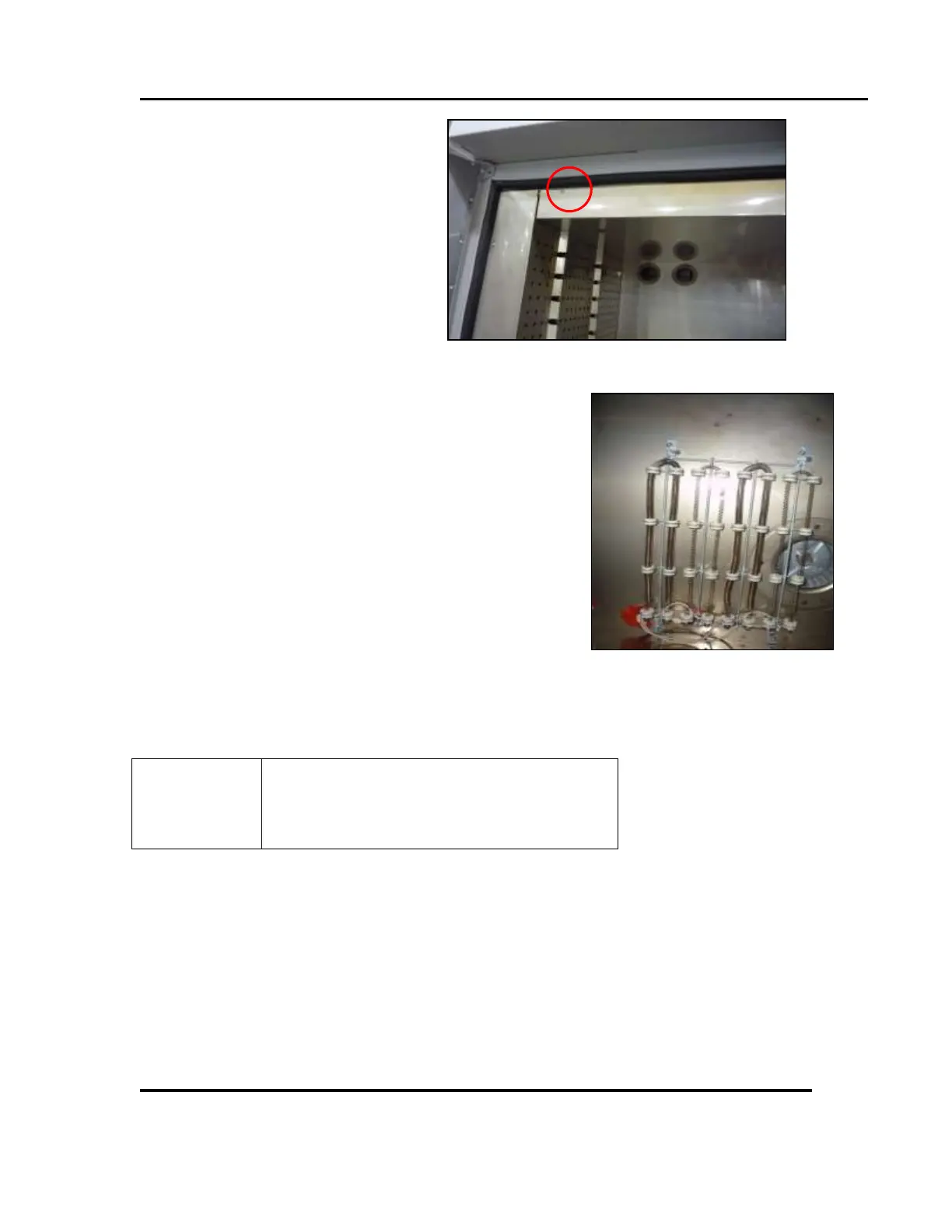

Figure 20. Remove Screws to Remove Ceiling Plate.
Figure 21. Heater Panel and Inlet Cone.
