DeWalt DCN691 User Manual

English
15
Loading the Tool
(Fig. H)
WARNING: Keep the
tool pointed away from
yourself and others.
WARNING: Never load
nails with the contact
trip or trigger
activated.
WARNING: Always
remove battery pack
before loading or
unloading nails.
CAUTION: Keep fingers
clear of pusher latch
track to prevent
injury.
WARNING: The trigger
lock-off should always
be engaged whenever
any adjustments are
made or when tool is not
in use.
1. Turn the nailer upside
down.
2. Slide the spring-
loaded pusher latch 8
to the base of the
magazine to lock it

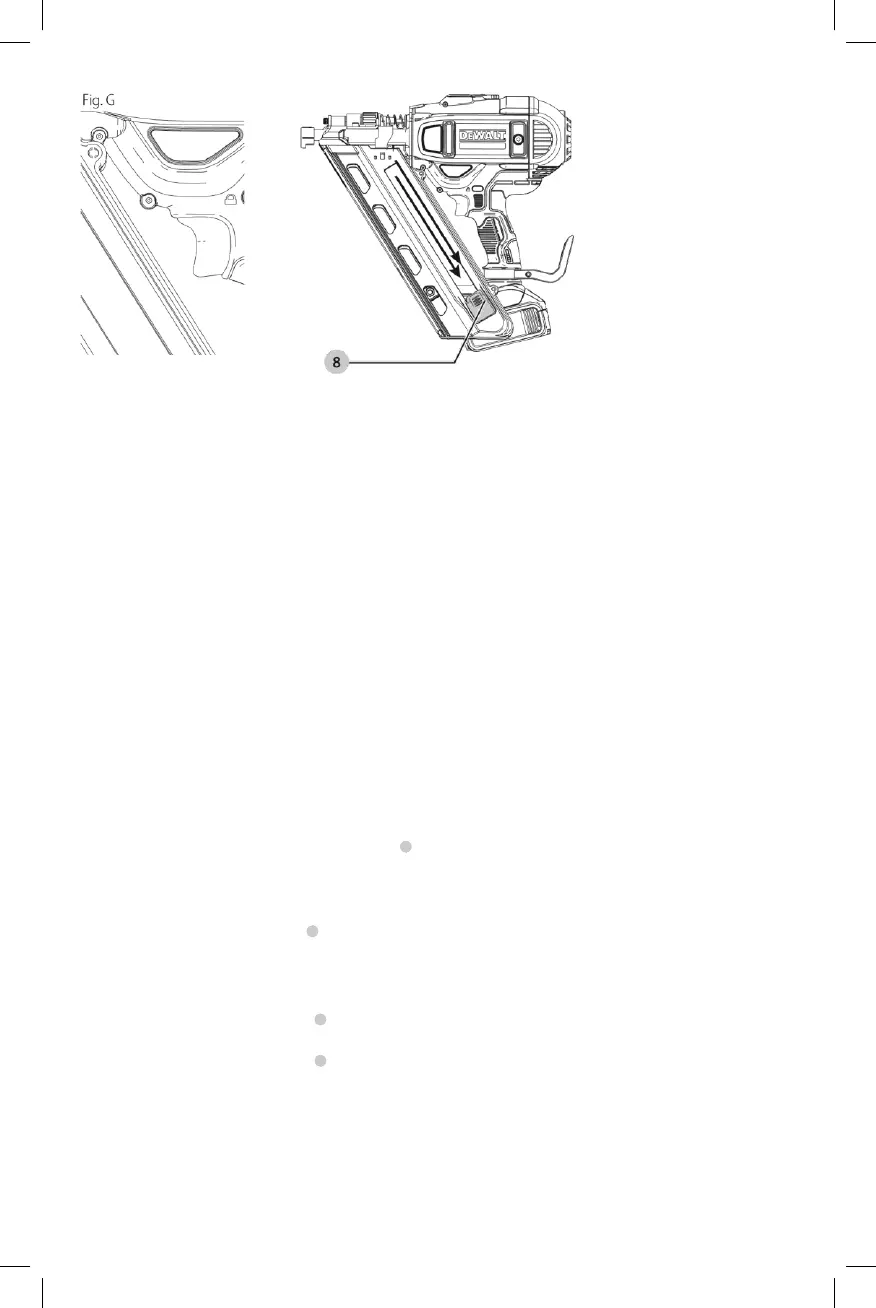

into place. Fig. H
3. Drop nail strips into the loading slot of the magazine, making sure the nail heads
align correctly with the slot opening. (Refer to Nail Specifications to determine
compatible size.)
4. Keeping fingers clear of the track, close the magazine by releasing the pusher
latch. Carefully allow the latch to slide forward and engage the nail strip.
Unloading the Tool
WARNING: The trigger lock-off should always be locked off whenever any
adjustments are made or when tool is not in use.
1. Slide the spring-loaded pusher latch to the base of the magazine to lock it into
place.
2. Tip the tool up until the fastener strip slides freely out of the magazine.
3. With battery removed, check the nosepiece to verify there are no nails
remaining.
nOTE: The tool is equipped with a magnet in the nose area for improved tool
performance. When unloading, always verify that the small sticks of nails are not
held to the magnetized nose piece.
Adjusting Depth (Fig. I)
The depth that the nail is driven can be adjusted using the depth adjustment
wheel 4 on the nose of the tool.
WARNING: To reduce risk of serious injury from accidental actuation when
attempting to adjust depth, ALWAYS:
• Remove battery pack
• Engage trigger lock-off.
• Always point the nose of the nailer away from you.
• Avoid contact with trigger during adjustments.
1. To drive the nail shallower, rotate the depth adjustment wheel 4 to the left,
toward the shallow nail icon.
2. To drive a nail deeper, rotate the depth adjustment wheel 4 to the right,
toward the deeper nail icon .
