7
E. Installing Unit

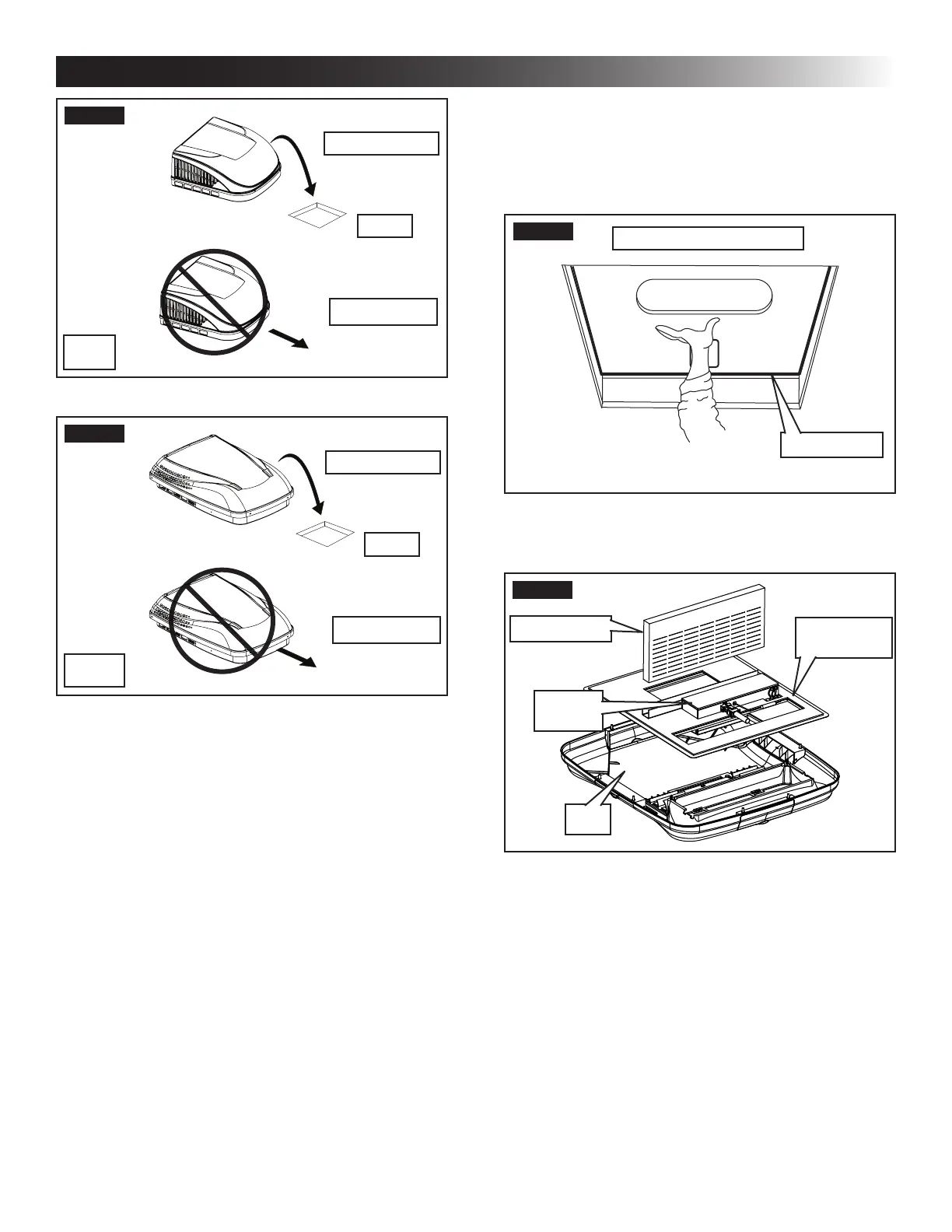

1. Check gasket alignment of the unit over the
roof opening and adjust if necessary. Unit may
be moved from below by slightly lifting. See
(FIG. 9).
FIG. 9
Center Unit From Below
Roof Gasket
2. Remove ADB and mounting hardware from car-
ton. See (FIG. 10).
FIG. 10
Duct Divider
Ceiling
Template
ADB
Control
Box
3. All models in this manual will use a four (4) bolt
pattern for installing the ADB.
4. Reach up into the return air opening of the unit
and pull the unit electrical cord down for later
connection. See (FIG. 11).
Model
B59530
FIG. 7
Do Not Slide
Lift And Place
Front
FIG. 8
Model
640310C
Do Not Slide
Lift And Place
Front
4. Place the ADB kit inside the RV. This box con-
tains mounting hardware for the unit and will be
used inside the RV.
This completes the outside work. Minor
adjustments can be done from inside the
RV if required.
INSTALLATION INSTRUCTIONS
