6
INSTALLATION INSTRUCTIONS
A. Choosing Proper Location For Unit
This unit is specically designed for installation on the roof
of a recreational vehicle (RV). When determining your
cooling requirements, the following should be considered:
● Size of RV;
● Window area (increases heat gain);
● Amount of insulation in walls and roof;
● Geographical location where the RV will be
used;
● Personal comfort level required.
1. For one unit installation: The unit should be
mounted slightly forward of center (front to back)
and centered from side to side.
2. For two unit installations: Install one unit 1/3 and
one unit 2/3’s from front of RV and centered from
side to side.
It is preferred that the unit be installed on a relatively at
and level roof section measured with the RV parked on a
level surface. See table below for maximum acceptable tilt.
Model
Number
Max
Tilt
Model
Number
Max
Tilt
Model
Number
Max
Tilt
457915
B57915
B57935
459186
B59186
459196
B59196
459516
B59516
459530
15° B59530
B59536
540315
540316
541815
541816
541915
541916
551816
551916
15° 640312
640315
641815
641816
641835
641915
641916
641935
651815
651816
651916
8°

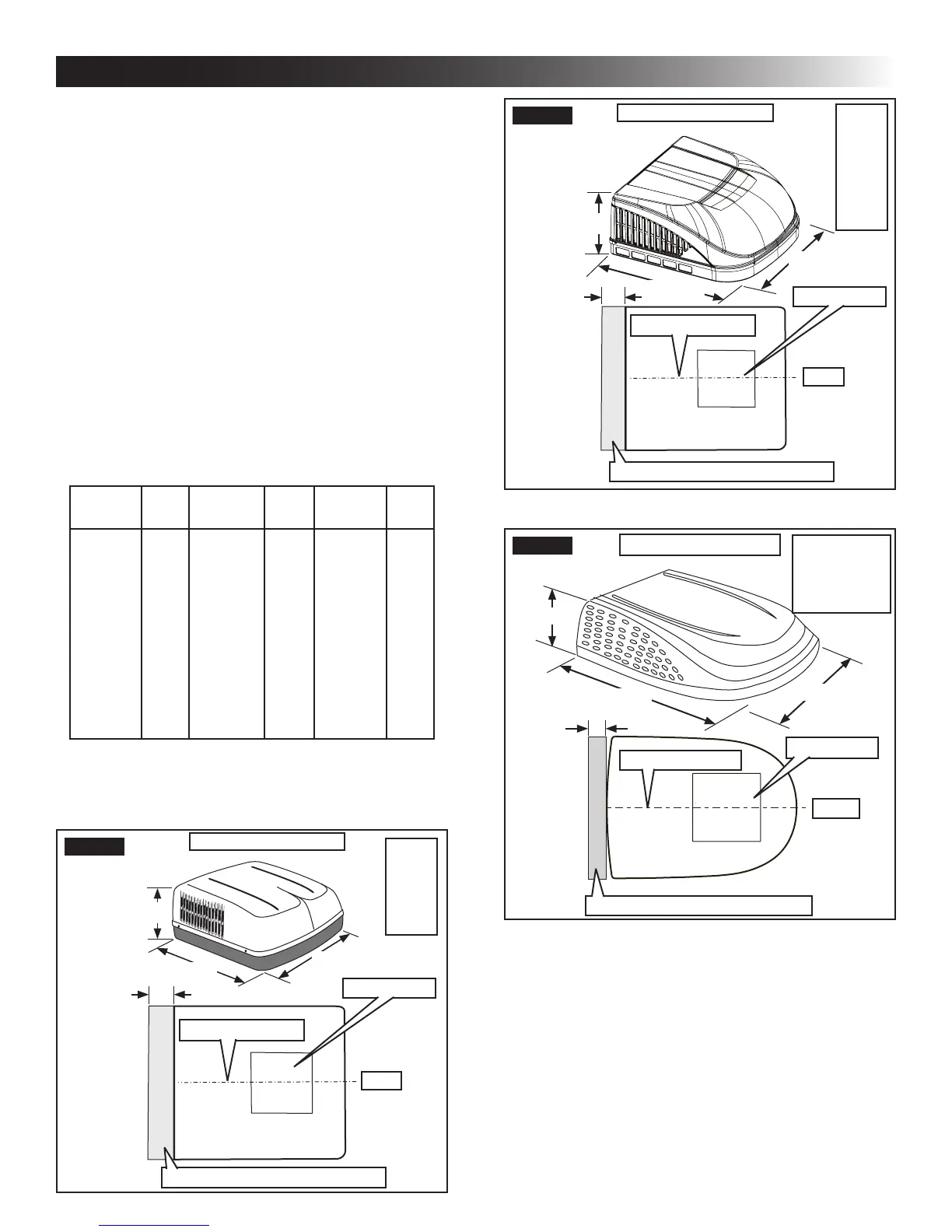

3. After Location Has Been Selected:
a. Check for obstructions in the area where
unit will be installed. See (FIG. 1), (FIG. 2),
(FIG. 3), (FIG. 4), & (FIG. 5).
Model
457915
459186
459196
459516
459530
29-7/8″
34-7/8″
13-1/8″
18″
Front
Dimensions Are Nominal
FIG. 1
Keep This Area Free Of Obstructions
Roof Opening
Center Line Of Unit
FIG. 2
Dimensions Are Nominal
Roof Opening
Keep This Area Free Of Obstructions
Center Line Of Unit
Front
18″
12-7/8″
29-5/8″
27-5/8″
Model
B57915
B57935
B59186
B59196
B59516
B59530
B59536
FIG. 3
Dimensions Are Nominal
Keep This Area Free Of Obstructions
Front
Center Line Of Unit
Roof Opening
18″
13″
39-5/8″
29-7/8″
Model
540315, 540316
541815, 541816
541915, 541916
551816, 551916
To Next Page
