Dometic CapTouch User Manual

4
EN
Specifications CapTouch Cabin Control
Additional Parts
1
DX CW
Required for CW Installations (not included)
Water Inlet Temperature Sensor X
Optional Parts
Outside Air Temperature (OAT) Sensor X X
Inside Air Temperature Sensor X X
Auxiliary Electric Heater X X
Room Temperature/Relative Humidity
Combination Sensor
X X
Seawater Low-Limit Temperature Sensor X
Pump Sentry Water Sensor X
1
Additional parts are not included with the standard control package.
I
The maximum length for the display and sensor
cables is 75  (22.9 m).

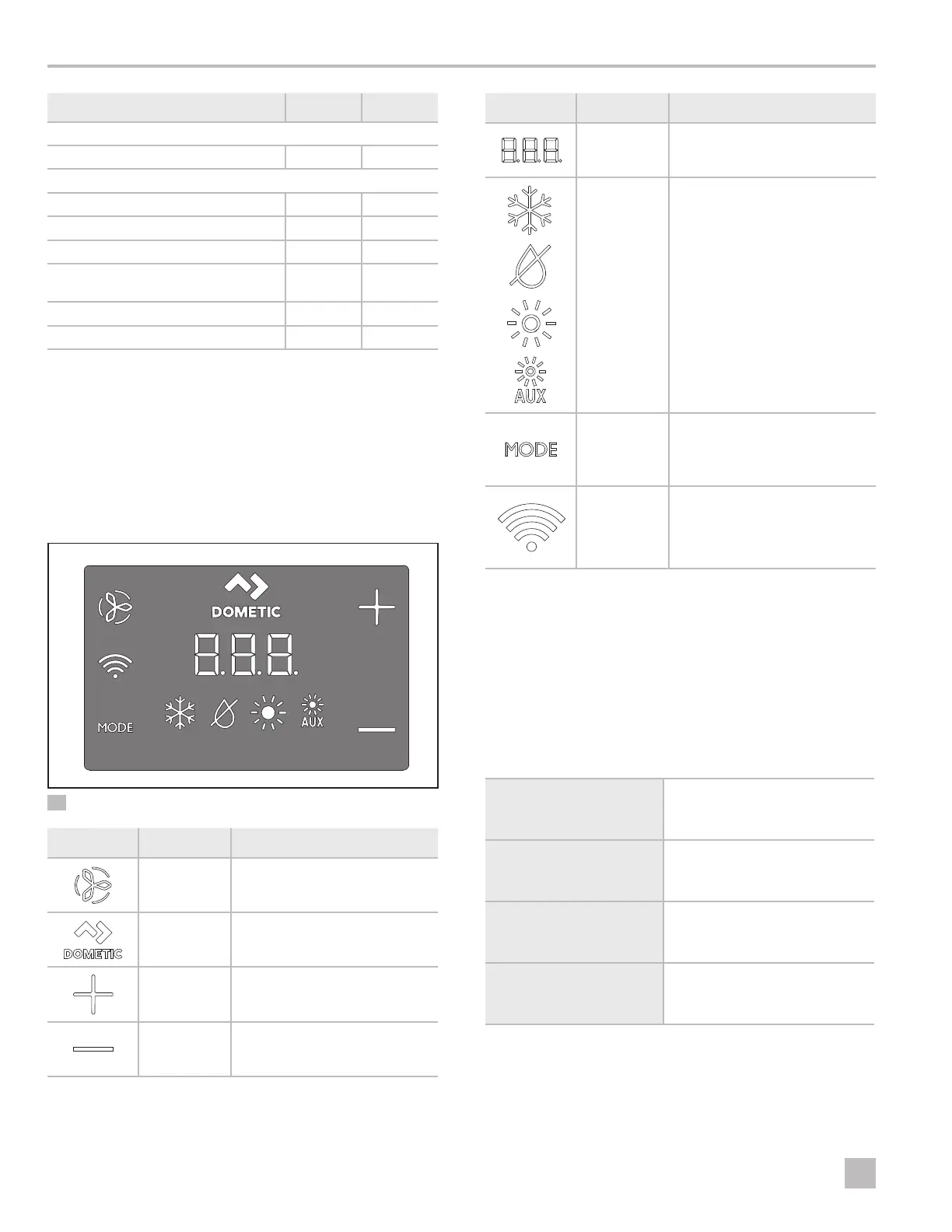

3.2 Display Features
This section explains the function of the icons on the
CapTouch and CapTouch Wi-Fi displays.
1 CapTouch Wi-Fi Control Display
Icon Name Function
Fan
Cycles through the different fan
speeds
Dometic
Brand identification. No
operational function
Up Raises the temperature set point
Down Lowers the temperature set point
Icon Name Function
Temperature
Indicator
Displays the inside, set point,
outside, and water temperatures,
as selected
Mode
Indicator
Indicates the current display mode
HVAC Mode
• Cycles through the different
modes
• Sends the display to sleep if
held for three seconds
Wi-Fi
Indicator
• Applicable to CapTouch Wi-Fi
model only
• Indicates Wi-Fi is active if lit.
4 Specifications
The following table lists the CapTouch control
dimensions, cable lengths, system inputs, and
operational specifications.
4.1 Product Dimensions
Display Panel Dimensions
for the Idea Bezel
4.4 in. x 3.0 in.
(112 mm x 76 mm)
Display Panel Dimensions
for the Eikon Bezel
4.5 in. x 2.9 in.
(114 mm x 74 mm)
Cut-Out Dimensions for
the Idea Bezel
2.3 in. x 3.5 in.
(58 mm x 89 mm)
Cut-Out Dimensions for
the Eikon Bezel
1.9 in. x 2.8 in.
(48 mm x 71 mm)
