18
EN
Refrigerator

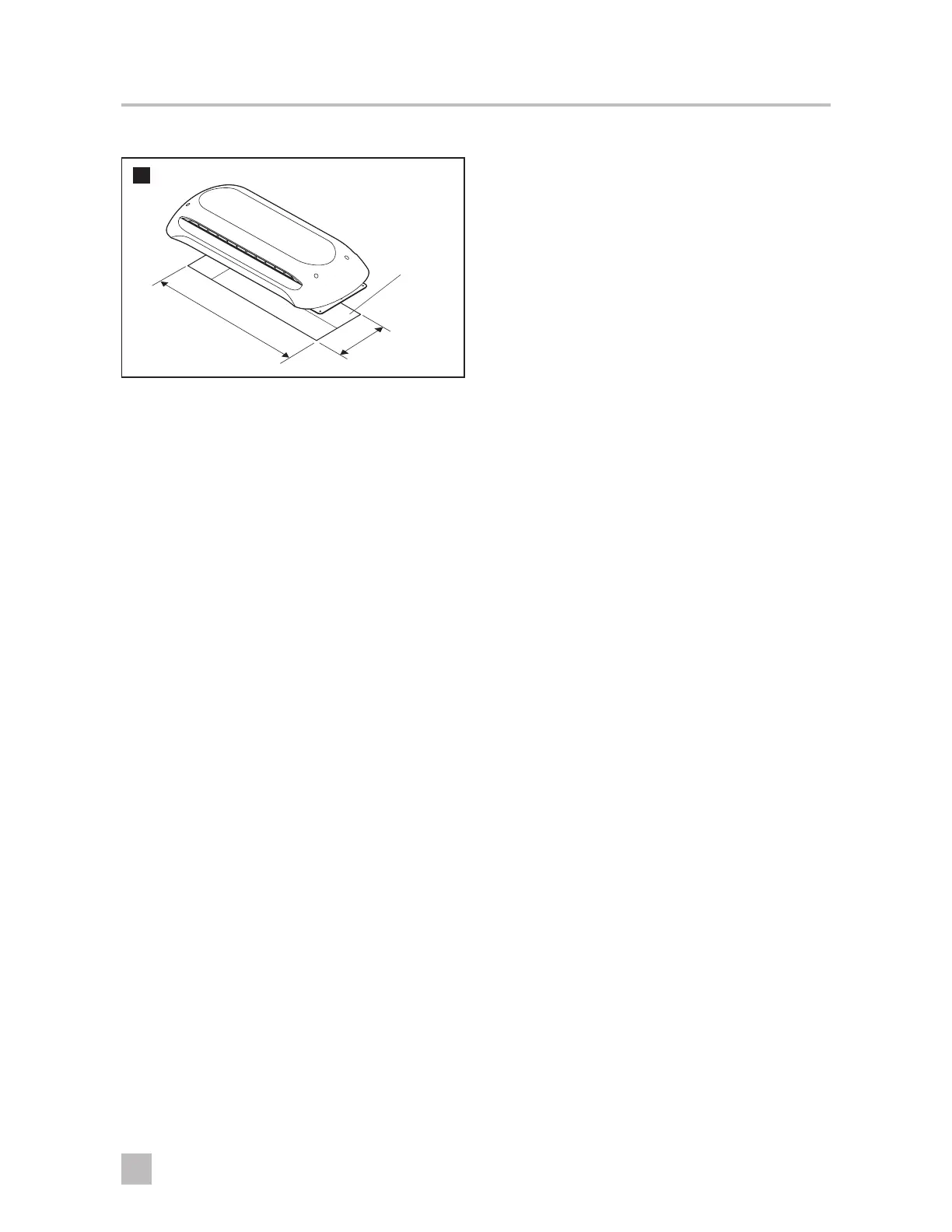

Plastic roof vent (No. 3311236.xxx)
12
23-3/4"
6-1/2"
Cutout
➤ Confirm ventilation height. Refer to "4.4 Minimum ventilation heights" on page 9.
➤ Confirm the recess depth. Refer to "5.5 Recess depth" on page 22.
➤ Install a box baffle, if required.
➤ Install the lower side vent. Refer to "Side vents" on page 19.
➤ Center the roof vent base over the cutout.
➤ Secure the roof vent base using sixteen #10 screws (not provided).
➤ Place the cap on top of the base.
➤ Secure the cap to base using four #10 screws (not provided). The screws must be a minimum of 1-1/4".
➤ Apply sealant over all the screws.
Upper and lower side application
➤ Confirm ventilation height. Refer to "4.4 Minimum ventilation heights" on page 9.
➤ Confirm the recess depth. Refer to "5.5 Recess depth" on page 22.
➤ Install a box baffle above the lower access vent, if required.
➤ Install the lower side vent.
➤ Install the upper side vent.
I
Refer to "Side vents" on page 19 for specific instructions on installing the side vents.
