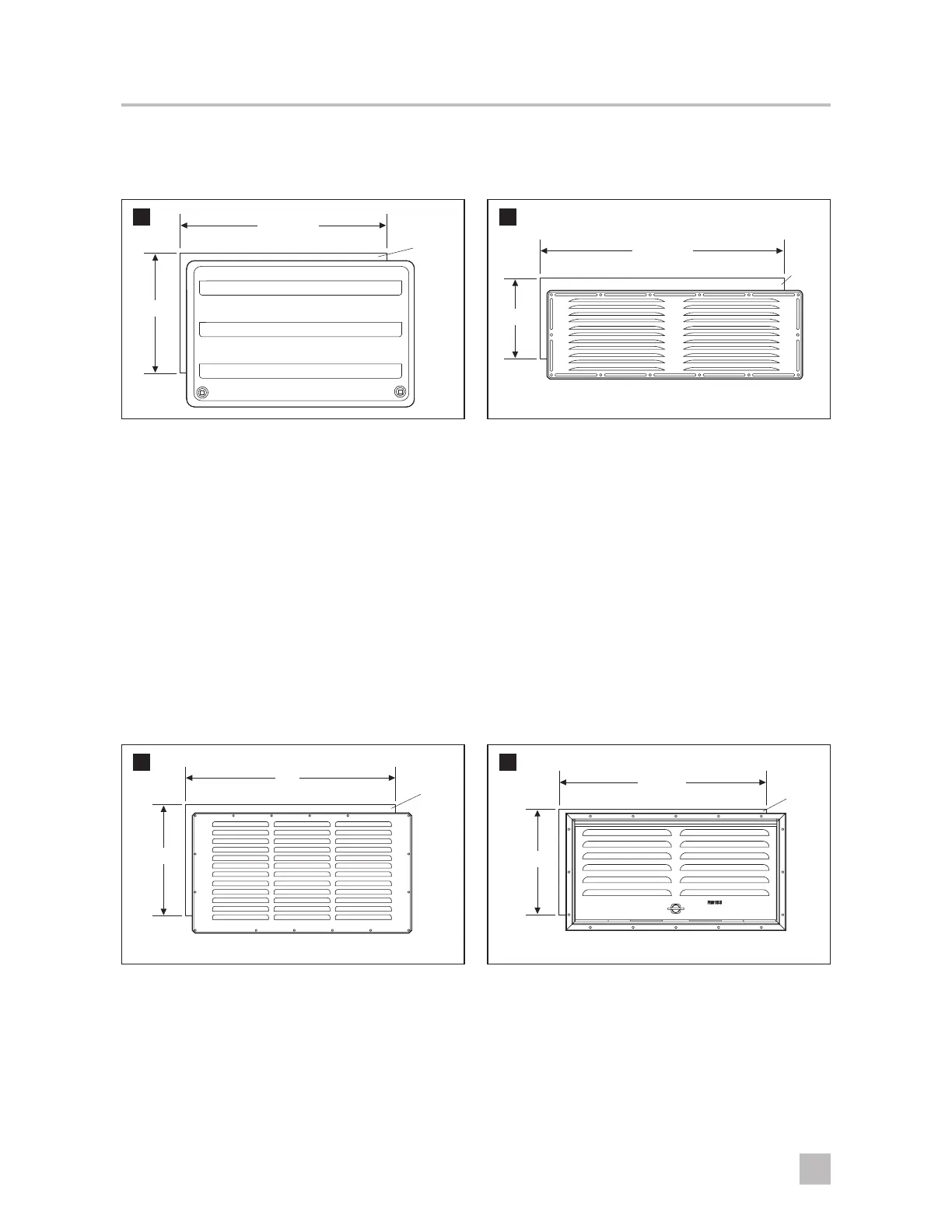

Side vents
Upper and Lower Plastic Side Vent
(No. 3109350.xxx)
13
21-9/16"
13-3/4"
Cutout
➤ Place the frame into the cutout.
➤ Secure the frame using seven #10 screws (not
provided) through the inside flange of the frame.
I
Seven Z-brackets could be used if the wall is
of laminate construction. Use #10 screws (not
provided) to secure the frame with Z-brackets.
➤ Install the vent door into the frame using the upper
tabs as a guide.
➤ Lock the vent door into place by fully seating and
twisting the black latches in the bottom corners of
the vent door.
Upper Metal Side Vent (No. 3100451.xxx)
14
19-1/4"
7-3/4"
Cutout
➤ Place the vent over the cutout.
➤ Secure the frame using fourteen #10 screws Not
provided).
I
Rivets could be used for this vent.
Upper Metal Side Vent (No. 80301223xx)
15
10-1/4"
21"
Cutout
➤ Place the vent over the cutout.
➤ Secure the frame using sixteen #10 screws (not
provided).
I
Rivets could be used for this vent.
Lower Metal Side Vent (No. 3102364.xxx,
80302113xx)
16
9-11/16"
19-1/4"
Cutout
➤ Place the vent over the cutout.
➤ Secure the frame using sixteen #10 screws (not
provided).
I
Rivets could be used for this vent.
