Dometic DM2663 Installation Manual

22
EN
Refrigerator

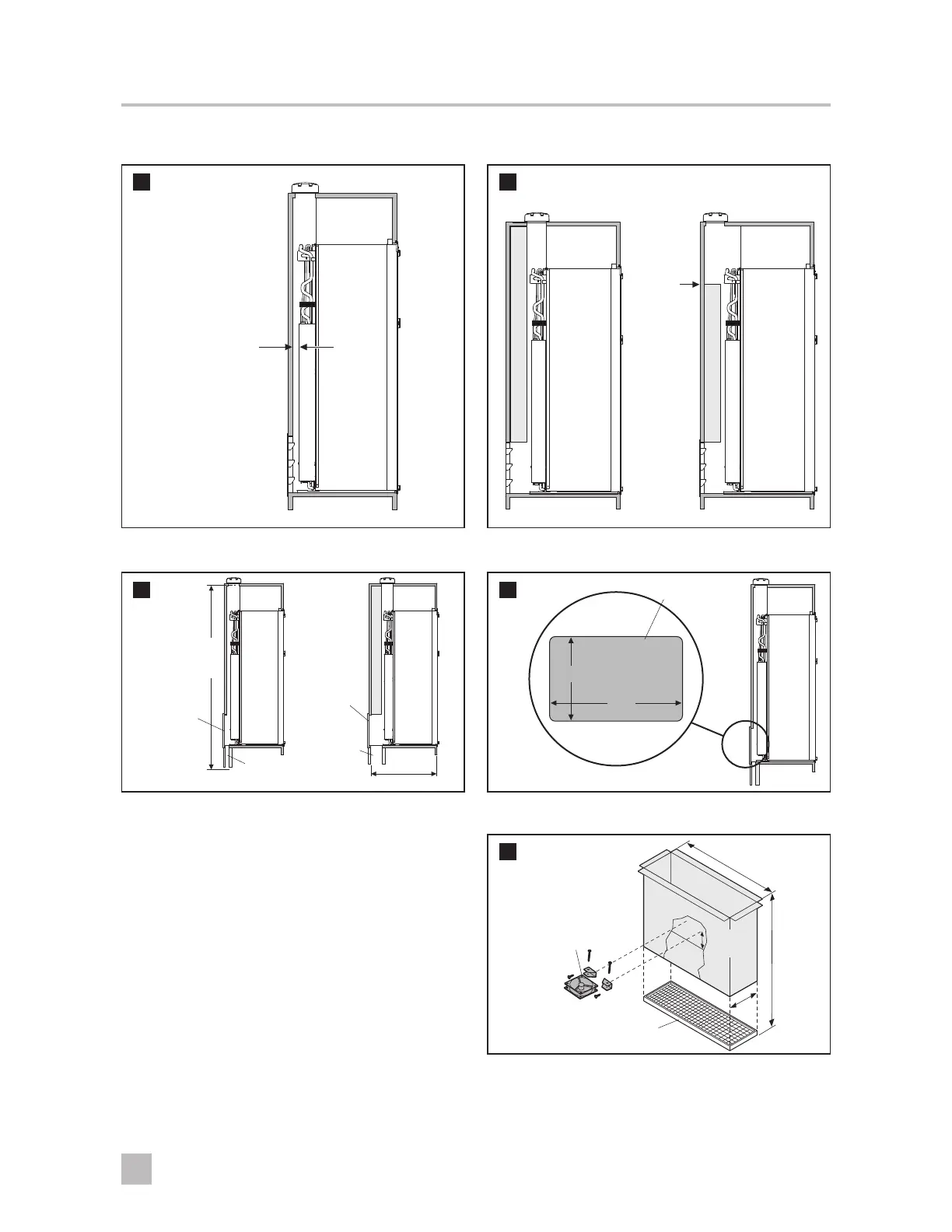

5.5 Recess depth
24
Max. 1"
(without baffle)
Side
View
25
Box Baffle
Box Baffle
1/2"
Below
Fins
Side
View
Island application
26
Duct
and Fan
Duct
and Fan
Access
Panel
Access
Panel
Recess Depth
Box Baffle
Minimum
Ventilation
Height
➤ Confirm the ventilation height. Refer to "4.4
Minimum ventilation heights" on page 9.
➤ Confirm the recess depth. Refer to"5.5 Recess
depth" above.
➤ Install a box baffle above the lower access panel, if
required.
27
Access Panel
14"
22"
➤ Install the access panel.
28
Fan
(Centered
Horizontally)
1/4" x 0.025"
Metal Mesh
L
D
Min. 3"
Max. 8"
W
➤ Install the air duct.
➤ Install the roof vent. Refer to "Roof vent
application" on page 17.
