13
AC COMPONENTS
HEATING ELEMENT
You should obtain the following readings ± 10%:
MODEL WATTS VOLTS OHMS
S1521 185 120 78
S1531 195 120 78
S1621 325 120 44
S1631 325 120 44
S1821 325 120 44
S1831 325 120 44
RM2607 295 120 48
RM2611 295 120 48
RM2807 325 120 44
RM2811 325 120 44
RM3607 295 120 48
RM3807 325 120 44
RM3662 325 120 44
RM3663 325 120 44
RM3862 325 120 44
RM3863 325 120 44
RM4872 325 120 44
RM4873 325 120 44
DC VOLTAGE REQUIREMENTS
The operational range of the unit is a minimum of 9.6V DC to a maximum of 22V DC, the unit will
automatically shut down until voltage has decreased to 18V DC. The refrigerator requires at least 9.6V
DC for proper operation; however the panel lights will continue to illuminate until voltage has dropped to
4V DC or below.
Do not use the body or chassis of the RV as a substitute for either of the two conductors. Proper polarity
is crucial for refrigerator operation.

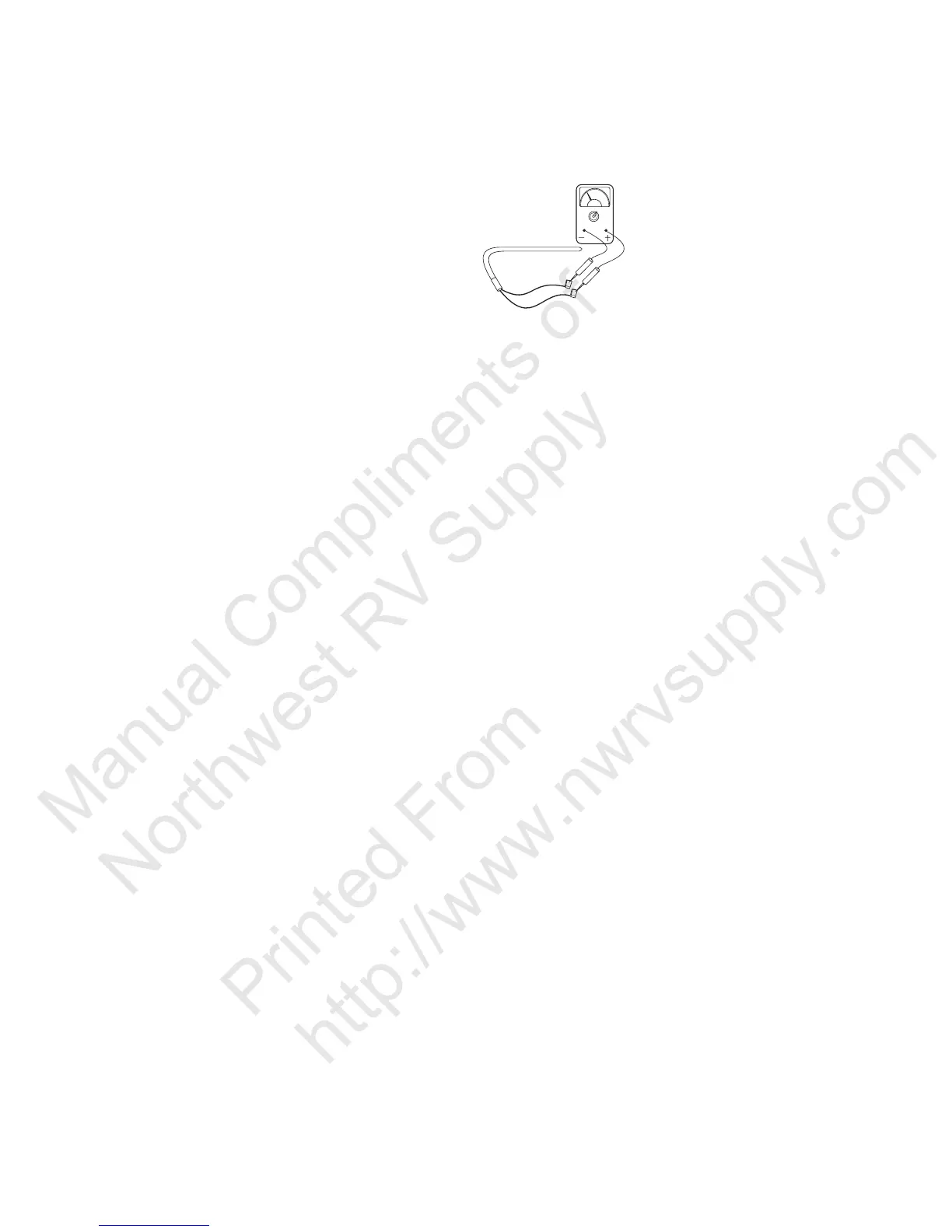

Remove the heater leads from the lower circuit board and measure for proper resistance .
