WIRING
Refer to the wiring diagram supplied with the unit you are working on, and make sure all wiring connec-
tions are correct and tight.
THIS IS AN ENERGIZED CIRCUIT. ELECTRICAL SHOCK CAN OCCUR.
BEFORE CHECKING THESE COMPONENTS BE SURE THERE IS NO POWER TO THE APPLIANCE.
WATER SUPPLY
The water pressure in the water supply line must be between 15 Ibs. PSI and 125 Ibs. PSI.
Lower water pressure, water turned off, or obstructions or air in the water line can cause low or no ice
production.
AMES & AES

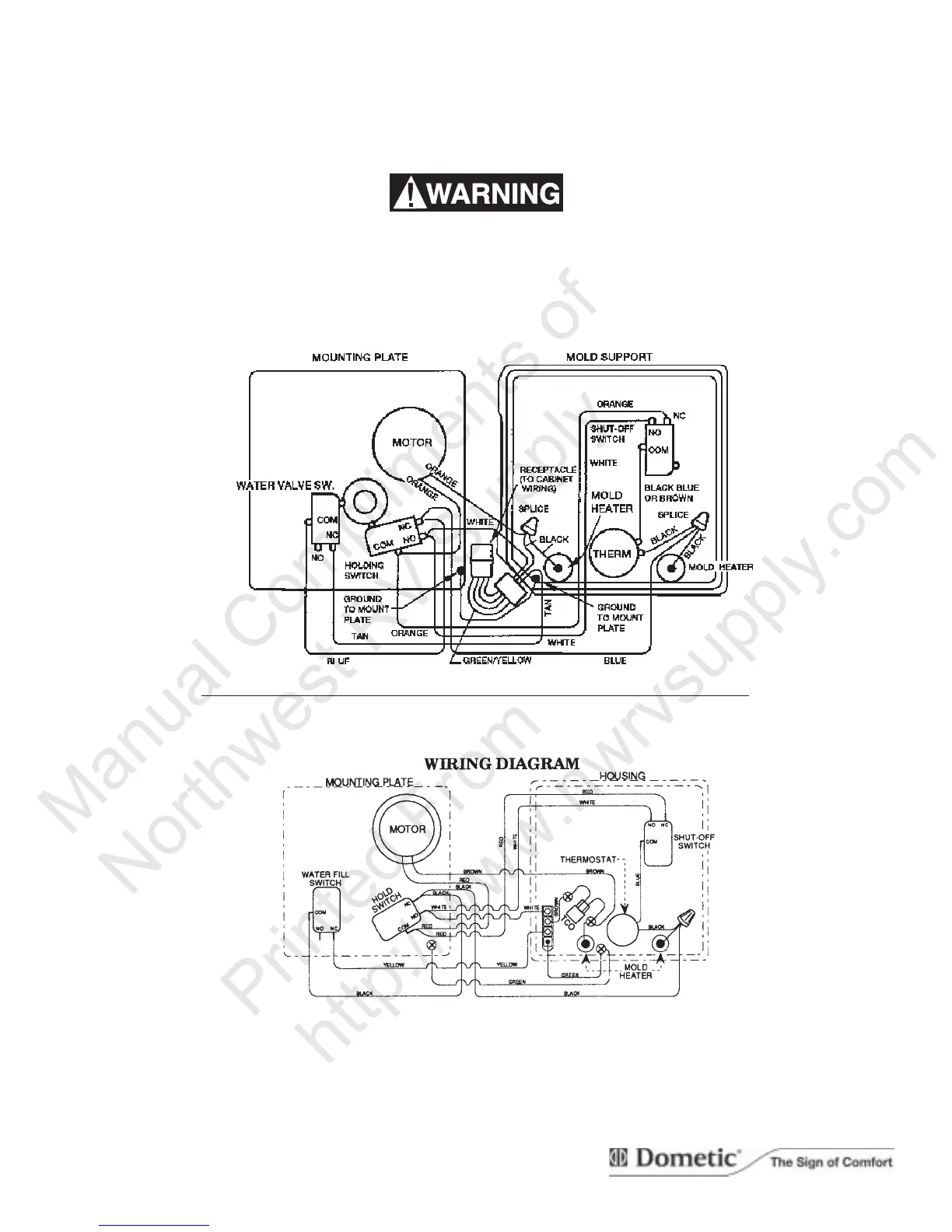

ICE MAKER TYPICAL WIRING DIAGRAM
ROYALE/ELITE ICE MAKER TYPICAL WIRING DIAGRAM
