ICE MAKER – OTHER
WATER FILL ADJUSTMENT
The size of the ice cubes depends on the amount of water which enters the mold. The cubes should be
approximately 1/2" wide, 3/4" high and 2-1/2" long.
If the water overflows in the mold, first check to see if the ice maker unit is level in the appliance. Next
ensure that the appliance is installed level in the RV.
If there is still water overflow, adjustment of the water fill screw is necessary. Locate the screw on the
ice maker assembly. Turn the screw as necessary toward the "+" or "—" side. One full turn of the screw
will make an 18cc change in the amount of water. DO NOT turn the screw more than one full turn at a
time.
If the water level is too high, it can also cause the ejector blades to become frozen in the ice. Follow the
procedures above to correct the problem.

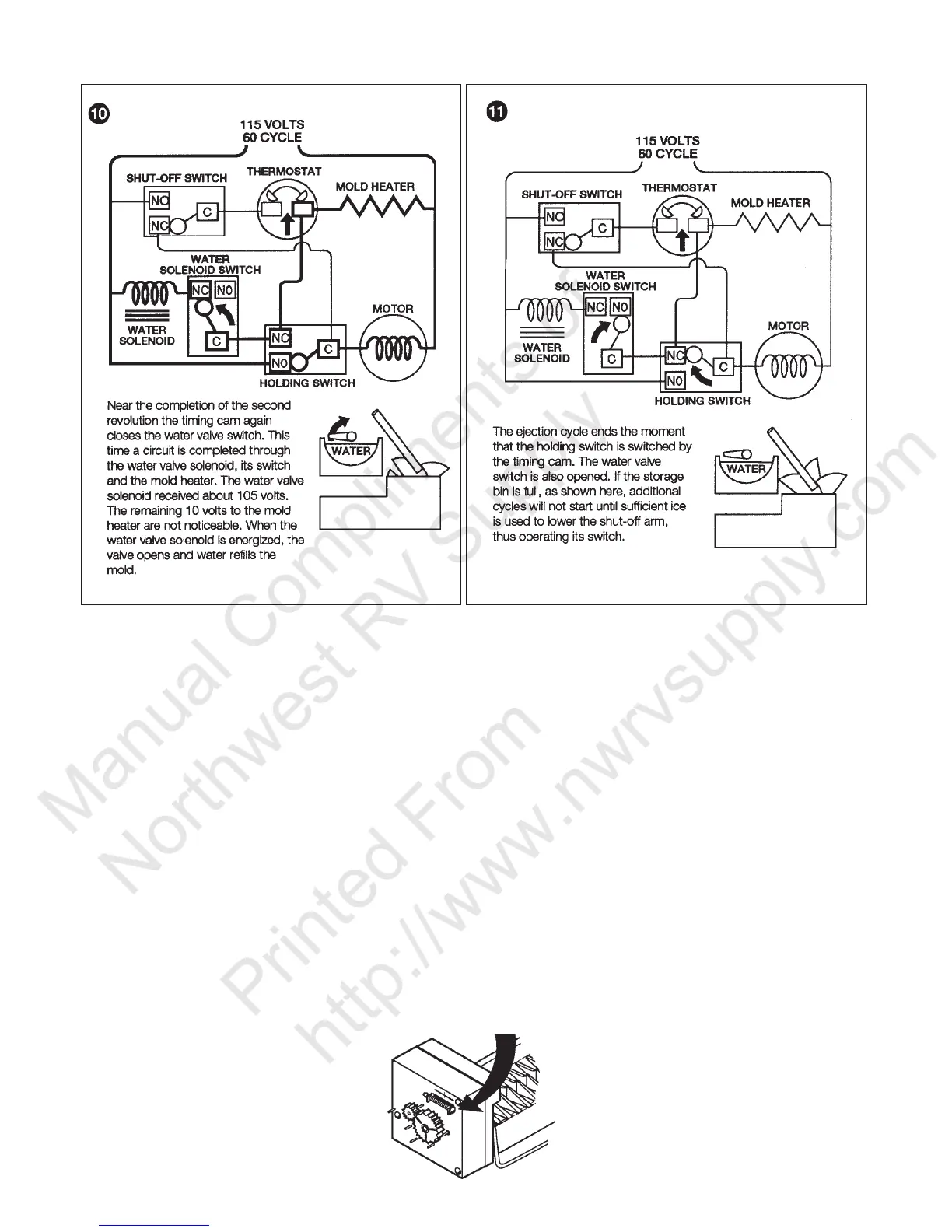

WATER FILL ADJUSTING SCREW
1 FULL TURN = 18 cc's CHANGE
