Dometic RM3862 Service Tips

20
AMES & AES
PRESSURE TEST PORT
SOLENOID VALVE
THERMOCOUPLE
ORIFICE
MANUAL GAS SHUTOFF VALVE
(Shown in "ON" position)
LP GAS REQUIREMENTS
The LP gas pressure to the refrigerator should be 11 inches water column with half of all BTU’s of the
RV turned on. With all other appliances off, the pressure to the refrigerator should not exceed 12 inches
water column. To check the gas pressure when the refrigerator is operating, there is a pressure test port
on the solenoid.

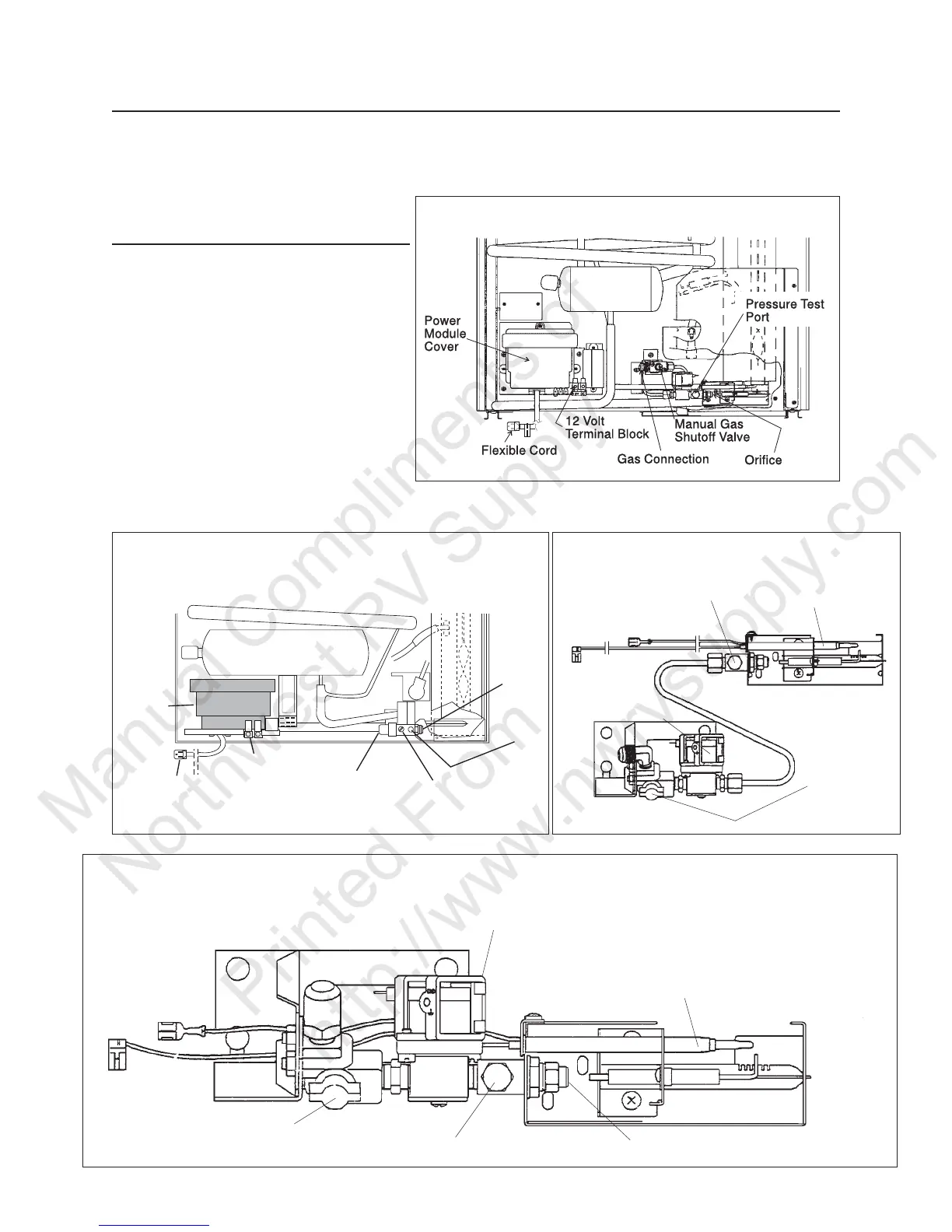

AMES & AES
LP GAS COMPONENTS
MANUAL GAS SHUTOFF VALVE
To check the shutoff valve, remove and
inspect for any obstructions.
Flexible
Cord
Flexible
Cord
P
ower
M
odule
C
over
Power
Module
Cover
12 Volt
Terminal
Block
12 Volt
Terminal
Block
Gas
Connection
Gas
Connection
Manual Gas
Shutoff Valve
Manual Gas
Shutoff Valve
Orific
eOrifice
Pressu
re
Test Po
rt
Pressure
Test Port
PRESSURE TEST PORT
SILHOUETTE
THERMOCOUPLE
MANUAL
GAS
SHUTOFF
VALVE
(Shown in
"ON" posi-
tion)
