General Information L.P. Gas Water Heater
3 General Information
NOTICE: This section provides reference information
regarding the recommended installation tools and
materials, the unit components, and the model
identification associated with the different water heater
models.
I
The images used in this document are for reference
purposes only. Components and component
locations may vary according to specific product
models. Measurements may vary ±0.38 in. (10 mm).
3.1 Tools and Materials
Dometic Corporation recommends that the following
tools be used while servicing the Water Heaters.
Recommended Tools and Materials
Caulk or Butyl tape
1-1/3 in. x 1/8 in.
(3.38 cm x 0.32 cm)
No. 8 - 3/4 in.
(22.22 cm) round head
screws or equivalent
Sealant 2x2 Lumber
Scissors Leak Detection Solution
12 VDC Battery
3.2 Component Locations
This section provides the component locations for each
Water Heater model.
ee
t
qq
yy
ss
ww
r
uu
oo
aa
1@1@
ii

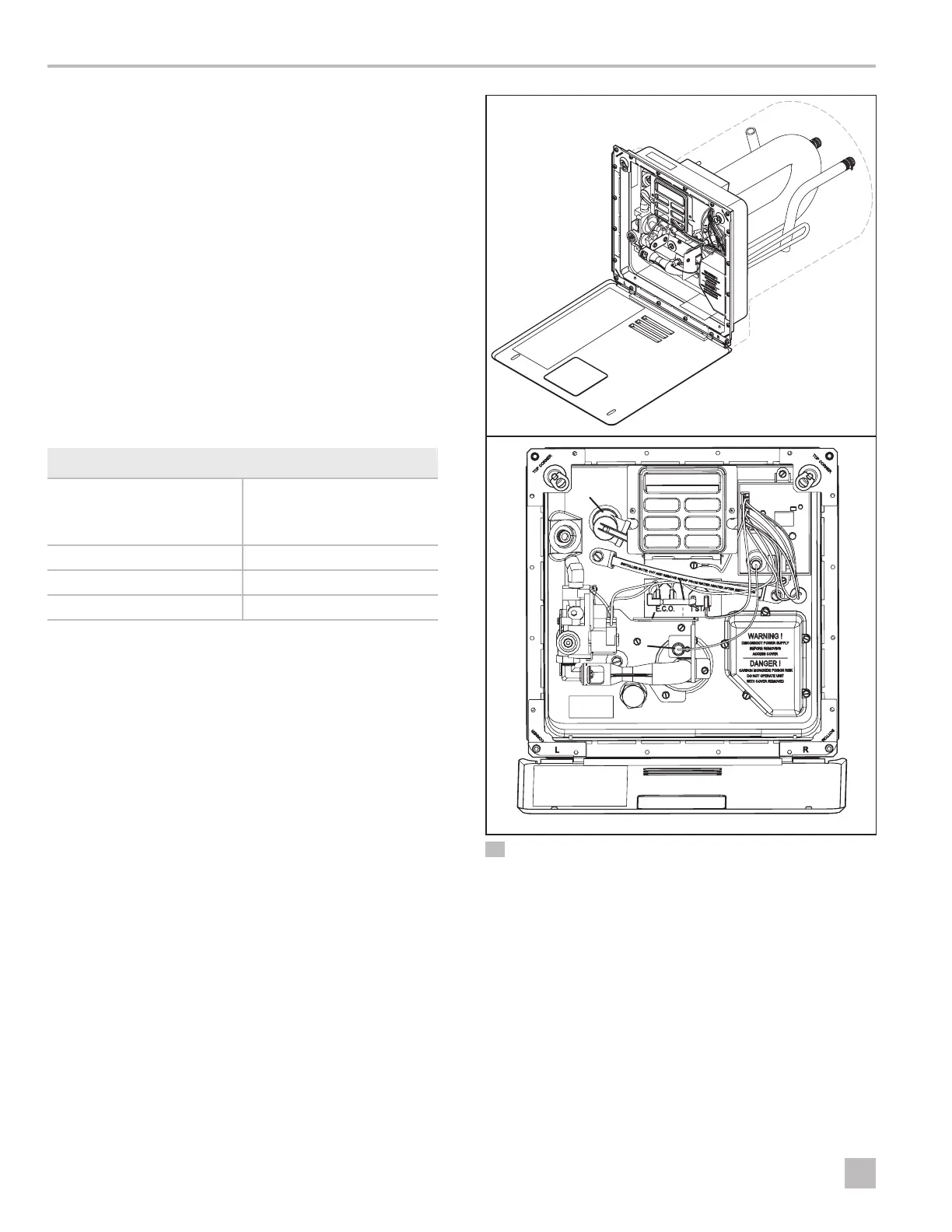

1 WH - 6GA, WH - 6GEA, and WH - 9GEA Component Locations
q
Access Door
u
Electrode
w
Water Heater Tank
i
E.C.O./Thermostat
e
Flue Assembly
o
Thermal Cut-off
r
Hot Water Outlet
a
P/T Relief Valve
t
Cold Water Inlet
s
DSI Control Board
y
Gas Valve
1@
Electric Junction Box/Element
Access Cover
(this cover must be sealed)
