Overview

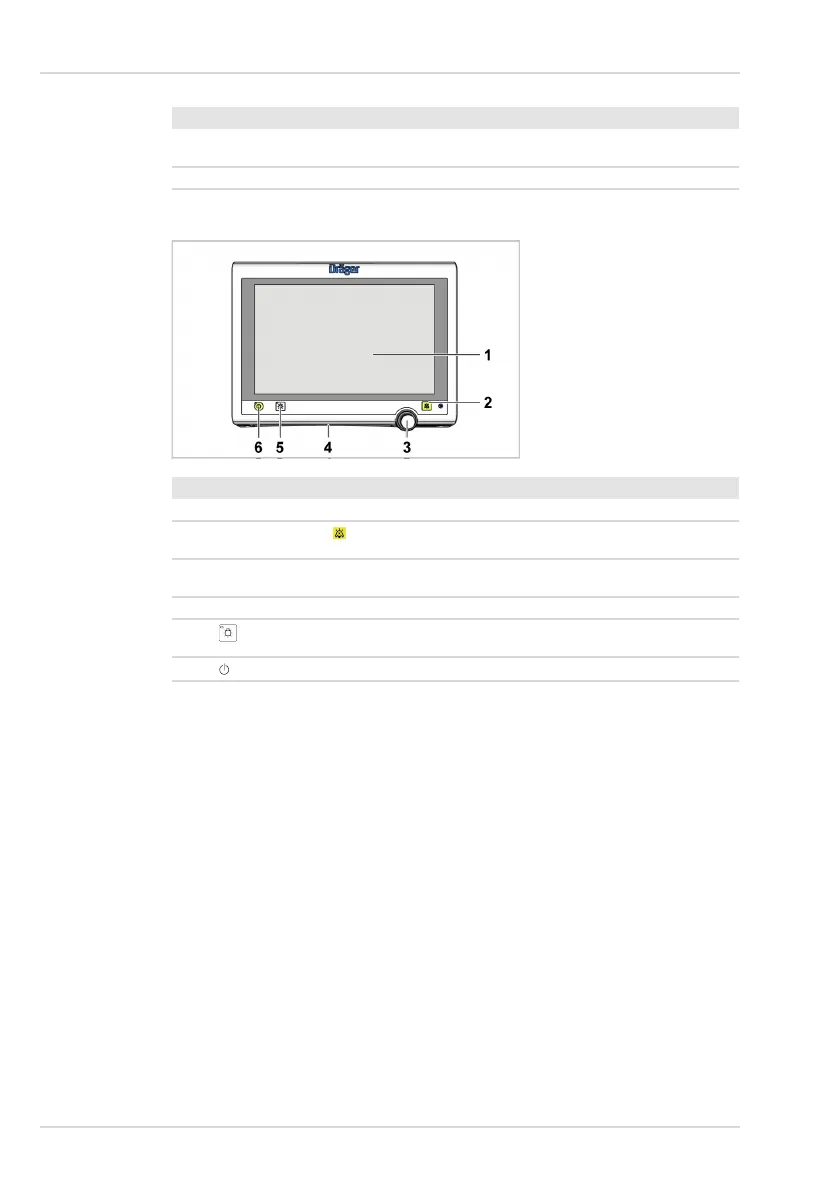

1.1.2 Screen
11 Gas mixing unit Produces a gas mixture from the selected gases
(e.g., O
2 and Air).
12 Rail Used for fastening additional components.
No. Designation Description
36441
No. Designation Description
1 Touchscreen Calls up functions or dialogs when touched.
2
Alarm silence key
Suppresses the alarm tones of all active alarms
for 2 minutes.
3 Rotary knob Used for selecting, adjusting, and confirming
settings. Lights up in color in certain situations.
4 Working light Illuminates the work surface.
5
key
Turns the working light on or off. Dims the illumi-
nance in 3 steps (dark, medium, and bright).
6
key
Turns the device on or off.

Dräger Atlan Specifications

General

Manufacturer	Dräger
Model	Atlan
Type	Anesthesia Workstation
Power Supply	100-240 VAC, 50/60 Hz
Display	Touchscreen
Ventilation Modes	Pressure Support
Gas Supply	O2, Air, N2O
Patient Monitoring	Airway Pressure
Safety Features	O2 Failure Alarm
Tidal Volume Range	20 to 1500 ml
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
Gas Delivery	Electronic
Connectivity	Ethernet
Weight	Approx. 200 kg
