Operation
Dräger Polytron 5200 / Dräger Polytron 53X0 11
3.3.4 Attaching main instrument to e-box

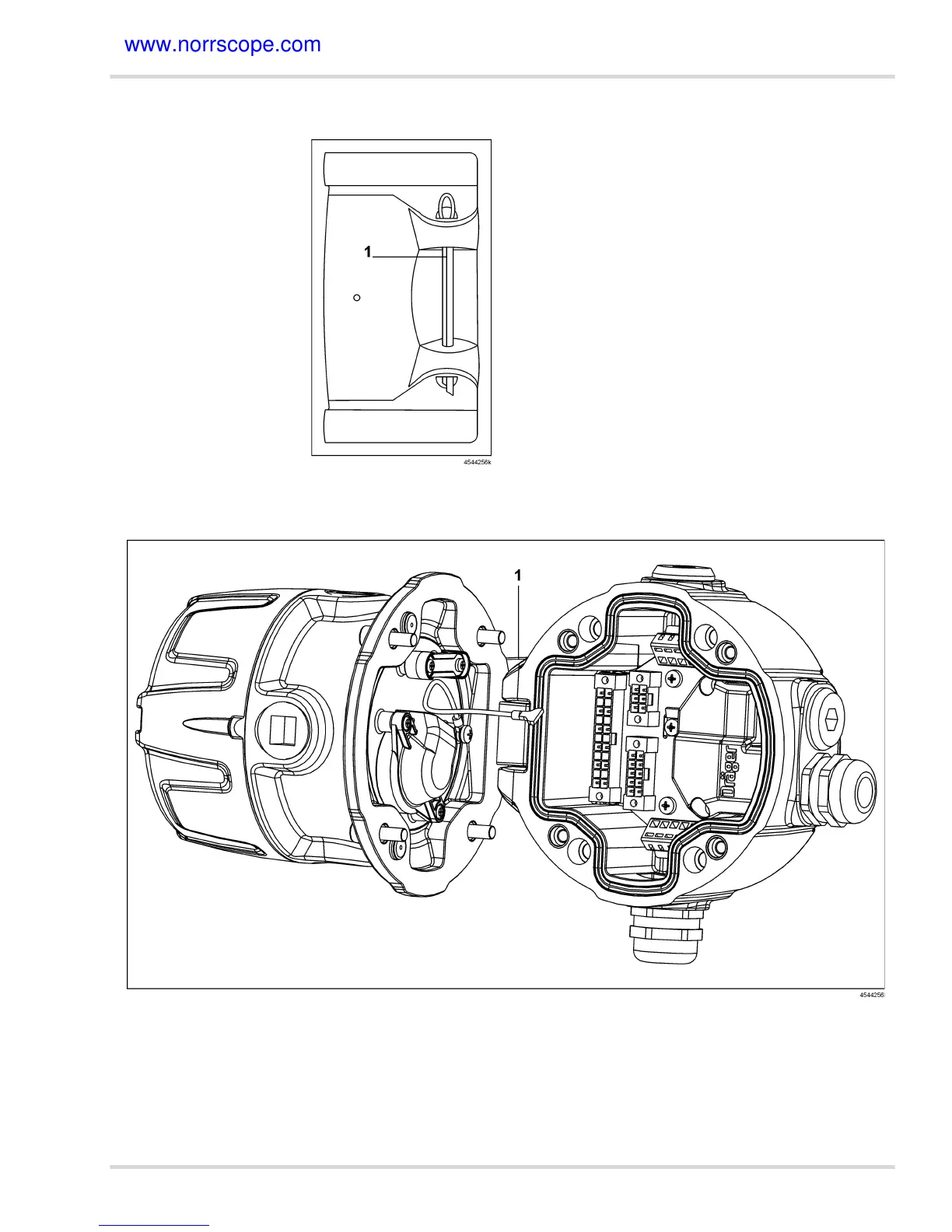

To attach the main instru-
ment to the e-box, pull the
hinge pin out of the e-box.
Align the boss of the instru-
ment with the boss of the
e-box and push the hinge
pin back in. The instrument
is now supported and can
swivel freely to give access
to the wiring.
1 Hinge pin
