Instrument panel (fig. 4.1 and fig. 4.2)
1) High beam light (blue).
Comes on when high beam is on.
2) Indicators repeater light (green).
Comes on and flashes when a turn indicator is on.
3) Fuel warning light (yellow).
Comes on when there are about 3 litres of fuel left in the
tank.
4) Neutral light N (green).
Comes on when in neutral position.
5) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and normally
goes out a few seconds after engine starts.
It may shortly come on when the engine is hot, however, it
should go out as the engine revs up.
Important
If this light stays on, stop the engine or it may damage.
6) Amber light
Comes on and flashes when the motorcycle is parked
(Immobilizer on), it is also used for immobilizer diagnosis.
Note
When the Immobilizer is on, this light flashes for 24
hours and then goes out. The Immobilizer is still operating.
1
4 2
5
3
6

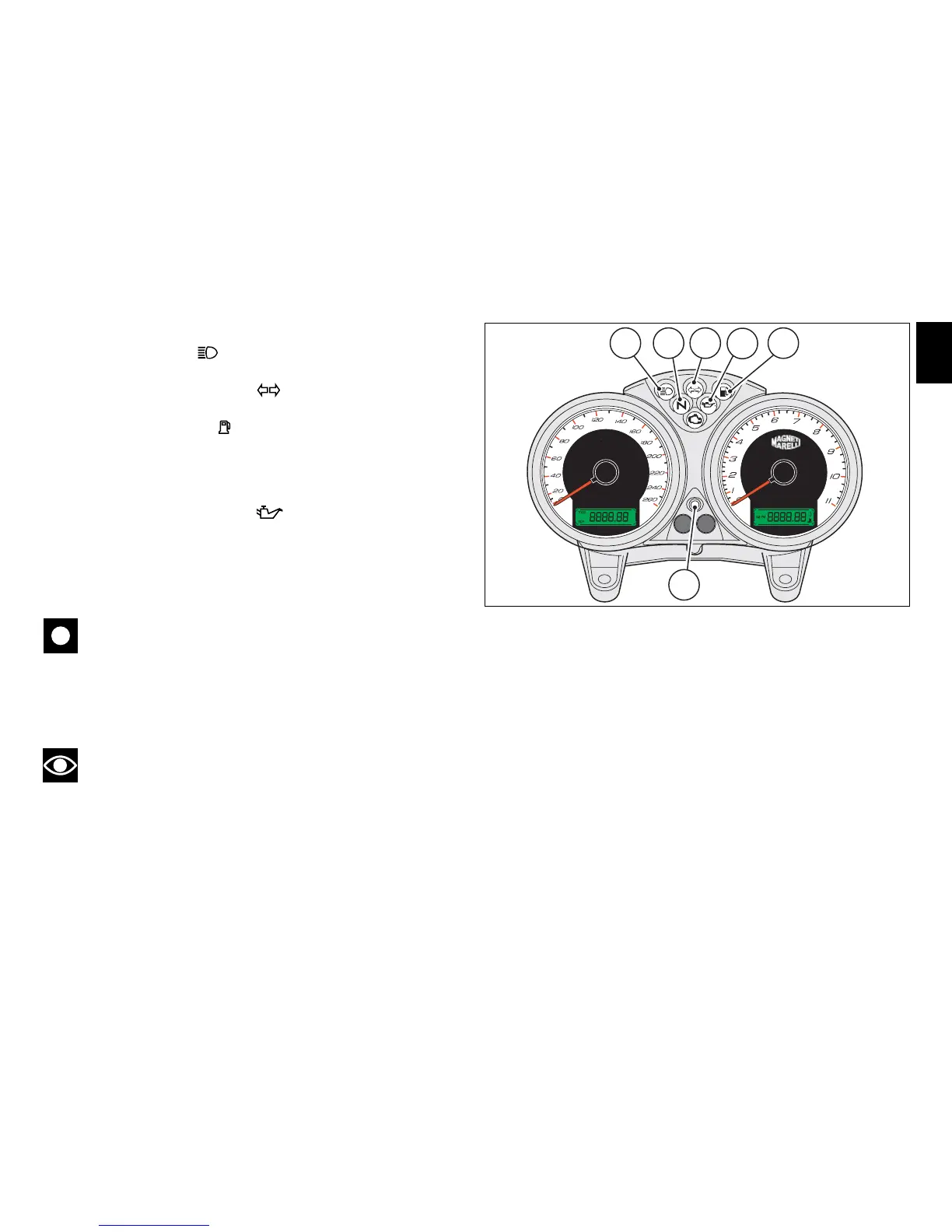

fig. 4.1
