~45~

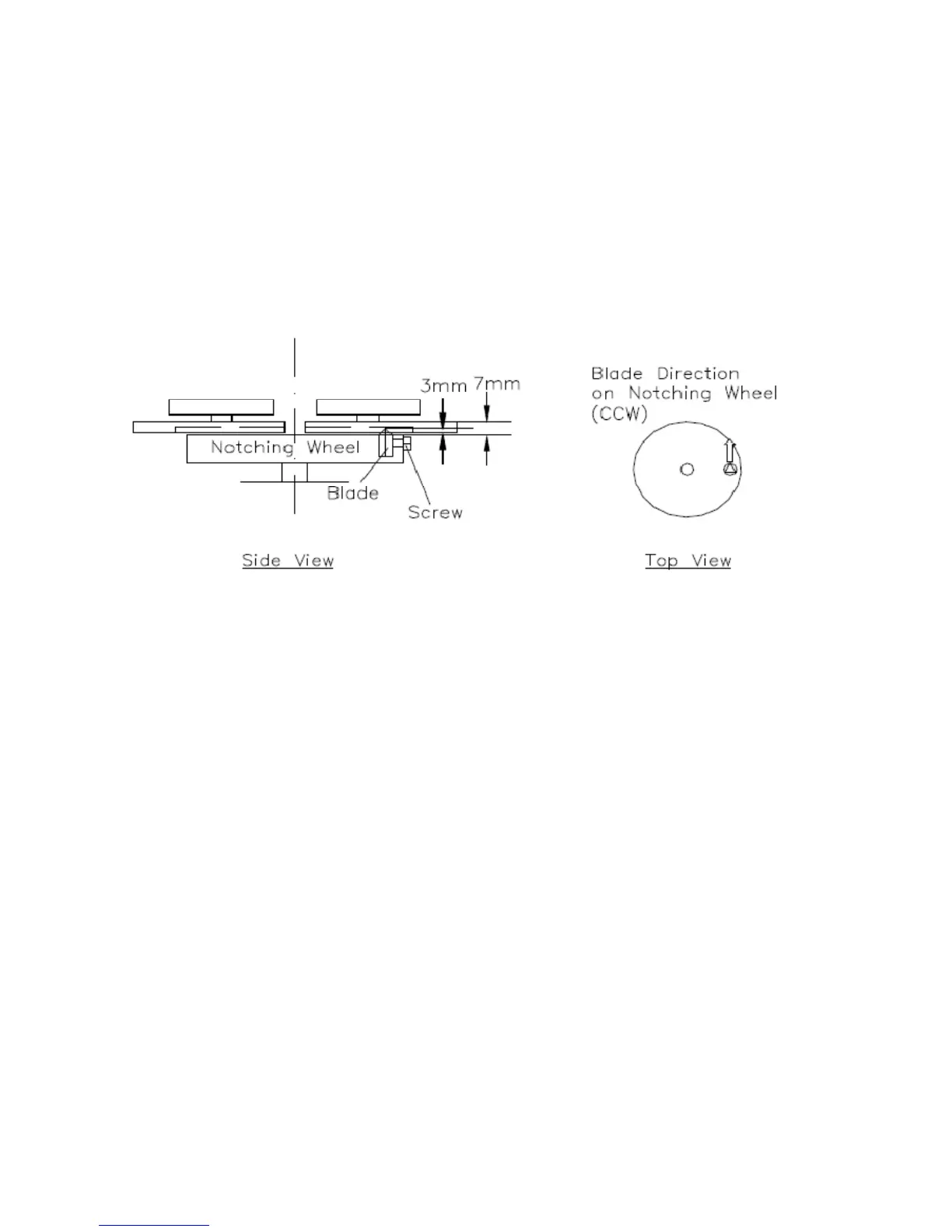

Changing the
bla
de
1.
Open
one
side
of
the
notching
station
2.
Loosen
the blade
screw
and remove
the old
blade
3.
Install
the
new
blade
as
shown,
then
set the
height
of
the
blade
about
3mm
above th
e
surface
of
notching
wheel
4.
T
ighten
the
blade
screw
44
46
