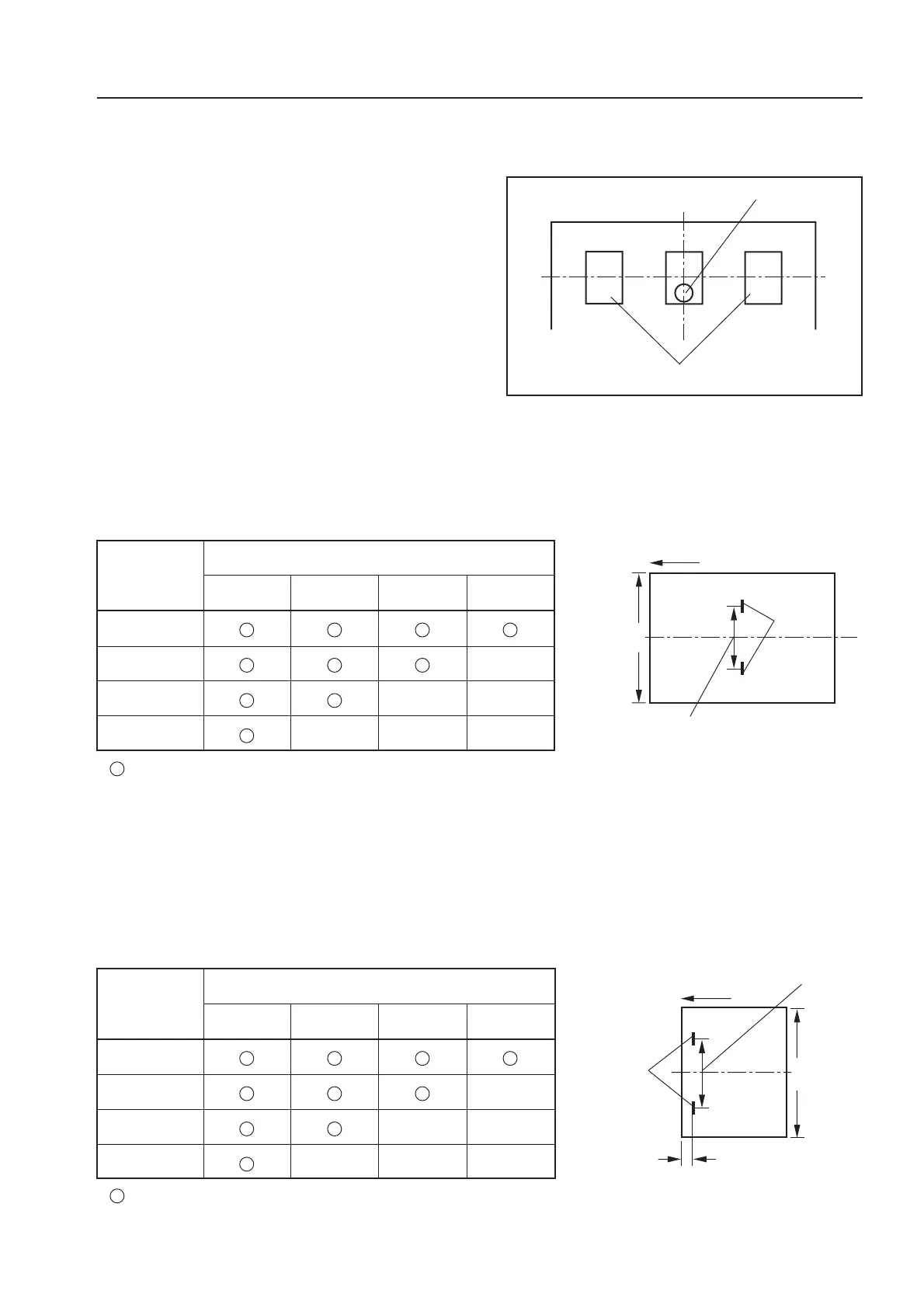

4. BINDING
<Setting Saddle-Stapling>
• The position to be stapled is determined
after setting the center of the paper on the
unit.
: Two staplers can be set.
Above 292
Above 252
Above 232
Above 200
Settable Staple Pitch (mm)
Paper Width
(mm)
108 140 160 200
<Setting Side-Stapling>
• Staples within 6mm from the edge of the
paper.
• The position to be stapled is determined
after setting the center of the paper on the
unit.
Above 310
Above 270
Above 250
Above 210
Settable Staple Pitch (mm)
Paper Width
(mm)
108 140 160 200
Paper width
Staples
: Two staplers can be set.
If the ball unit or side jogger must be
removed temporarily to move the
clincher, ensure that each part is fixed
properly after setting.
5
Center
Ball unit
Staplers
Direction
moved in
Staple pitch
6 mm
Staples
Staple pitch
Direction
moved in
Paper width
