- 11 -

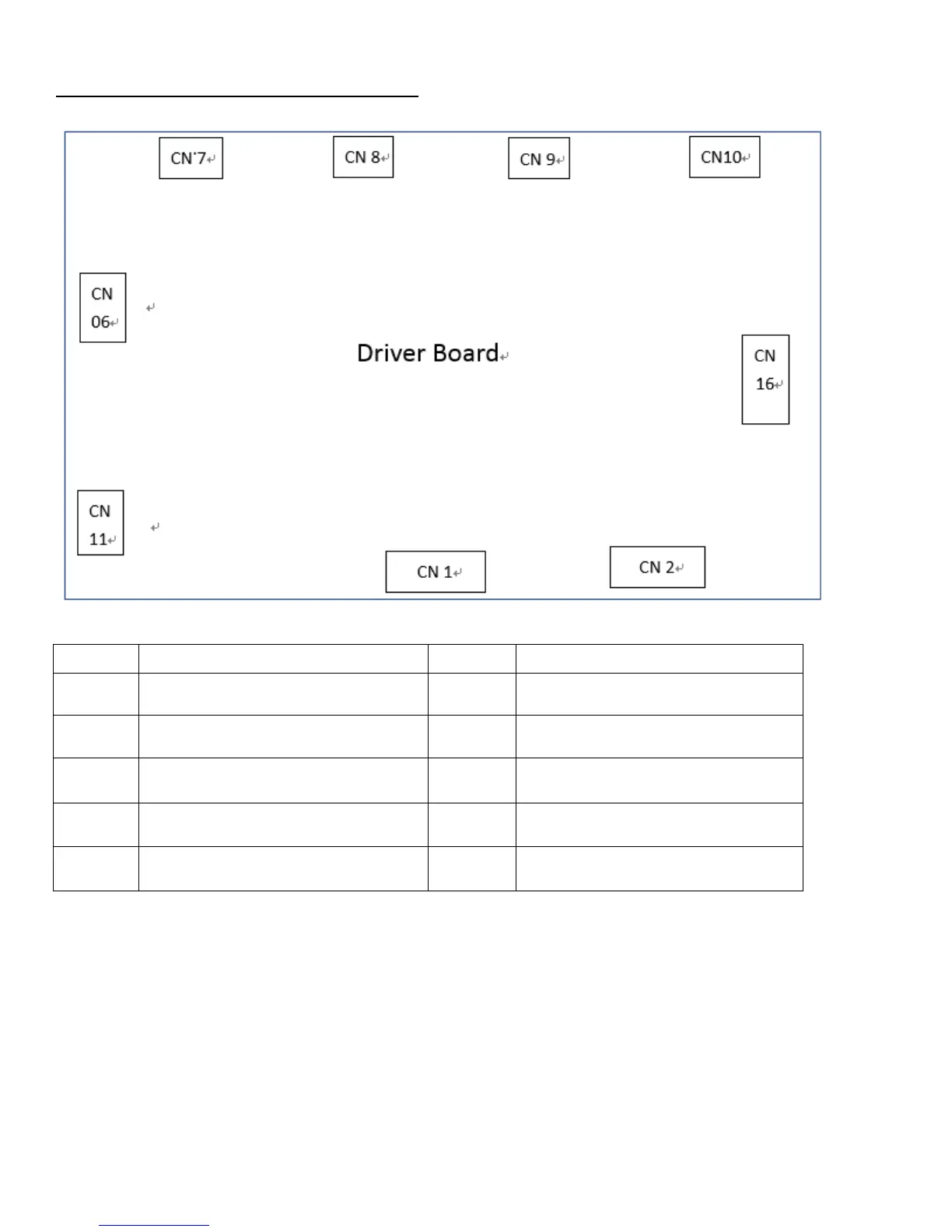

Electric Connections – Driver Board
Connector
Connects to Connector
Connects to
CN1 16-pin, Main Board CN2 CN9 4-pin, Die Module Motor
CN2 10-pin, Main Board CN6 CN10 4-pin, Cutter Motor
CN6 4-pin, 24V DC Power Supply CN11 16-pin, LCD Display
CN7 4-pin, Feed Motor CN16 10-pin, Control Panel Board
CN8 4-pin, Transport Motor
